Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS1201A-22
- Phase:
- SINGLE PHASE
- Protection:
- Short Circuit
- Weight:
- ≤153g, ≤153g
- Output Voltage:
- 12V/1A
- Type:
- On-line, 12v 1a mini ups
- Application:
- Security / Monitoring / Alarm
- Input:
- 12V/1A
- Output:
- 12V/1A
- Working temperature:
- -20°C~65°C
- Size:
- 111*60*26mm
- UPS IN jack:
- 5.5*2.1mm
- OUT connector:
- 5.5*2.5mm
- Battery capacity:
- 7.4V/2200mAh 16.28wh
- Color:
- black
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 17X12X10 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- Standard carton packaging
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 2 3 - 100 101 - 500 >500 Est. Time(days) 3 5 10 To be negotiated

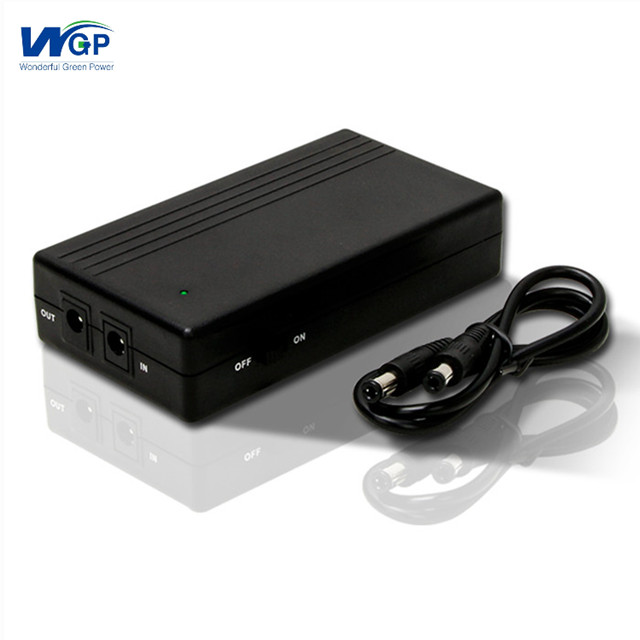

Stable power supply mini ups 12 volt for LED strip & dc 12v output ups
Mini UPS uninterruptible power supply is a standby energy storage power supply. Used safe and environmental lithium cells, credible and stable PCB, trickle/constant-current/ constant-voltage lithium battery charging BMS.
Created by high performance and efficiency DC-DC, boosting and switching circuit. This mini UPS with perfect over-charged, over-discharged, over-current and short-circuit protection.
Power switch | control the UPS ON/OFF |
Input port | connect suitable adaptor |
Output port | connect the DC cable to your device |
LED indicator | Red:need charging or in the charging Green:normal working or fully charged |
| Model | UPS1201A-22 |
| Type | 12V/1A mini ups |
| Input | 12V 1000mA |
| Output | 12V 1000mA |
| Working temperature | -20°C~65°C |
| Weight | ≤153g |
| Size | 111*60*26mm |
| UPS IN jack | 5.5*2.1mm,OUT:5.5*2.5mm |
| DC cable | 5.5*2.5mm~5.5*2.1mm |
| Battery capacity | 7.4V/2200mAh 16.28wh |
1. Fully charged the UPS before first time use(do not overcharged)
2. Connect a suitable DC 5V adaptor to the UPS
3. Join the DC cable between the UPS and your devices
4. Turn on the switch(see below)
5. The green LED light indicates that the UPS is fully charged
6. The red LED light indicates that the UPS is in low battery state.
Notice:turn off the switch and remove the external device when not use.keep the UPS in a cool dry place for long time storage.
Packing detail:
1,the mini UPS
2,DC cable
3,manual
Packing include | 1,the mini ups 2,DC cable 3,Manual |
Packing method | Carton packing Size:42x23x24cm Qty:44pcs Weight:8.9kg |
Delivery time | Sample order:2~3 working days Bulk order:10~15 days |
Shenzhen Richroc Electronic Co.,Ltd.is a professional manufacturer of mini UPS, solar power systems and temperature control battery pack.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,PDA,MP3/4/5,digital camera,LED lamp, DVD/CD player, ADSL modem and router etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed forevery month.We have our own brand name WGP.OEM and ODM orders are welcomed. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast shipping time are the reasons to choose us.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Notice:More questions,please contact with me right now,we will choose the right model to you!
