Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS1201A2-16281
- Phase:
- SINGLE PHASE
- Protection:
- Overcurrent
- Weight:
- ≤153g
- Output Voltage:
- 12V 1000mA
- Type:
- On-line, 12v ups power supply
- Application:
- Security / Monitoring / Alarm
- Input:
- 12V 1000mA
- Output:
- 12V 1000mA
- Working temperature:
- -20°C~65°C
- Net Weight:
- ≤153g
- Size:
- 111x60x26mm
- UPS IN jack:
- 5.5*2.1mm
- DC cable:
- 5.5*2.5mm~5.5*2.1mm
- Battery capacity:
- 7.4V-2200mAh/16.28wh
- Product name:
- 12V 1A mini ups
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 17X12X10 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- 44pcs/CTN 8.90kg/CTN 42*23*24CM

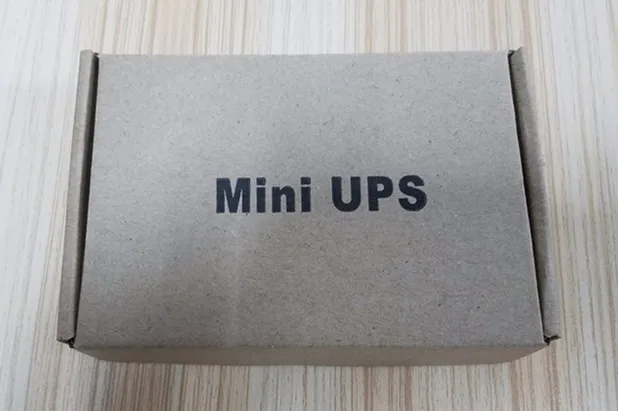

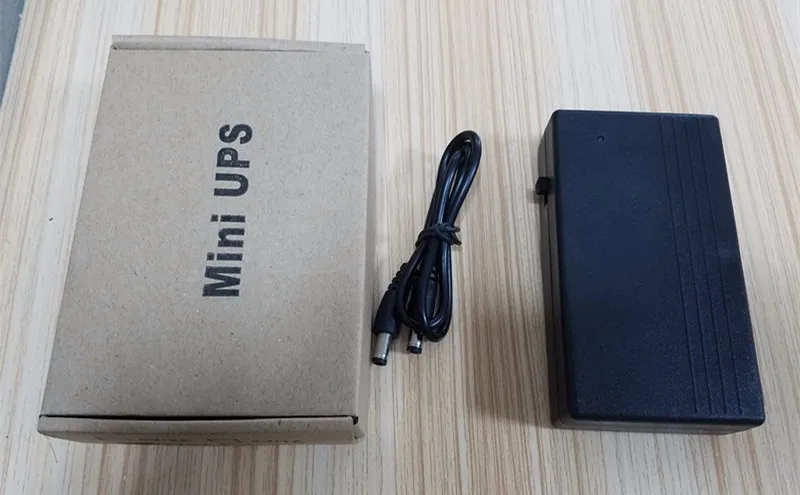

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 2 3 - 100 101 - 500 >500 Est. Time(days) 3 5 15 To be negotiated

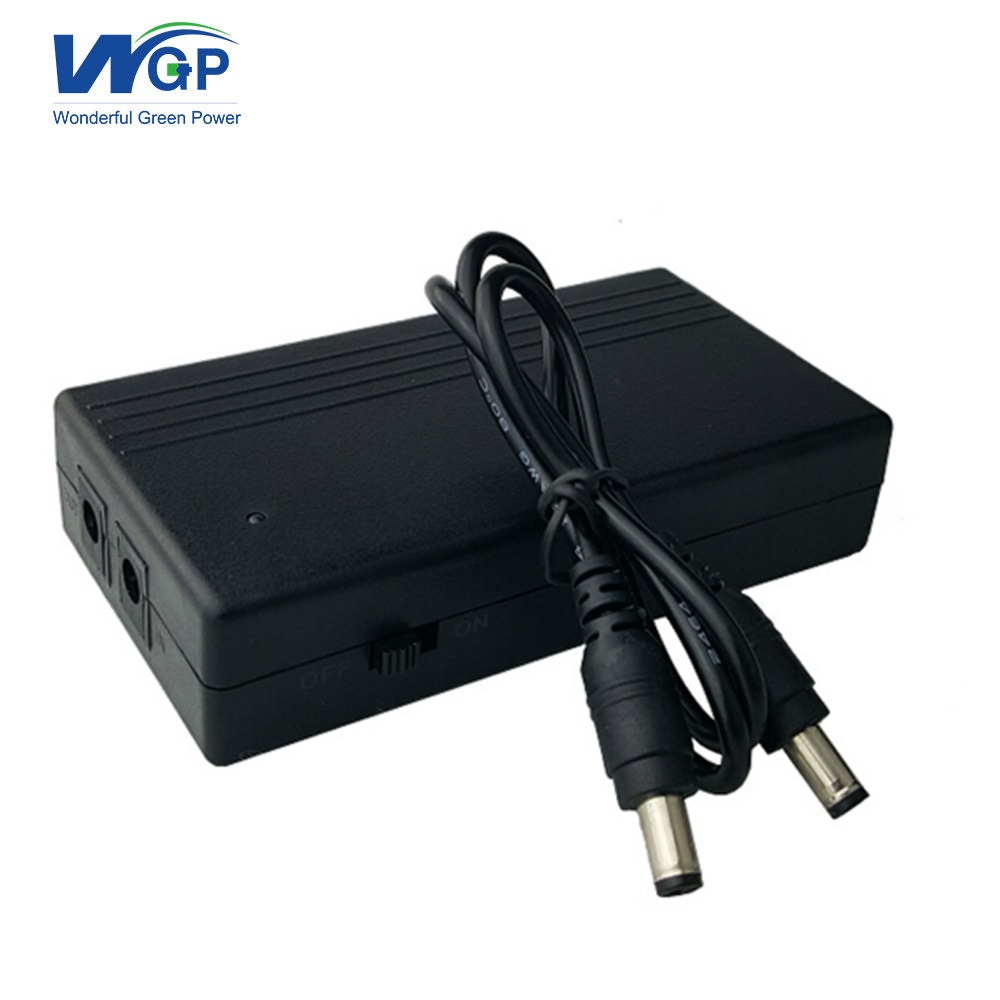

Homage top10 DC mini ups 12V 18650 li ion power battery ups price in Pakistan,portable 12v ADSL modem wifi router use online ups
The mini UPS uninterruptible power supply is an online or standby power system.
It used safe and environmetal lithium ion battery cells;
credible and stable PCB board;
constand voltage and current lithium battery charging management system(BMS);
high-performance and high-efficiency DC to DC boost converter circuit.
It also has perfect over-charge,over-discharge protection.
The mini UPS power supply is widely used for security cctv camerasafety monitoring systemdoor control system ime attendance systemfire alarm system and critical network system etc.
Power switch | control the UPS ON/OFF |
Input port | connect suitable adaptor |
Output port | connect the DC cable to your device |
LED indicator | Red: need charging or in the charging Green: normal working or fully charged |
Model No. | UPS1201A2-16281 |
Type | 12V 1A mini UPS |
Input | 12V 1000mA |
Output | 12V 1000mA |
Working temperature | -20℃~65℃ |
Weight | 153g |
Size | 111*60*26mm |
Capacity | 7.4V/2200mAh-16.28wh |
Usage | Supporting online working device or providing standby backup power |
Shenzhen Richroc Electronic Co.,Ltd.is a professional manufacturer of mini UPS, solar power systems and temperature control battery pack.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,PDA,MP3/4/5,digital camera,LED lamp, DVD/CD player, ADSL modem and router etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed forevery month.We have our own brand name WGP.OEM and ODM orders are welcomed. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast shipping time are the reasons to choose us.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
