Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- V1201W-16281
- Phase:
- Single Phase
- Protection:
- Short Circuit
- Weight:
- 150g, 150g
- Output Voltage:
- 12V
- Type:
- On-line
- Application:
- Security / Monitoring / Alarm
- Product name:

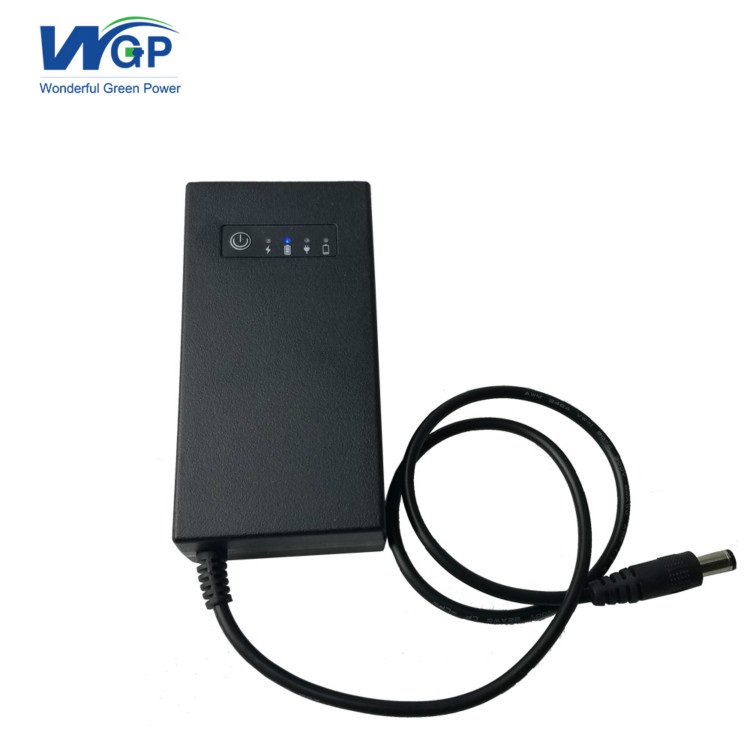

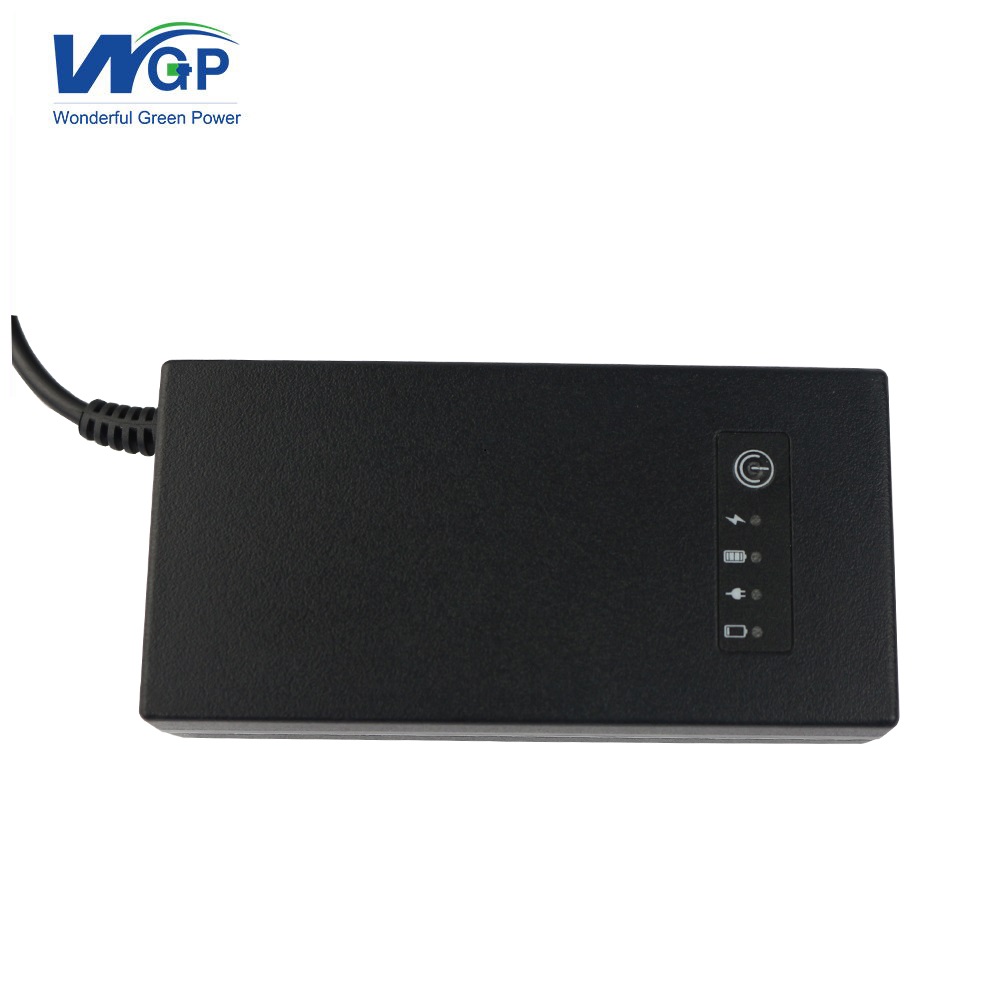

- rechargeable 12v 1a ups portable mini ups
- Battery Type:
- 18650 Lithium Battery
- Capacity:
- 7.4V-2200mAh/16.28
- Input:
- 12V DC@ 1A
- Output:
- 12V DC@ 1A
- Discharge time:
- 2-8 hours
- Size:
- 100*50*24mm
- Certification:
- CE/ROSH/FCC/PSE
- Remark:
- Contact me for more detail
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 12X7X4 cm
- Single gross weight:
- 0.2 kg
- Package Type:
- 44PCS/CTN 8.90KG/CTN 42*23*24CM
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 2 3 - 500 >500 Est. Time(days) 3 15 To be negotiated
2018 newest mini ups with high performance rechargeable portable 7.4V 2200mAh 12v 1a ups
- Rated Capacity: 14.8wh/16.28wh/19.24wh
- Input Voltage: 12V±5%
- Input Current: ≤1000mA
- Output Voltage: 12V±5%
- Output Current: ≤1000mA
- Working Temperature: -20 Celsius - 65 Celsius
- Net Weight: 150g
- Volume: 100*50*24mm
- Input Jack:5.5*2.1mm female,output jack:5.5*2.1mm male
- DC cable:5.5*2.5mm-5.5*2.1mm
- Remind:DC size can be customized
Popular Models
Item | Capacity | Input | Output | SIze |
| 12V@1A | 14.8wh/2000mAh*2pcs | DC 12V 1A, DC 5.5*2.1mm,female | DC 12V 1A,DC 5.5*2.1mm | 100*50*24mm |
| 12V@1A | 16.28wh/2200mAh*2pcs | DC 12V 1A, DC 5.5*2.1mm,female | DC 12V 1A, DC 5.5*2.1mm | 100*50*24mm |
| 12V@1A | 19.24wh/2600mAh*2pcs | DC 12V 1A, DC 5.5*2.1mm,female | DC 12V 1A, DC 5.5*2.1mm | 100*50*24mm |
Remark:
1.We also have 12V/2A,12V3A,9V/1A,9V/2A,9V/3A.Please Click Here for more information.
2.We"re happy to assist you to get the most suitable model,welcome your iqnuiry.
3.DC size can be customized
Packing List
UPS device*1
EN user manual*1
Neutral box*1
Packing Method
| Qty/ctn | G.W | Carton size |
| 44pcs/ctn | 9kg/ctn | 42*23*24cm |
| 44pcs/ctn | 10kg/ctn | 42*23*24cm |
| 30pcs/ctn | 9.85kg/ctn | 42*23*24cm |
| 23pcs/ctn | 9.5kg/ctn | 42*23*24cm |
Delivery time
Sample:2-3days
Bulk order:20-25days
Special service
Sample order can offer free laser logo service
Shenzhen Richroc Electronic Co.,Ltd.is a professional manufacturer of mini UPS, solar power systems and temperature control battery pack.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,PDA,MP3/4/5,digital camera,LED lamp, DVD/CD player, ADSL modem and router etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed forevery month.We have our own brand name WGP.OEM and ODM orders are welcomed. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast shipping time are the reasons to choose us.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Q:Do you have any other capacity?
A:Yes,please contact with me for more details.
