Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- V1201W-02
- Phase:
- Single Phase
- Protection:
- Short Circuit
- Weight:
- 150g, 150g
- Output Voltage:
- 12V
- Type:
- On-line

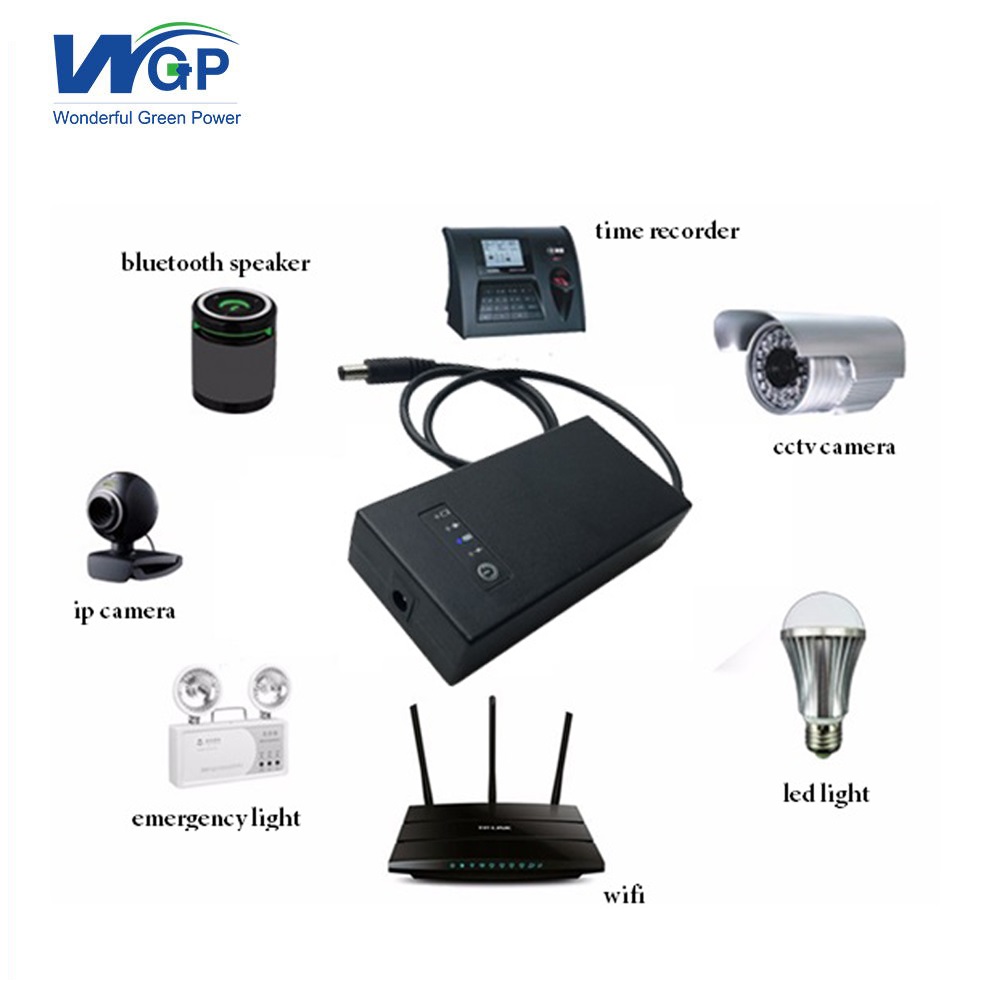

- Application:
- Security / Monitoring / Alarm
- Battery Type:
- 18650 Lithium Battery
- Input:
- 12V DC@ 1A
- Output:
- 12V DC @ 1A
- Size:
- 100*50*24mm
- Discharge time:
- 2-8hours
- Product name:
- WGP uninterruptible power supplies mini ups online 12v small size ups
- Certification:
- CE/ROSH/FCC/PSE
- Capacity:
- 16.28wh/2200mAh
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 17X12X10 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- 1.44pcs/ctn 2.carton size:42*23*24cm 3.weight:9kgs
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 2 3 - 100 101 - 500 >500 Est. Time(days) 3 5 15 To be negotiated

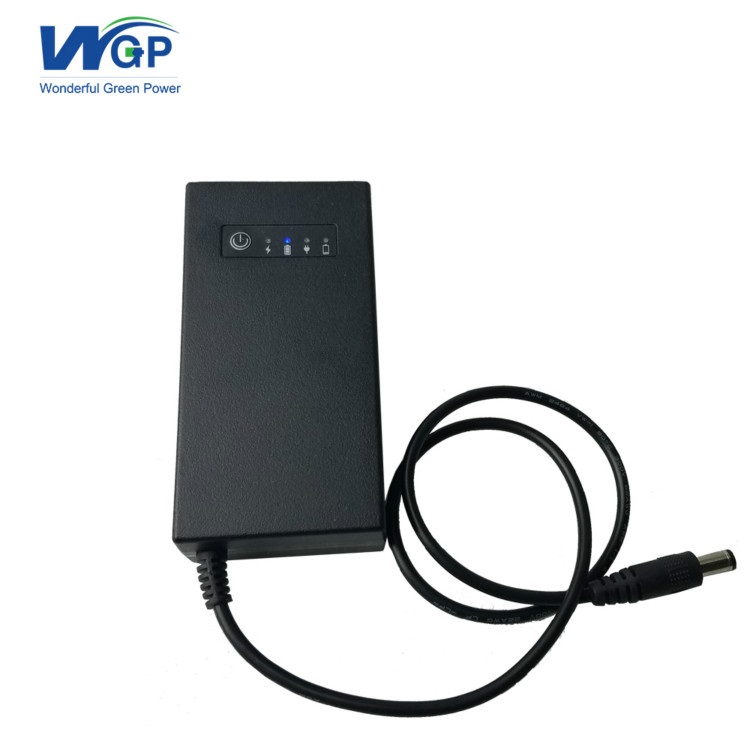

WGP uninterruptible power supplies mini ups online 12v small size ups
- Rated Capacity: 16.28wh
- Input Voltage: 12V±5%
- Input Current: ≤1000mA
- Output Voltage: 12V±5%
- Output Current: ≤1000mA
- Working Temperature: -20 Celsius - 65 Celsius
- Net Weight: 150g
- Volume: 100*50*24mm
- Input Jack:5.5*2.1mm female,output jack:5.5*2.1mm male
- Remind:DC size can be customized
Popular Models
Item | Capacity | Input | Output | SIze |
| 12V@1A | 14.8wh/2000mAh*2pcs | DC 12V 1A, DC 5.5*2.1mm,female | DC 12V 1A,DC 5.5*2.1mm | 100*50*24mm |
| 12V@1A | 16.28wh/2200mAh*2pcs | DC 12V 1A, DC 5.5*2.1mm,female | DC 12V 1A, DC 5.5*2.1mm | 100*50*24mm |
| 12V@1A | 19.24wh/2600mAh*2pcs | DC 12V 1A, DC 5.5*2.1mm,female | DC 12V 1A, DC 5.5*2.1mm | 100*50*24mm |
Remark:
1.We also have 12V/2A,12V3A,9V/1A,9V/2A,9V/3A.Please Click Here for more information.
2.We"re happy to assist you to get the most suitable model,welcome your iqnuiry.
3.DC size can be customized
Packing List
UPS device*1
EN user manual*1
Neutral box*1
Packing Method
| Qty/ctn | G.W | Carton size |
| 44pcs/ctn | 9kg/ctn | 42*23*24cm |
Delivery time
Sample:2-3days
Bulk order:20-25days
Special service
Sample order can offer free laser logo service
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Q:Do you have any other capacity?
A:Yes,please contact with me for more details.
