- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- V1201W-14803
- Phase:
- Single Phase
- Protection:
- Short Circuit, Overvoltage/Overcurrent/Lightning
- Weight:
- 150g, 150g
- Output Voltage:
- 12V
- Type:
- On-line
- Application:
- Security / Monitoring / Alarm
- Product name:
- 2018 newest ups for router wifi router ups
- Capacity:
- 7.4V/14.8WH-2000mAh
- Battery Type:
- 18650 Lithium Battery
- Input:
- 12V DC@ 1A
- Output:
- 12V DC @ 1A
- Discharge time:
- 1-10hours
- Size:
- 100*50*24mm
- Certification:
- CE/ROSH/FCC/PSE
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 22X21X17 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- 44PCS/CTN 8.9KG/CTN 42*23*24CM

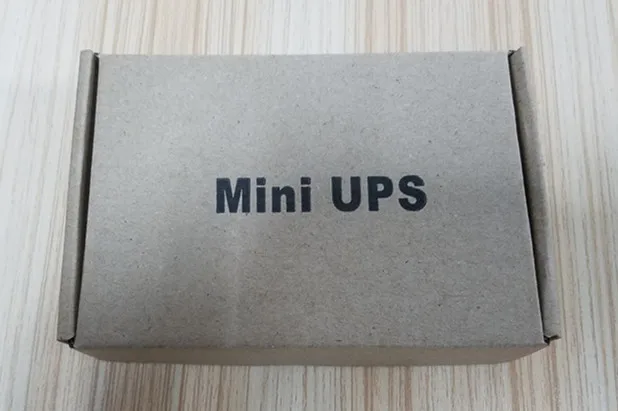

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 2 3 - 500 >500 Est. Time(days) 3 15 To be negotiated

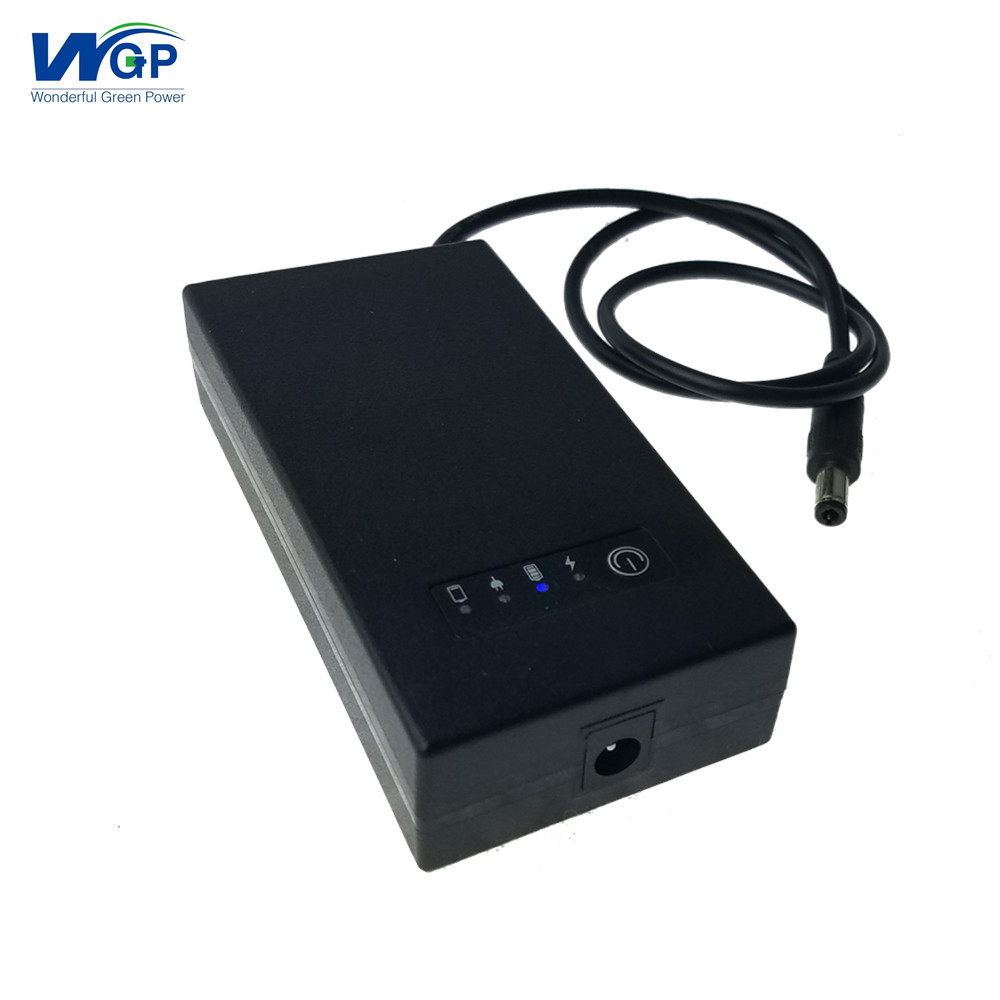

2018 newest mini ups small size ups 12V for wifi router modem
- Rated Capacity: 14.8wh/16.28wh/19.24wh
- Input Voltage: 12V±5%
- Input Current: ≤1000mA
- Output Voltage: 12V±5%
- Output Current: ≤1000mA
- Working Temperature: -20 Celsius - 65 Celsius
- Net Weight: 150g
- Volume: 100*50*24mm
- Input Jack:5.5*2.1mm female,output jack:5.5*2.1mm male
- DC cable:5.5*2.5mm-5.5*2.1mm
- Remind:DC size can be customized
Popular Models
Item | Capacity | Input | Output | SIze |
| 12V@1A | 14.8wh/2000mAh*2pcs | DC 12V 1A, DC 5.5*2.1mm,female | DC 12V 1A,DC 5.5*2.1mm | 100*50*24mm |
| 12V@1A | 16.28wh/2200mAh*2pcs | DC 12V 1A, DC 5.5*2.1mm,female | DC 12V 1A, DC 5.5*2.1mm | 100*50*24mm |
| 12V@1A | 19.24wh/2600mAh*2pcs | DC 12V 1A, DC 5.5*2.1mm,female | DC 12V 1A, DC 5.5*2.1mm | 100*50*24mm |
Remark:
1.We also have 12V/2A,12V3A,9V/1A,9V/2A,9V/3A.Please contact me for more information.
2.We"re happy to assist you to get the most suitable model,welcome your iqnuiry.
3.DC size can be customized
More models for different device here:
| Description | Basic Specs | Photo | Get price at below link |
| Classic 5V/9V/12V UPS | 1. Input: 5V /9V/12V 2. Output: 5V /9V/12V 3. Capacity:14.8wh~57.72wh 4. Size: 111x60x26mm 111x60x43mm | | GO |
| Multi-output ups | 1. Input: 12V 1000mA 2. Output: 5V/9V/12V 3. Capacity:32.56wh~38.48wh 4. Size: 116x73x24mm | | GO |
Smart 12V UPS | 1. Input: 12V 3000mA | | GO |
Integrated 24V/48V UPS | 1. Input: AC 90V~250V 2. Output: 24V/48V 3. Capacity:22.2wh~28.86wh 4. Size: 140x60x35mm | | GO |
Packing List
UPS device*1
EN user manual*1
Neutral box*1
Packing Method
| Qty/ctn | G.W | Carton size |
| 44pcs/ctn | 9kg/ctn | 42*23*24cm |
| 44pcs/ctn | 10kg/ctn | 42*23*24cm |
| 30pcs/ctn | 9.85kg/ctn | 42*23*24cm |
| 23pcs/ctn | 9.5kg/ctn | 42*23*24cm |
Special service
Sample order can offer free laser logo service
NO. | Item | Details |
1 | Accept sample order | you can place sample order even 1set to test our products and services. |
2 | Low MOQ | We are a manufacturer,not wholesaler or trading company,we can control the production.In order to support your business,we accept low MOQ as 1set. |
3 | OEM/ODM | We have our own Design Dept. and experienced engineering team,we can develop new samples according to the market change and need ,to win the market for our customer. If you are not ready for the design, our engineers will help you about it freely with their expertise. |
4 | Factory price | Factory directly sell ,price is much lower than retailer,wholesaler or agents, save you much cost! |
5 | Quality and Leadtime | 80% of employees with at least 3 years experience in production ,engineering and technology.What"s more,we have our own PCBA Dept,so we can control the qaulity of PCB part and producing process. |
6 | Warranty | 1 year warranty.If the products has function problem, after you offered evidence details to us, we will replace you new products with next order. |
7 | Exclusive | If you be our agent,we won"t sell to other buyer in your country,you are the only occupant of the market! |
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
