Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS502A2-14801
- Phase:
- Single Phase
- Protection:
- over-charged/discharged, over-current, short-circuit protection
- Weight:
- 153G
- Output Voltage:
- 5V
- Type:
- ON-LINE, mini ups 5v 2a ups battery
- Application:
- security,networking,telecommunication,minitoring,alarm
- Capacity:
- 3.7V-14.8wh/4000mAh
- Size:
- 111x60x26mm
- Input:
- 5V 2000mA
- Output:
- 5.2V±5% 2000mA
- Material:
- ABS
- Battery Type:
- 18650 lithium cells
- Backup time:
- 2~8 hours
- Net Weight:
- ≤153g
- Product name:
- IP camera use ups battery backup 5V 2A ups power supply mini ups 5v
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 22X21X14 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- Brown color standard box

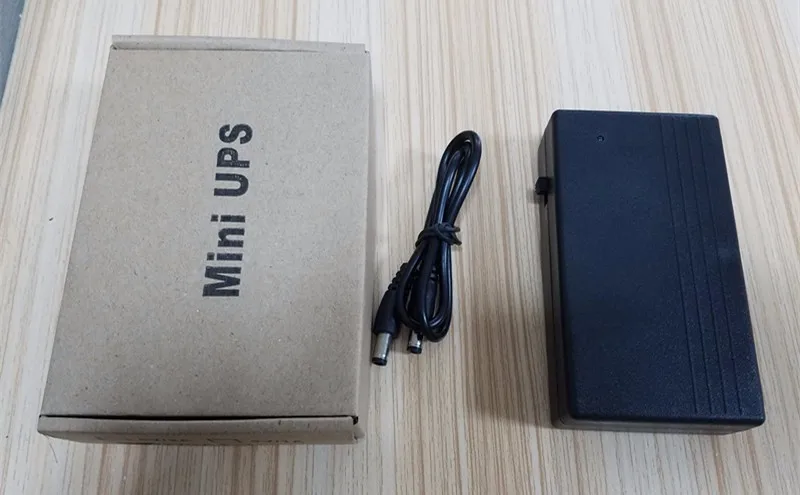

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 2 3 - 500 501 - 1000 >1000 Est. Time(days) 3 10 20 To be negotiated
IP camera use ups battery backup 5V 2A power supply mini ups 5volt
DC 5V Mini UPS Tecnical Features :
Mini UPS uninterruptible power supply is a standby energy storage power supply.
Used safe and environmental lithium cells, credible and stable PCB,
Trickle/constant-current/ constant-voltage lithium battery charging BMS,
Created by high performance and efficiency DC-DC, boosting and switching circuit.
This mini UPS with perfect over-charged, over-discharged, over-current and short-circuit protection.
| DC 5V Mini UPS Basic Information | |
| Model | UPS502A-14801 |
| Capacity | 14.8wh/4000mAh |
| Battery Type | 18650 lithium ion battery |
| Input Voltage | 5V ±5% |
| Input current | 350mA+loading current |
| Output Voltage | 5V±10% |
| Output current | ≤2000mA |
| Discharging transfer efficiency | ≥75% |
| Over-discharged protection(battery) | 2.5V( Over-discharged release 3V) |
| Over-charged protection(battery) | 4.35V( Over-charged release 8.25V) |
| With load current(battery) | ≥2000mA |
| Working temperature | -20°C~85°C |
| Weight | ≤153g |
| Size | 111x60x26mm |
| Warranty | 1 year |
| Certification | CE,ROHS,FCC,PSE |
Item | Capacity | Input | Output | SIze |
| 5V@2A | 14.8wh~57.72wh/2cells~6cells | DC 5V 2A, DC 5.5*2.5mm | DC 5V 2A,DC 5.5*2.1mm | 111*60*26/43mm (Optional) |
| 9V@1A | 14.8wh~57.72wh/2cells~6cells | DC 9V 1A, DC 5.5*2.1mm | DC 9V 1A, DC 5.5*2.5mm | 111*60*26/43mm (Optional) |
| 12V@1A | 14.8wh~57.72wh/2cells~6cells | DC 12V 1A, DC 5.5*2.1mm | DC 12V 1A, DC 5.5*2.5mm | 111*60*26/43mm (Optional) |
| 12V@2A | 22.2wh~57.72wh/2cells~6cells | DC 12V 2A, DC 5.5*2.1mm | DC 12V 2A, DC 5.5*2.5mm | 111*60*26/43mm (Optional) |
Remark:
1.We have variety models suitable for different device.
2.We"re happy to assist you to get the most suitable model,welcome your iqnuiry.Click here
3.DC size can be customized
Packing List
UPS device*1
DC cable*1
EN user manual*1
Neutral box*1
Packing Method
| UPS size | Qty/ctn | G.W | Carton size |
| 111*60*26mm/2cells | 44pcs/ctn | 9kg/ctn | 42*23*24cm |
| 111*60*26mm/3cells | 44pcs/ctn | 10kg/ctn | 42*23*24cm |
| 111*60*43mm/4cells | 30pcs/ctn | 9.85kg/ctn | 42*23*24cm |
| 111*60*43mm/6cells | 23pcs/ctn | 9.5kg/ctn | 42*23*24cm |
Delivery time
Sample: 2-3days
Bulk order: 20-25days
Special service
Sample order can offer free laser logo serviceShenzhen Richroc Electronic Co.,Ltd.is a professional manufacturer of mini UPS, solar power systems and temperature control battery pack.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,PDA,MP3/4/5,digital camera,LED lamp, DVD/CD player, ADSL modem and router etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed forevery month.We have our own brand name WGP.OEM and ODM orders are welcomed. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast shipping time are the reasons to choose us.
OUR SERVICES
NO. | Item | Details |
1 | Accept sample order | you can place sample order even 1set to test our products and services. |
2 | Low MOQ | We are a manufacturer,not wholesaler or trading company,we can control the production.In order to support your business,we accept low MOQ as 1set. |
3 | OEM/ODM | We have our own Design Dept. and experienced engineering team,we can develop new samples according to the market change and need ,to win the market for our customer. If you are not ready for the design, our engineers will help you about it freely with their expertise. |
4 | Factory price | Factory directly sell ,price is much lower than retailer,wholesaler or agents, save you much cost! |
5 | Quality and Leadtime | 80% of employees with at least 3 years experience in production ,engineering and technology.What"s more,we have our own PCBA Dept,so we can control the qaulity of PCB part and producing process. |
6 | Warranty | 1 year warranty.If the products has function problem, after you offered evidence details to us, we will replace you new products with next order. |
7 | Exclusive | If you be our agent,we won"t sell to other buyer in your country,you are the only occupant of the market! |
