12V Mini Hi-Fi PAM8610 Audio Stereo Amplifier Board 2X10W Dual Channel D Class
 | Working mode | class D (PWM modulation) |
| MCU Chip | PAM8610 | |
| Power supply range | DC 6v-15v | |
| Recommended voltage | DC 12V2A | |
| Output power | 10W*2(8 ohm) 15W*2(4 ohm) | |
| Static current | 20mA (DC12V) | |
| Frequency | 20 hz to 15 KHZ | |
| SNR | 90% | |
| Input impedance | 15K | |
| Harmonic distortion | <0.1% |

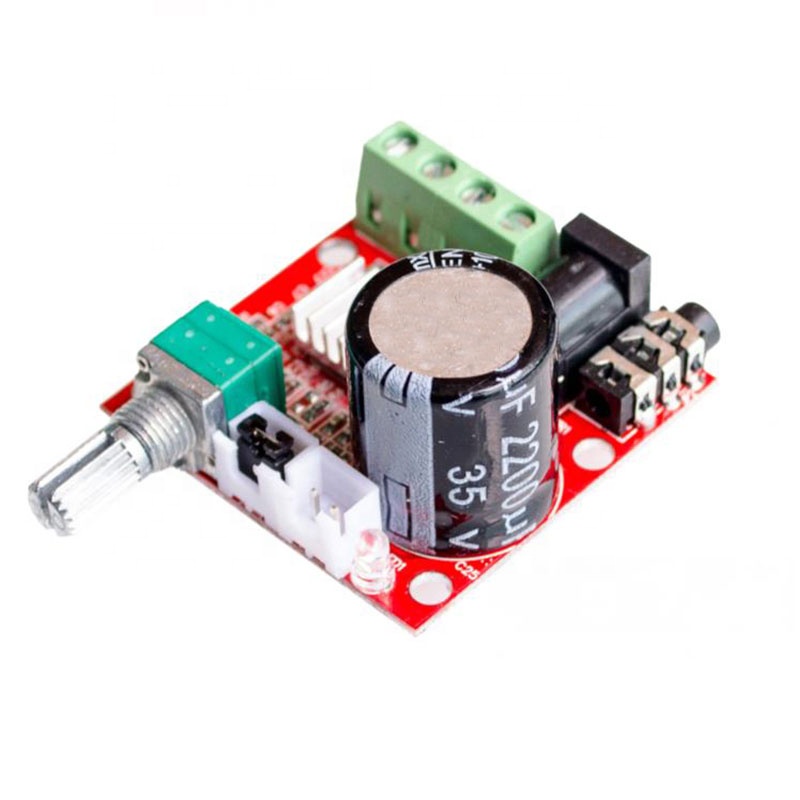

Physical picture:
Compact board, 3.5MM stereo audio input interface, audio input with a standard easy. With fully enclosed volume control potentiometer, can be arbitrary adjust the volume, use and installation are very flexible and convenient
Use American Power Analog Microelectronics original PAM8610 pure Class D amplifier chip as the power amplifier IC, the maximum it can provide to 10W + 10W of power, incredible sound.
PCB component placement tidy line with US FCC standards, all using genuine components using devices capable of long-term stability.
Heart-highlight fine arts star Electronic Manufacturing insist that only new element was the market mature products, please rest assured purchase.
Use enthusiast 2200UF capacitor, ensure pure sound quality.
Board size: Long 40mmX (excluding protruding parts of the volume potentiometer, etc.) wide by 19 40mmX
