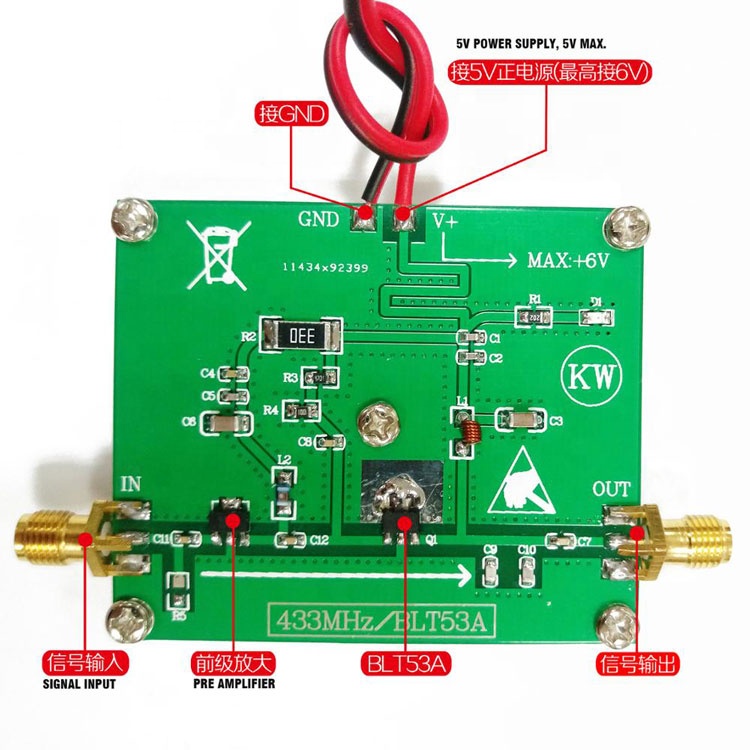

Click on the image to view the original image
 | power supply | +6V (maximum power) High voltage version |
| power current | 700mA | |
| size | 60mm * 50mm | |
| input impedance | 50Ω | |
| input power | <2dBm (with preamp) | |
| maximum output power | 33dBm = 2W power output (measured value) to reach maximum power, such as input power is 2dBm | |
| applicable frequency band | 300MHz~650MHz | |
| main frequency power | 315MHz (33dBm) 433MHz (33dBm) |
Test chart: Before entering the spectrum analyzer did a 10dBm attenuator processing
Spectrum analyzer measured 315MHz 415MHz power amplitude value:
315MHz P = 21.59 + 10 = 31.59dBm
Plus line loss 0.7db, the actual power value is about: 32.3dBm
433 MHz P = 23.35 + 10 = 33.35 dBm
Plus line loss 0.7, the actual power value is about: 34dBm
