DC-DC Step Down Module / 9.8V 50A
High power isolated dc voltage conversion / 48V TO 9.8V 50A
 | Input Voltage | 48-60V |
| output | 9.8V 50A | |
| power | 490W (MAX) | |
| PCB Thickness | 3.6MM | |

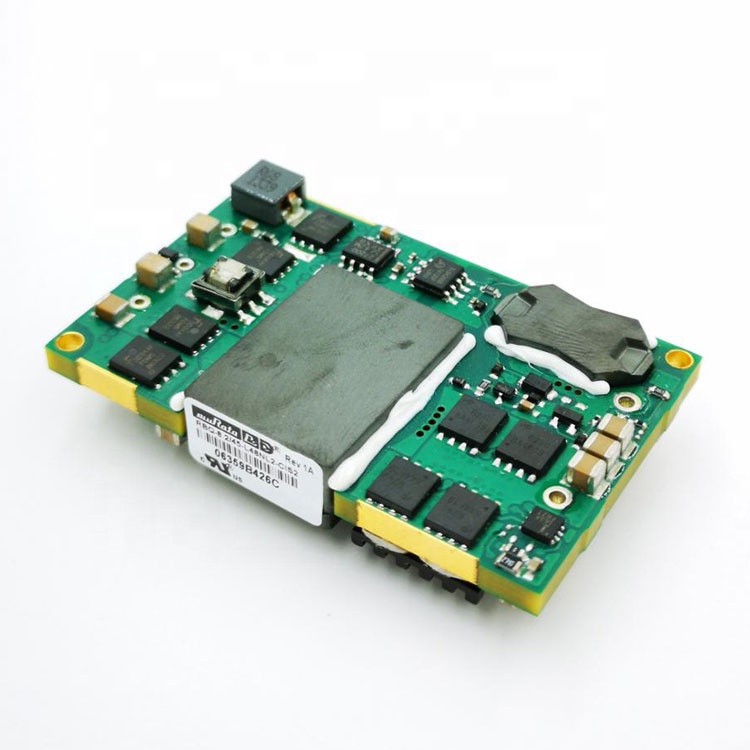

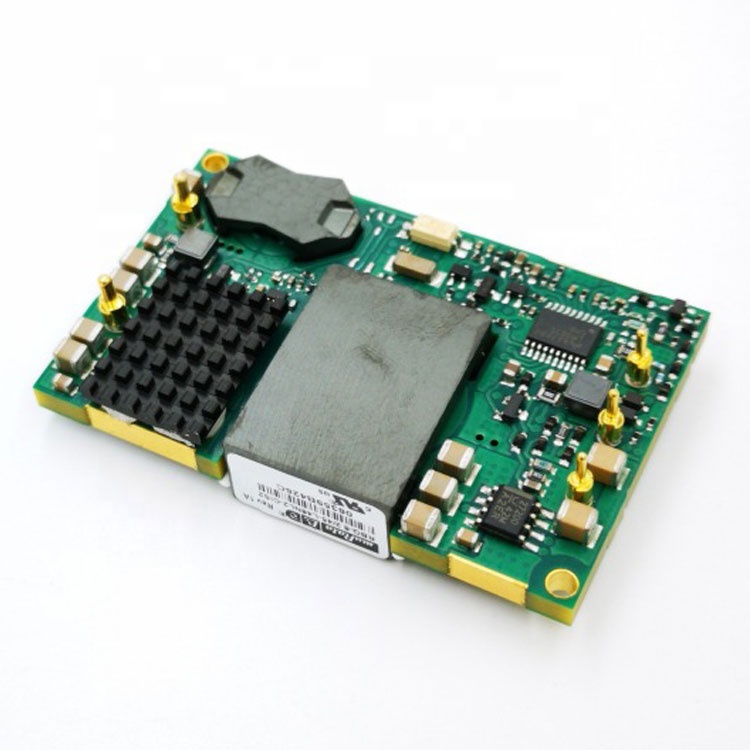

The high-power isolated DC-DC voltage conversion module, work very well, is estimated to be used in the highly reliable communications industry, etc., the original price must be a few hundred dollars a. Module input voltage 36-75V, output 8.2V45A, maximum power 370W. The thickness of the multilayer circuit board is 3.6mm, and the transformer coils are integrated in the circuit board. The workmanship is very good.
This power test can be easily modified voltage range 3.4V-8.7V adjustable, requires a certain amount of hands-on ability, as long as a resistance is replaced with a 10K potentiometer, the load 100W test half an hour no problems
found, the conversion method is for reference only, such as There is a better program to contact me and reward.
This module is a high-power, small-volume module. It must add thermal conductive paste and heat sink to force heat dissipation.
