 | Input Voltage | 24V |
| input voltage range | 18~36V | |
| output power | 36W | |
| output voltage | 12V | |
| utput current | 3A | |
| Conversion efficiency | >=90% | |
| Working temperature | -20° to 60° | |
| Overcurrent protection | Support | |
| Overvoltage protection | Support | |
| Short circuit protection | Support | |
| size | 350x250x15(mm) | |
| weight | 0.06kg | |
| Heat dissipation | natural heat dissipation | |
| Install aperture | 4mm | |
| Pitch row | 56mm |
Product Feature
1. Non-isolated dc stabilized voltage power supply module
2. Epoxy resin filling and sealing, waterproof, dustproof and shockproof
3. Flame retardant plastic shell, natural heat dissipation.
4. Over current, short circuit and other automatic protection functions.

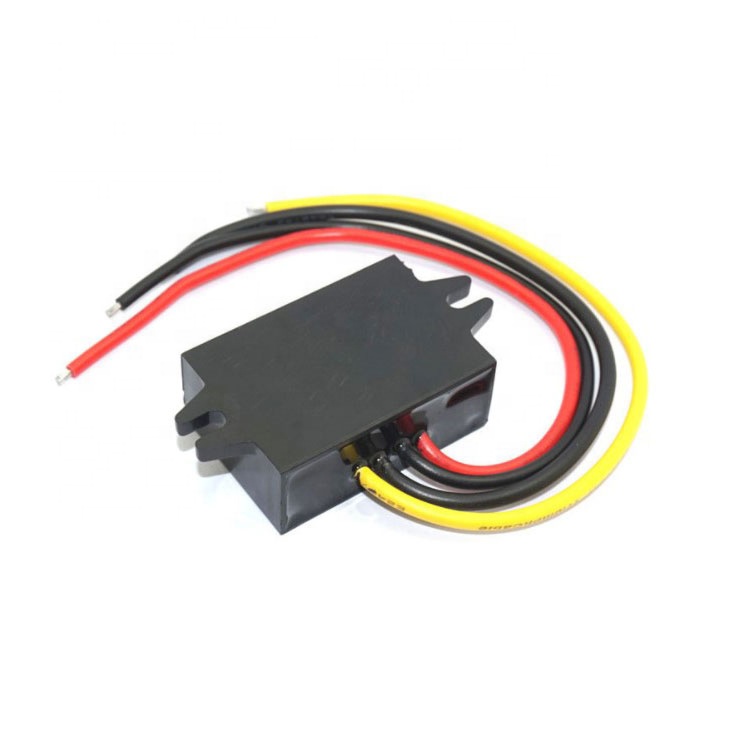

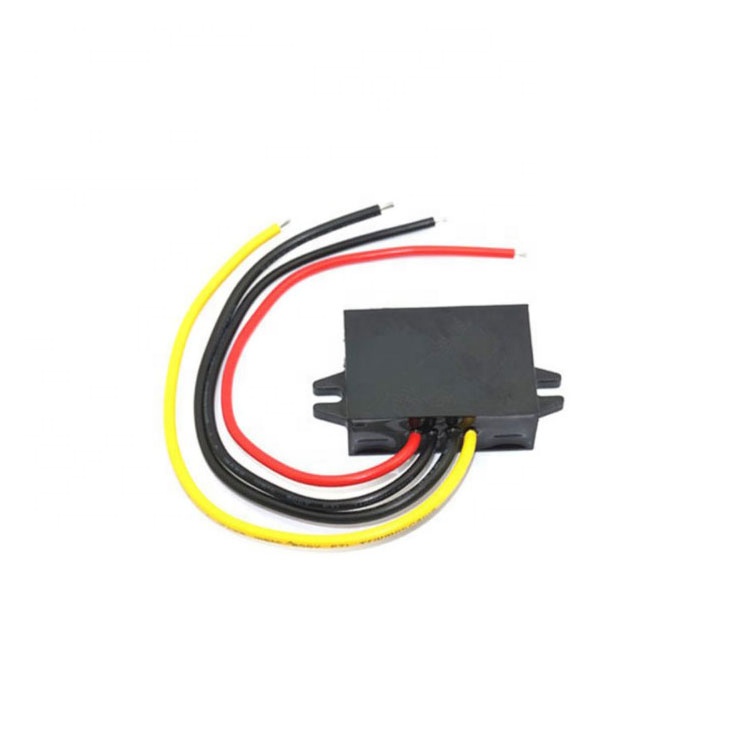

Wiring mode:
Input end: red line (+), black line (-)
Output end: yellow line (+), black line (-)
Application:
The products are widely used in automobile, post and telecommunications, communication, power, coal mine, monitoring system, railway signal, medical equipment instrumentation, display screen, automatic control, cable TV, wind power photovoltaic system, LED market and other fields.If you can"t find the right power supply for you, please contact us.We will quickly make corresponding solutions according to your actual needs.
