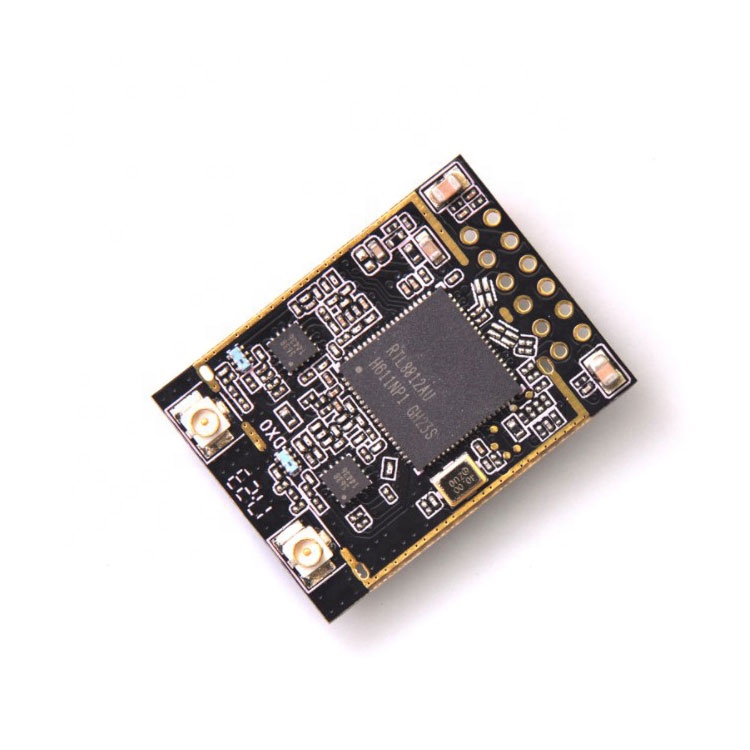

This module adopts the WIFI scheme of RTL8812AU, works in 2.4ghz and 5GHz, supports ieee802.11. b/g/n/ac, small size and low power consumption group, and USES MIMO technology to transmit 2T2R in 5GHz mode at a rate of 867Mbps.

WLAN major specifications

-- PHY: supports 2.4 frequency band and 5G frequency band 2x2;

-- MAC: support IEEE 802.11 d/e/h/ I /k/w/v;

-- support 20M/40M/80M coexistence;

-- supported IEEE 802.11 b/g/n/ac;

SoC main specifications

-- support USB2.0 interface;

- PHY rate:

802.11 a:,48,36,24,18,12,9,6 54 Mbps

802.11 b: 11 ", 2, 1 Mbps

802.11 g:,48,36,24,18,12,9,6 54 Mbps

802.11 n, 802.11 ~ 300 MBPS

Ac 802.11: up to 866.7 Mbps

Other major specifications

-- transmission power: 11b @16dbm;11 g @ DBM;11 n @ 13 DBM;MCS9 @ 13 DBM;

-- 2.4g receiving sensitivity (40MHz) : -80dbm @rate MCS 0;-68dbm @rate MCS 5;- 64 DBM @ MCS7

-- 5G receiving sensitivity (40MHz) : -80dbm@rate MCS 0;-68dbm @rate MCS 5;- 64 DBM @ MCS7

	Chip Model	RTL8812AU
	Working Voltage	3.3V
	Interface	USB2.0
	Model Size	27*20*3.5mm
	Transmission Rate	150Mbps/867Mbps
	Antenna	Circumscribed
	Working Frequency	2.4GHz/5GHz
	RF Antenna	2T2R
	Working Temperature	0° ~ 70°
	Storage Temperature	-40° ~ 80°
	Support system	Android/Linux/Win CE/Win7/XP

Product Application

1. Notebook computer
2. tablet computer
3. smart phone/TV
4. Internet player
5. security monitoring
6. smart home, etc.,
7. to provide customers with product solutions.
