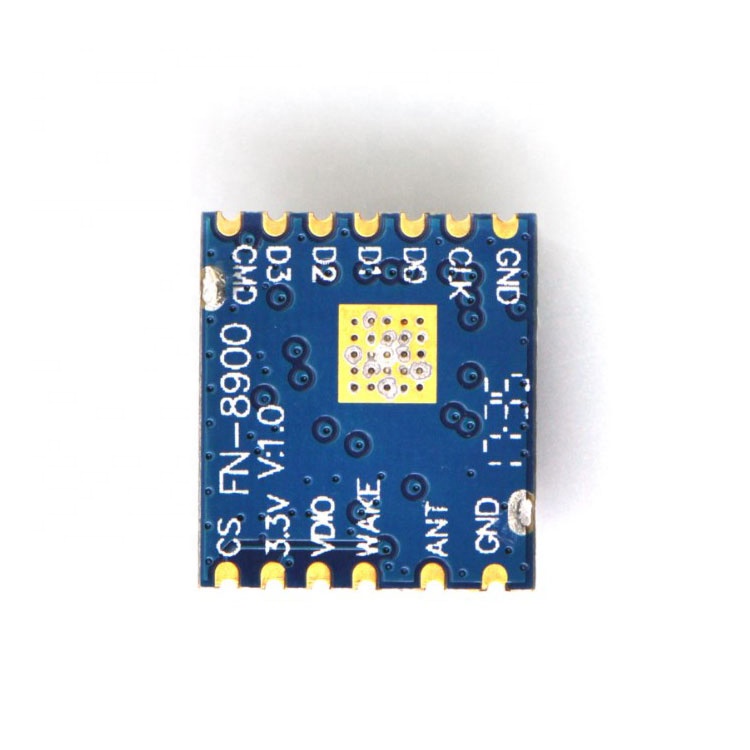

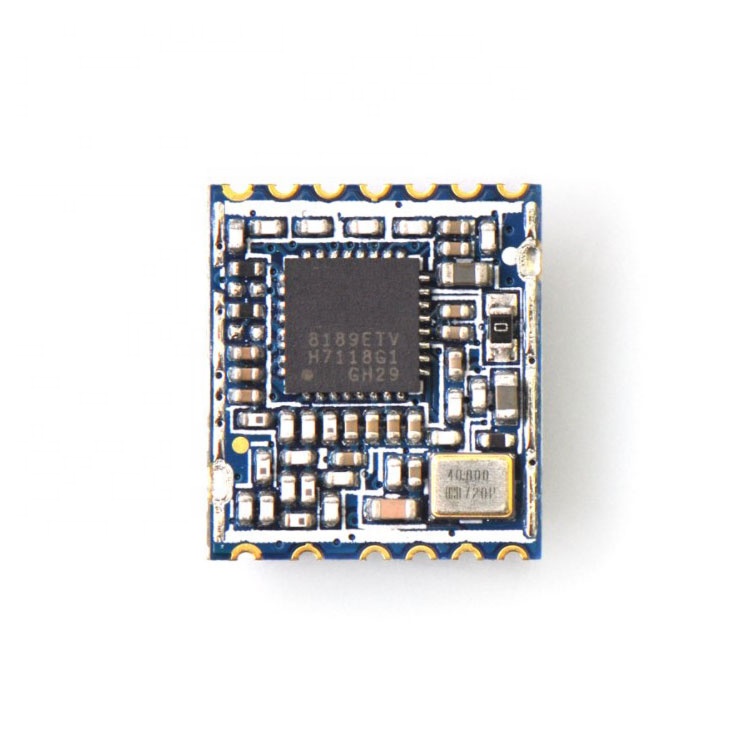

This is an LGA encapsulated high-speed WiFi module.It USES RTL8189ETV chip design, which conforms to IEEE 802.11b/g/n standard and works in 2.4g mode.At present, this module is the most widely used ultra-low power wifi module in the industry.
WLAN major specifications
-- PHY: MIMO supporting 2.4g band 1T1R;
-- support IEEE 802.11 b/g/n;
-- support HT20/HT40;
-- support WPA, wpa-psk, WPA2, wpa2-psk, WEP 64bit & 128bit encryption;
-- support SDIO interface;
SoC main specifications
-- power supply: 3.3v (3.0-3.5v);
- channel:
11: (Ch. 1-11) -- United States(North America)
13: (Ch. 1-13) -- Europe
14: (Ch. 1-14) -- Japan;
-- support frequency: 2.400 ~ 2.4835ghz;
Modulation: 802.11b: CCK(11, 5.5mbps), QPSK(2Mbps), BPSK(1Mbps), 802.11g /n: OFDM
other major specifications
-- transmission power: 11b&11M @16dbm;11 g & m 54 @ DBM;11 n & 65 MBPS @ 13 (MCS 0 _ht20);
-- receiving sensitivity: -88dbm@rate1;-71dbm @rate 54;-67dbm@rate MCS 7;
 | Chip Model | RTL8189ETV |
| Working Voltage | 3.3V | |
| Interface | SDIO | |
| Model Size | 14*12.5*2mm | |
| Transmission Rate | 150Mbps | |
| Antenna | Circumscribed | |
| Working Frequency | 2.4GHz | |
| RF Antenna | 1T1R | |
| Working Temperature | 0° ~ 50° | |
| Storage Temperature | -40° ~ 80° | |
| Support system | Android/Linux/Win CE/XP/WIN7 |
Product Application
- Visual doorbell
- VR/AR/ wireless storage
- Unmanned aerial vehicle (uav)
- IPC and other battery-powered electronic products
- Intelligent video doorbell
