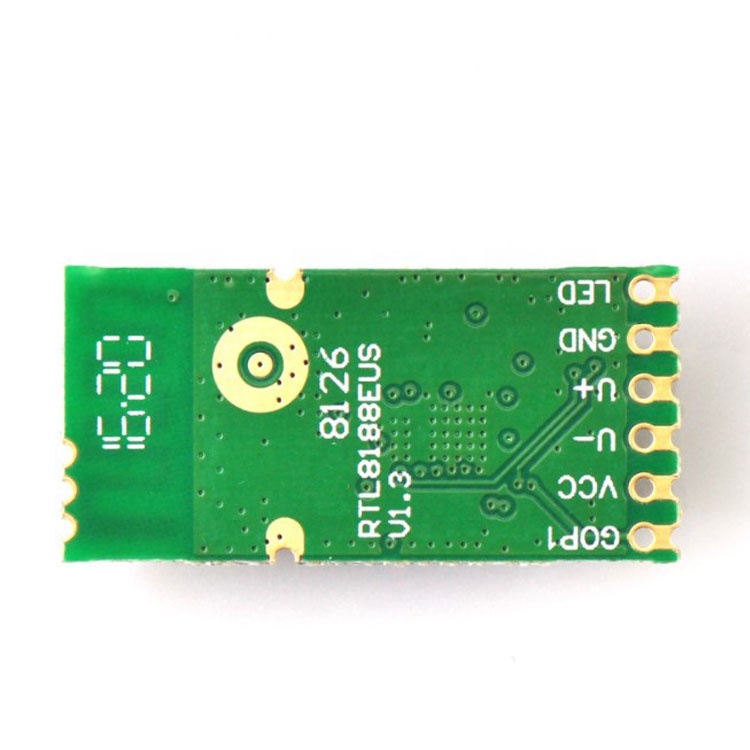

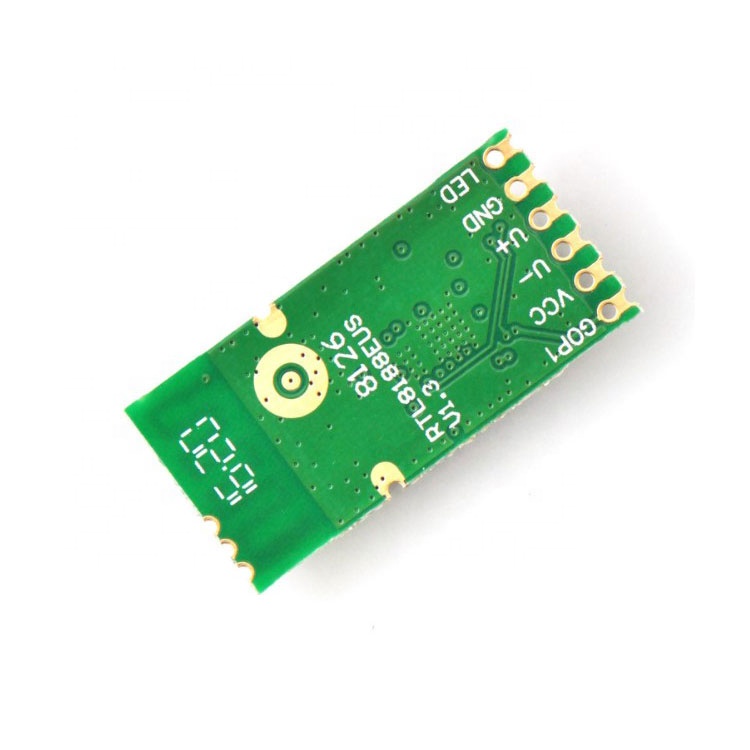

This is an LGA encapsulated high-speed WiFi module.It USES RTL8188EUS chip design, which conforms to IEEE 802.11b/g/n standard and works in 2.4g mode.At present, this module is the most widely used ultra-low power wifi module in the industry.

WLAN major specifications

• -- PHY: ieee802.11b/G /n supporting 2.4g band 1x1;
• -- MAC: support IEEE 802.11 d/e/h/ I /k/w/v;
• -- support transmission rate of 150Mbps;
• -- Modulation support :802.11b: CCK(11, 5.5mbps), QPSK(2Mbps), BPSK(1Mbps), 802.11g /n: OFDM.
• -- PHY rate support:
• 802.11 b: 11 ", 2, 1 Mbps
• 802.11 g:,48,36,24,18,12,9,6 54 Mbps
• 802.11n: up to 150Mbps;

SoC main specifications

• -- support the SDIO2.0 interface;
• -- support channels:
• 11: (Ch. 1-11) -- United States(North America)
• 13: (Ch. 1-13) -- Europe
• 14: (Ch. 1-14) -- Japan;
• -- support 3.3v power supply;
• -- support 2.400 ~ 2.4835GHz;

Other major specifications

• -- transmission power: 11b @16dbm;11 g @ DBM;11 n @ 13 DBM;
• -- receiving sensitivity: -88dbm@rate1;-71dbm @rate 54;- 67 DBM @ MCS7 & HT20

	Chip Model	RTL8188EUS
	Working Voltage	3.3V
	Interface	USB
	Model Size	25*12*2mm
	Transmission Rate	150Mbps
	Antenna	Circumscribed
	Working Frequency	2.4GHz
	RF Antenna	1T1R
	Working Temperature	0° ~ 50°
	Storage Temperature	-40° ~ 80°
	Support system	Android/Linux

Product Application

1. Visual doorbell
2. VR/AR/ wireless storage
3. Unmanned aerial vehicle (uav)
4. IPC and other battery-powered electronic products
5. Intelligent video doorbell
