Click on the image to view the original image

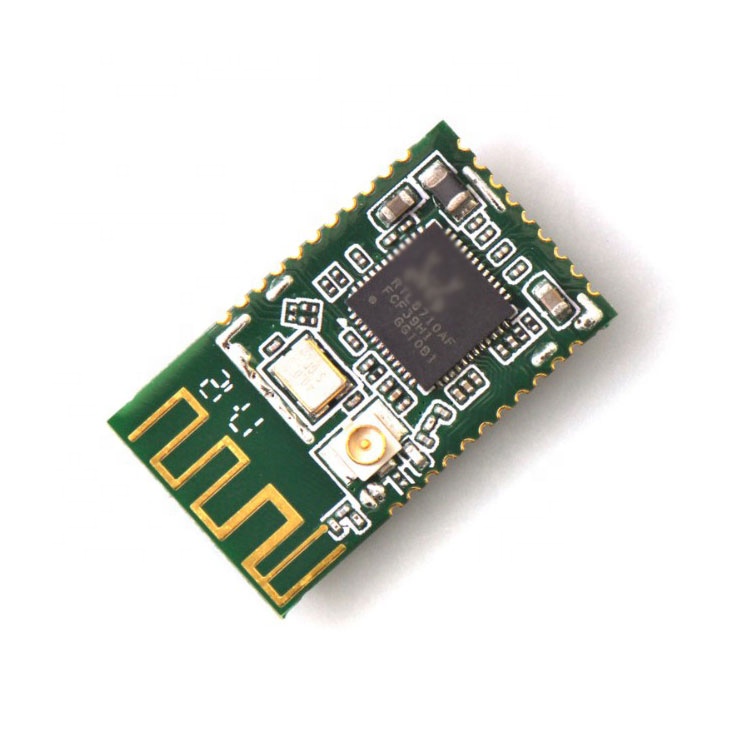

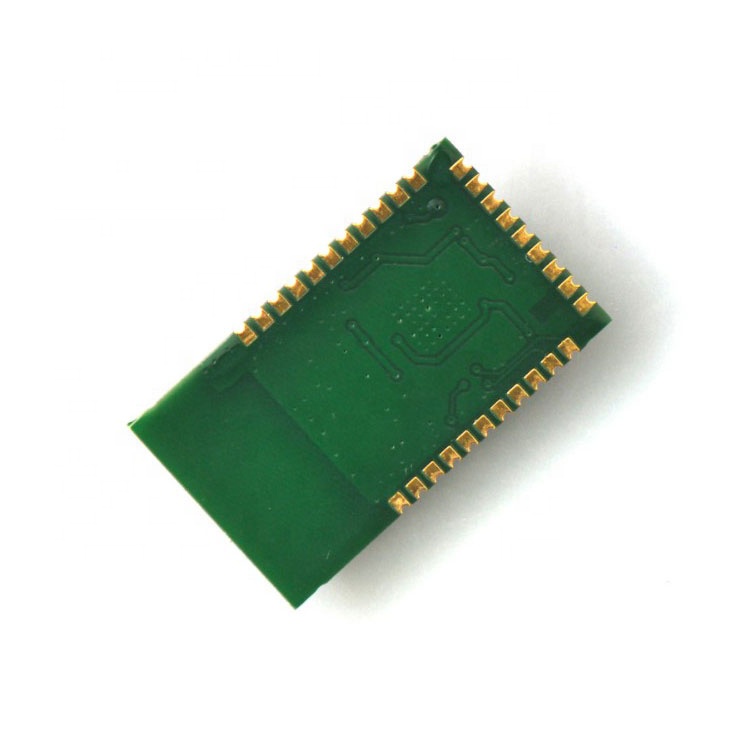

This is a highly integrated low-power module, it combines an arm-cm3 SCM, wireless LAN MAC, 1T1R output.It also provides a GPIO interface for docking different digital peripheral applications and controls.Integrated 1MB ROM internal storage.
WLAN major specifications
- -- PHY: IEEE 802.11 b/g/n with support for 2.4-band 1x1;
- -- MAC: support IEEE 802.11 b/g/n;
- -- support 20/40mhz transmission;
- -- support 802.11e QoS enhancement (WMM);
- -- support 802.11iWPA,WP2 open and share keys;
SoC main specifications
- -- supporting arm-cm3 MCU;Support UART interface;
- -- use 40MHz to support the receiving speed of 150mbps and the transmission rate of 150mbps;
- -- the maximum data rates in 802.11g and 802.11n are 54 Mbps and 150 Mbps;
-- 802.11 n OFDM;
 | Chip Model | RTL8710AF |
| Interface | UART GPIO | |
| Model Size | 22.6*13*2.1mm | |
| Transmission Rate | 150Mbps | |
| Antenna | Built-in | |
| Working Frequency | 2.4GHz | |
| RF Antenna | 1T1R | |
| Working Temperature | 0° ~ 70° | |
| Storage Temperature | -40° ~ 85° |
Product Application
- Intelligent gateway
- toys
- lighting
- intelligent street lamps
- intelligent household appliances
- household appliances
- instrumentation (water, electricity, gas)
- intelligent city and other consumer electronic products
