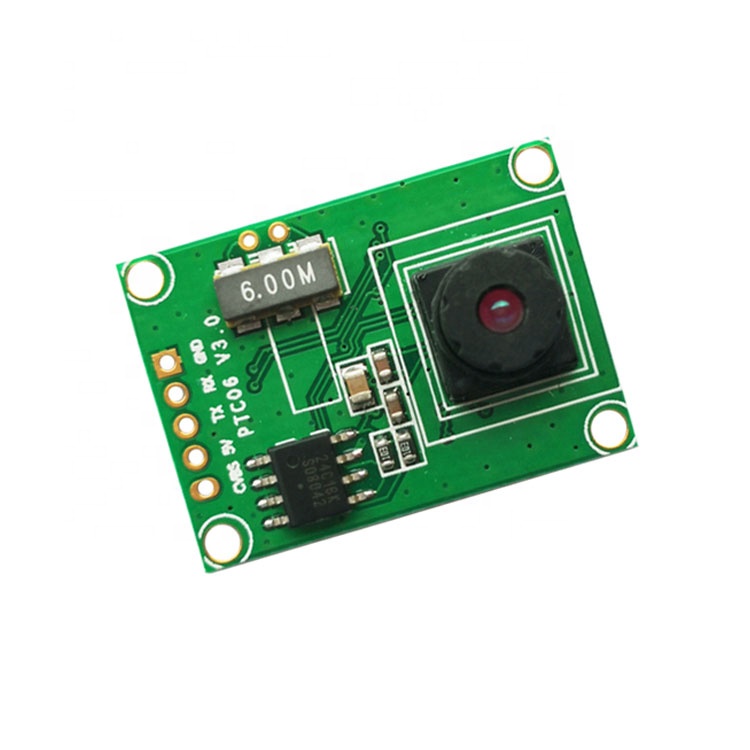

Product Description
SPECIFICATION PARAMETER
 | Model | RTC-06 |
| Working Voltage | DC 3.3-5V | |
| Working Current | 100mA | |

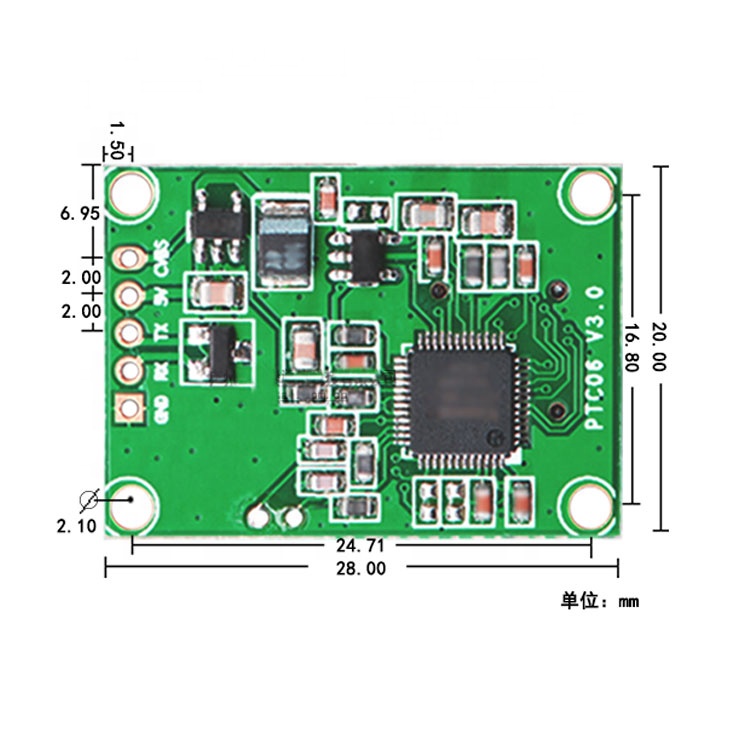

| Model Size | 20*28*9mm | |
| Sensor Chip | VC0706/VC0703 | |
| Max Resolution | VGA(640*480), QVGA(320*240) | |
| FOV | 70 degree | |
| Sensor Pixel | 0.3MP | |
| Frame Rate | 640*480 30FPS | |
| Focus Mode | Manual Focus | |
| Output Format | JPEG/M-JPEG | |
| Sensor Type | CMOS | |
| Interface Type | TTL UART (3PIN:TX,RX,GND) | |
| Scan Mode | Progressive Scanning |
COMMUNICATIONS PROTOCOL
| Instruction names | Input | Return |
| Reset | 56 00 26 00 | 76 00 26 00 + Versions info |
| take photos | 56 00 36 01 00 | 76 00 36 00 00 |
| read the length of photos taken | 56 00 34 01 00 | 76 00 34 00 04 00 00 XX YY |
| read the data of photos taken | 56 00 32 0C 00 0A 00 00 XX XX 00 00 YY YY 00 FF | 76 00 32 00 00 FF D8 ......FF D9 76 00 32 00 |
| empty the photo cache | 56 00 36 01 03 | 76 00 36 00 00 |
| set the compression rate of photos taken | 56 00 31 05 01 01 12 04 XX | 76 00 31 00 00 |
| Set the photo size(320*240) | 56 00 31 05 04 01 00 19 11 | 76 00 31 00 00 |
| Set the photo size(640*480) | 56 00 31 05 04 01 00 19 00 | 76 00 31 00 00 |
| Set the photo size(160*120) | 56 00 31 05 04 01 00 19 22 | 76 00 31 00 00 |
| Set the temporary baud rate of serial port | 56 00 24 03 01 XX YY | 76 00 24 00 00 |
| Set the initial baud rate of serial port | 56 00 31 06 04 02 00 08 XX YY | 76 00 31 00 |
| Set the camera model | 56 YY 31 05 04 01 00 06 ZZ | 76 YY 31 00 00 |
There are two versions of this module, the difference is the chip used. VC0706 VC0703
