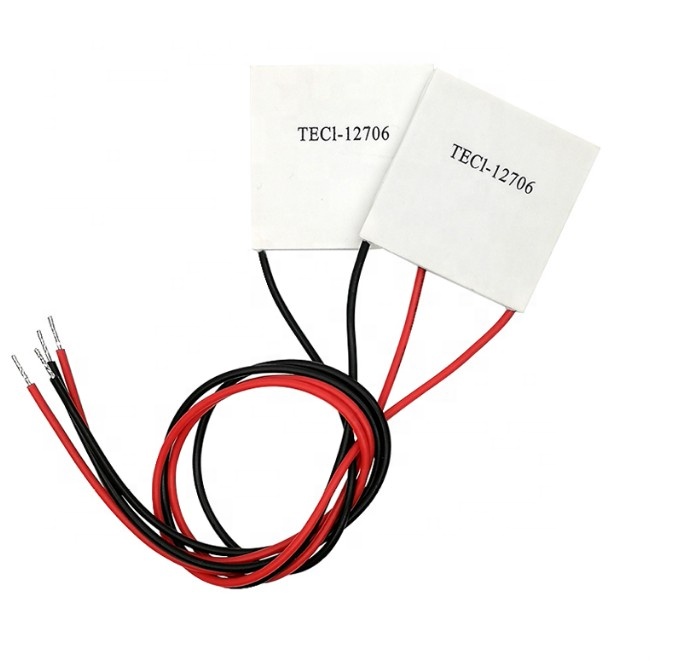

Chip model: tec1-12706.

External dimensions: 40*40*3.75mm.

Internal resistance value: 2.1 ~ 2.4 Ω (23 + / - 1 ℃, environment temperature 1 KHZ Ac test)

Maximum temperature difference: delta Tmax 59 (Qc = 0) ℃ and above.

Operating current: Imax=4.3-4.6A (rated 12V)

Rated voltage: 12V (Vmax: 15V starting current 5.8A)

Cooling power: Qcmax 60-72w.

Working environment: temperature range -55 ~83 (high environmental temperature drop directly affects cooling efficiency)

Packaging process: four-week standard 704 silicone rubber seal.

There is a word for refrigeration.

There is no word for the heat sink.

The radiator must be added to the heat sink, or the water cooling

device will be burned. (note: no matter whether the water is cold

or cold, it should be coated with silicone grease)

Note: if the heat dissipation is not done properly, the refrigeration

unit is not responsible for the warranty. Switching on the power

when tested without heat dissipation will have a cooling effect.

The power should be unplugged immediately within 1 second.

Otherwise, it is very easy to burn the refrigerating film. "Please

test carefully, do not use this method test."
