High frequency induction module is an ideal replacement product for infrared and acoustic control induction modules.

specification parameter

1. Working voltage of the module: 3.5-20vdc;
2. Standby static current: no more than 3mA;
3. Transmitting power: no more than 2mW;
4. the working temperature environment: - 20 ° - + 80 °;
5. Trigger mode: repeat trigger (default);
6. Output signal: TTL level, highly effective;High level 3V low level 0V;
7. the detection Angle: 360 ° (spherical) no dead Angle;
8. Detection distance: 3-8 meters, about 7 meters by default;
9. Working delay: from 1 second to 2 minutes (optional when ordering), the default setting is 1S (the resistance of R6 solder pad is 1S, and the resistance of R6 without is 30)
10. Size: 23 * 32 mm

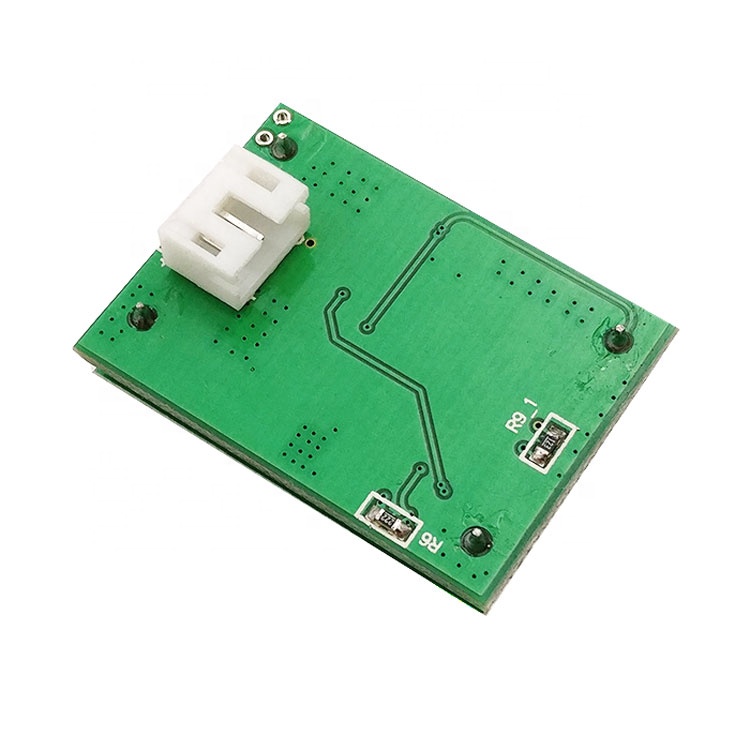

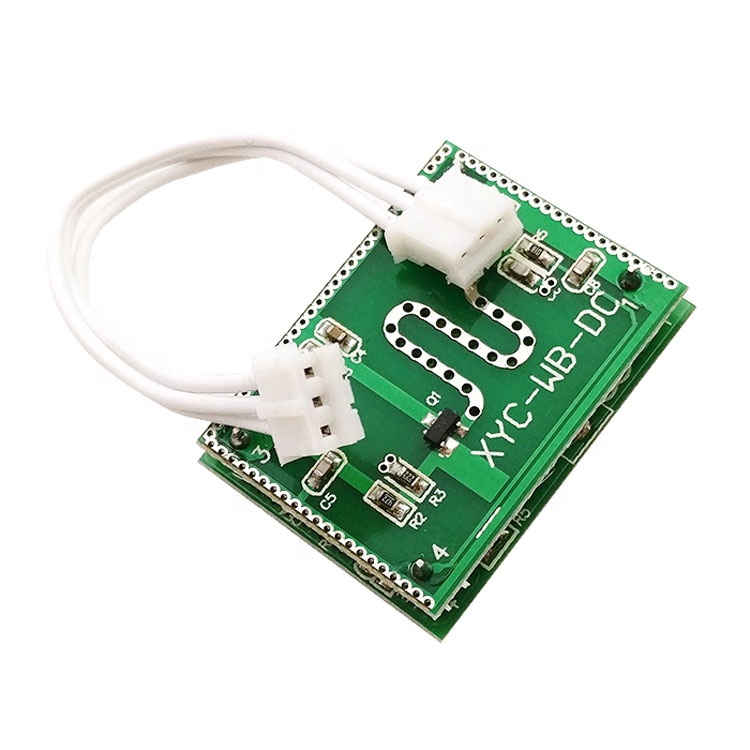

11. Antenna: antenna panel (front) control panel (back)

function

• Doppler technology (microwave induction) -- active (sensor: human/moving object)
• Intelligent induction: when someone enters the detection range of this product, the output end of the high-frequency induction module Vout outputs TTL high level, and after a delay period, the output end reverts to TTL low level.
• Intelligent delay: after the induction module is started, in the delay period, if there is human activity, the module output terminal Vout will continue to output TTL high level until the person leaves and passes through a delay period to output low level.
• Photosensitive control (optional) : control the output state of the module according to the external light intensity to achieve energy saving effect.
• Compared with infrared products, the high-frequency induction module has a longer induction distance, a wide Angle, no dead zone, and is not affected by environmental temperature and dust.

Application

• security and protection
• intelligent lighting
• human body induction toys
• industrial automation control
• automatic induction electrical equipment
• battery power automatic control
