 Application:

• 1. The contact capacity of 12V relay is 10A 250V with optocoupler protection.On-board power module does not need external power supply.I/O port drive low level effective.
• 2, can be used as a single chip microcomputer development board module, can be used as a writer electrical control, can also be used as PLC expansion output.

Module features:

• 1. Control signal voltage range: trigger signal is 0-2v at low level;The high level voltage shall not exceed 5V.
• 2. Adopt the isolation optical coupler of top quality in the industry, with strong anti-interference ability and stable performance;The trigger current is only 3mA.
• 3. All 1-16 channels can be opened/closed at will, or any channel.
• 4. Output form: load directly connected to AC 220V 10A or DC30V 10A.
• 5. The common end COM of each relay is independent, which facilitates users to access different signals. Each relay has a constant close and a constant start port.
• 6. Each relay is equipped with an action indicator light, which can be switched on and off.
• 7. Humanized interface design. All interfaces can be directly connected through the wiring terminal, which is very convenient.
• 8. Four fixed bolt holes are provided for convenient installation.

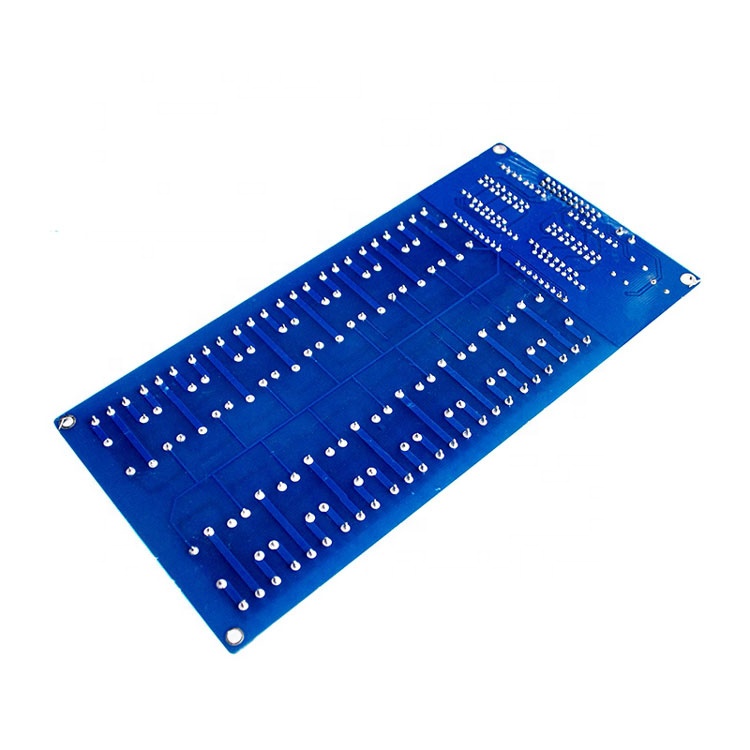

• 9. PCB board size: 180MM(L)*80MM(W)*20MM(H).

Electrical parameters:

• Power supply voltage: 5V 12V(DC)
• Power supply current: greater than 200mA
• Load of each relay: 250V 10A (AC) or 30V 10A (DC)

Product instructions:

• 1. The power supply shall conform to the range of use, dc 12V;
• 2. The power supply shall not be connected inversely according to the requirements of the wiring diagram;
• 3. The step-down chip LM2596S used in the product has a slight fever, which is a normal phenomenon. The relay also has a normal fever when it works for a long time, which is a normal phenomenon.
• 4. Load power should leave a certain amount of margin for relay load, and avoid high power (about 2000W) and long working environment, which will have a certain impact on product life.
