Product Description
Features:
- Non-contact detection, moving object detecting.
- This module"s transmitting frequency is 24GHZ, can be widely applied in business, industries, word controlling etc.
- Provide various frequency range standards: -UK,-F.
- Advanced low consumption PHEMT oscillator.
- Independent transmitting and receiving route, can get the big gain.
- High sensibility, high flexibility, low cost, operating distance is 15m.
- Single channel operation.
Specifications:
- Transmitting Frequency: min:24GHz typ:24.125GHz max:24.25GHz
- Output Power:16dbm (typ)
- Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32
- Side lobe suppression ratio: horizontal direction: typ.13dB, vertical direction: typ.13dB
- Operating Temperature:-20~60℃
- Operating Current: typ:30MA, max:40MA
- Operating Voltage: typ:5.5V
- Pulse Width: typ:10US
- IF Output:-300~300MV
- Size: 25 x 25 x 7mm/0.98 x 0.98 x 0.27inch
- Weight: 5g
Package Included:

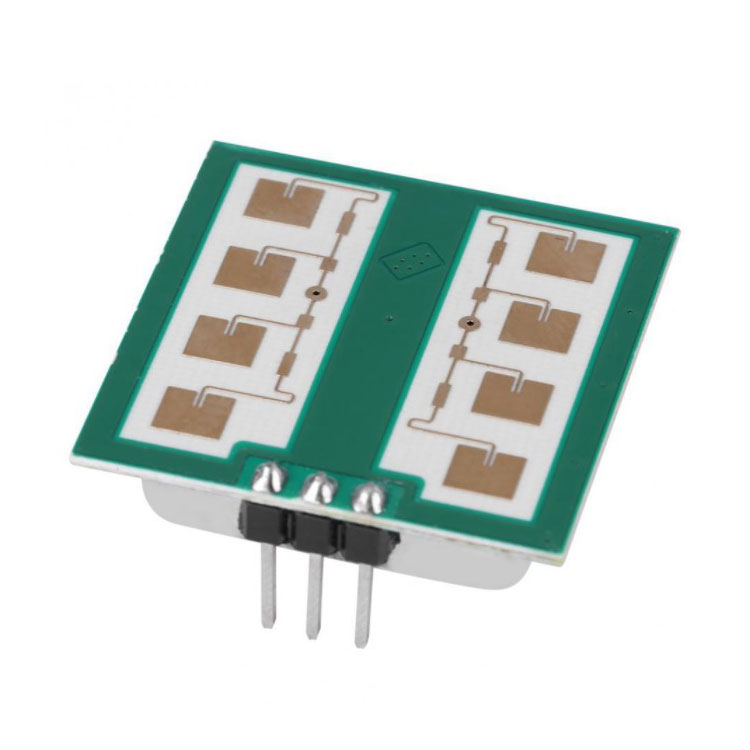

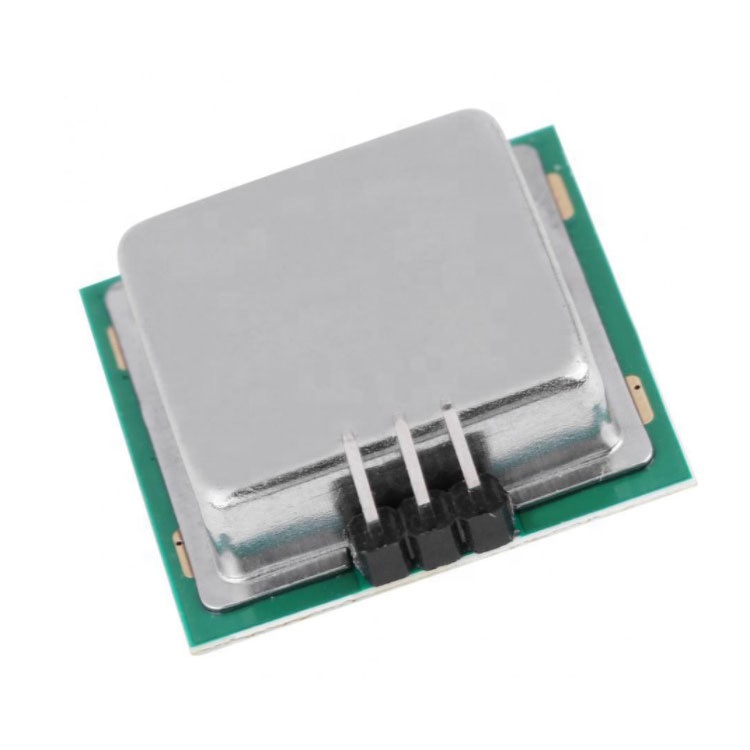

- 1 x Microwave Body Induction Module
