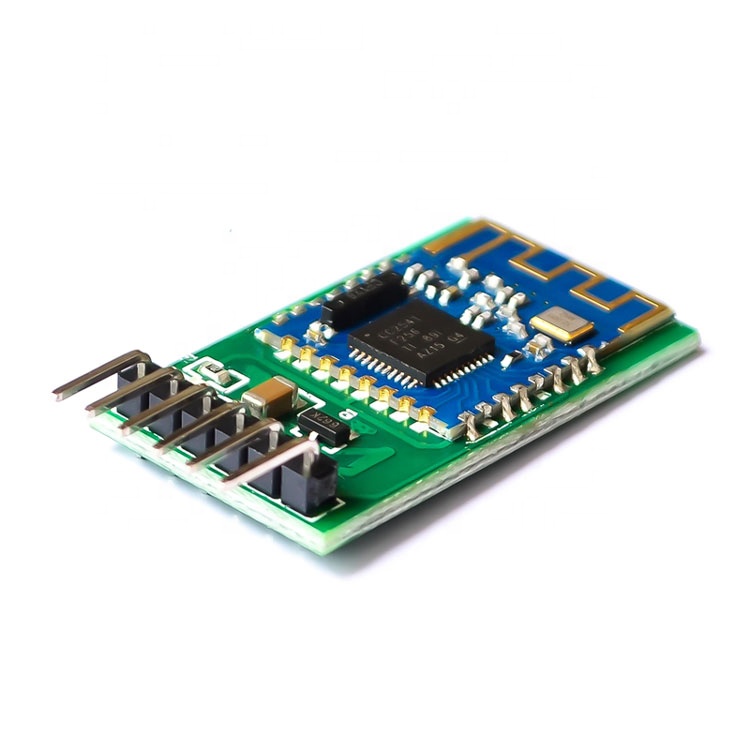

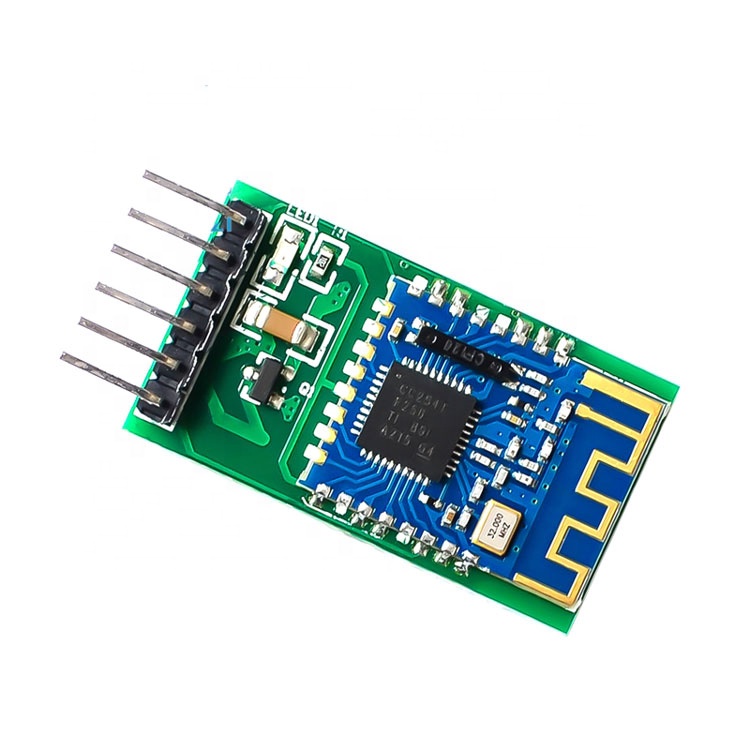

The Module transparent transmission module is based on BT4.0 protocol standard, with 2.4ghz working frequency range and GFSK modulation mode.The maximum transmitting power is 0db and the maximum transmitting distance is 60m. TICC2541 chip design is adopted to support users to pass AT life. To modify the device name, service UUID, transmission power, pairing password and other instructions, convenient and flexible use.

Function introduction

1. WeChat transparent transmission (support AirSync protocol, apply to WeChat H5 or manufacturer server communication)
2. APP transparent transmission (supports Android and IOS data transparent transmission)
3. iBeacon mode (support WeChat shake protocol and apple iBeacon protocol)
4. Sensor mode (temperature, humidity and many other sensor data acquisition applications)
5. host transparent mode (data transmission between application modules, communication between host and slave)
6. host observer mode (application sensor, indoor positioning)
7. PWM mode (used for motor speed regulation and LED brightness adjustment)
8. IO mode (for mobile phone control relay or LED on and off)
9. Indoor location application (collect iBeacon data to achieve range positioning)
10. RTC function
11. support LED lamp products (with 26 fixed modes, customized modes and panel modes) and working mode.Can choose jump, gradient, stroboscopic.
12. support massager products. By default, the built-in massager includes warm massage, comfortable massage, pulse massage and other methods
13. support iBeacon probe function
14. support RTC timing function

Technical parameters

1. communication rate 3K Bytes/ SEC
2. the serial port supports 1024Bytes in APP transparent transmission
3. effective communication distance is 15 to 30 meters
4. support PWRC pin to control sleep
5. support IO port control disconnect

Description of pin function

• DISC pin: used to actively disconnect bluetooth connections (default high level, low level disconnect)
• PWRC pin: it is used to wake up the sleep (the default state is sleep). The AT command can only be issued when the pin is grounded
• VCC pin: for the power pin of the module, the power supply voltage ranges from 3.6v to 6V
• GND pin: power ground
• TXD pin: serial output pin
• RXD pin: serial port input pin
