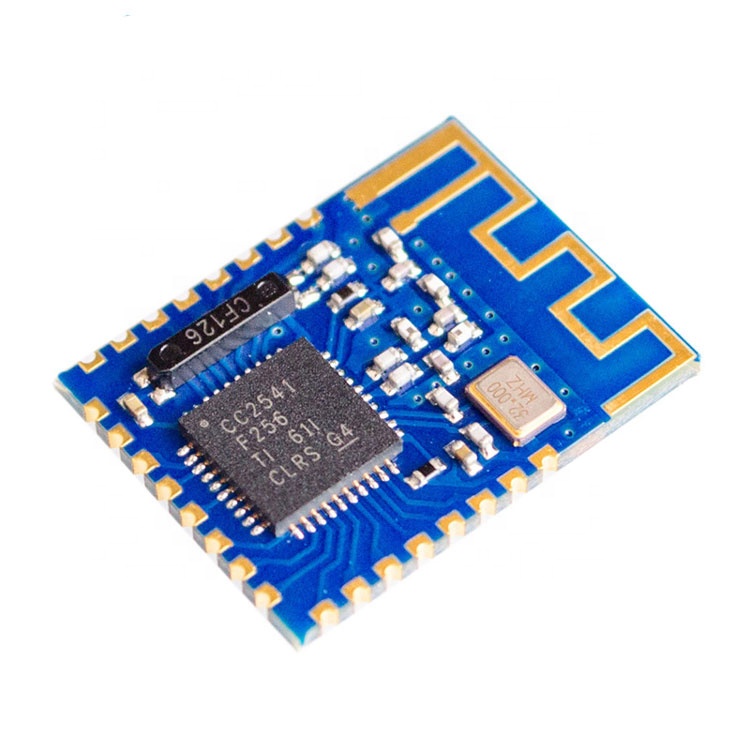

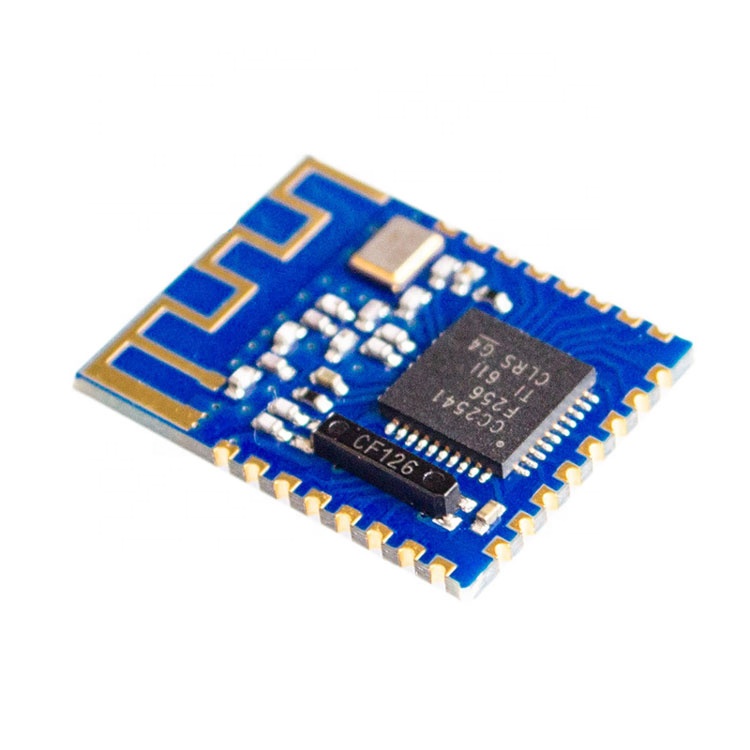

BLE 4.0 IBEACON BT Low Power 2.4G RF CC2541 Module
Click on the image to view the original image
Product： views：4BLE 4.0 IBEACON BT Low Power 2.4G RF CC2541 Module
Branch： original new
Type： Drive IC
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 02:45
  Negotiated
Product Details
Overview
Quick Details
D/C:
18+
Model Number:
JDY-08
Type:
Drive IC
Brand Name:
original new
Place of Origin:
Guangdong, China
Operating frequency range:
2.4G
main chip:
CC2541
Operating voltage:
1.8-3.6v (recommended 3.3v)
antenna:
built with PCB antenna
transmission distance:
60 meters
Skype:
ruizeinc_1
Supply Ability
Supply Ability:
8000 Piece/Pieces per Day
Packaging & Delivery
Port
Shanghai, Ningbo, Hongkong, Shenzhen or any other China port
Lead Time:
Quantity(Pieces)1 - 8000 >8000
Est. Time(days)3To be negotiated
Product Description

The Module transparent transmission module is based on BT4.0 protocol standard, with 2.4ghz working frequency range and GFSK modulation mode.The maximum transmitting power is 0db and the maximum transmitting distance is 60m. TICC2541 chip design is adopted to support users to pass AT life. To modify the device name, service UUID, transmission power, pairing password and other instructions, convenient and flexible use.



Function introduction

  1. WeChat transparent transmission (support AirSync protocol, apply to WeChat H5 or manufacturer server communication)
  2. APP transparent transmission (supports Android and IOS data transparent transmission)
  3. iBeacon mode (support WeChat shake protocol and apple iBeacon protocol)
  4. Sensor mode (temperature, humidity and many other sensor data acquisition applications)
  5. host transparent mode (data transmission between application modules, communication between host and slave)
  6. host observer mode (application sensor, indoor positioning)
  7. PWM mode (used for motor speed regulation and LED brightness adjustment)
  8. IO mode (for mobile phone control relay or LED on and off)
  9. Indoor location application (collect iBeacon data to achieve range positioning)
  10. RTC function
  11. support LED lamp products (with 26 fixed modes, customized modes and panel modes) and working mode.Can choose jump, gradient, stroboscopic.
  12. support massager products. By default, the built-in massager includes warm massage, comfortable massage, pulse massage and other methods
  13. support iBeacon probe function
  14. 14: support RTC timing function
