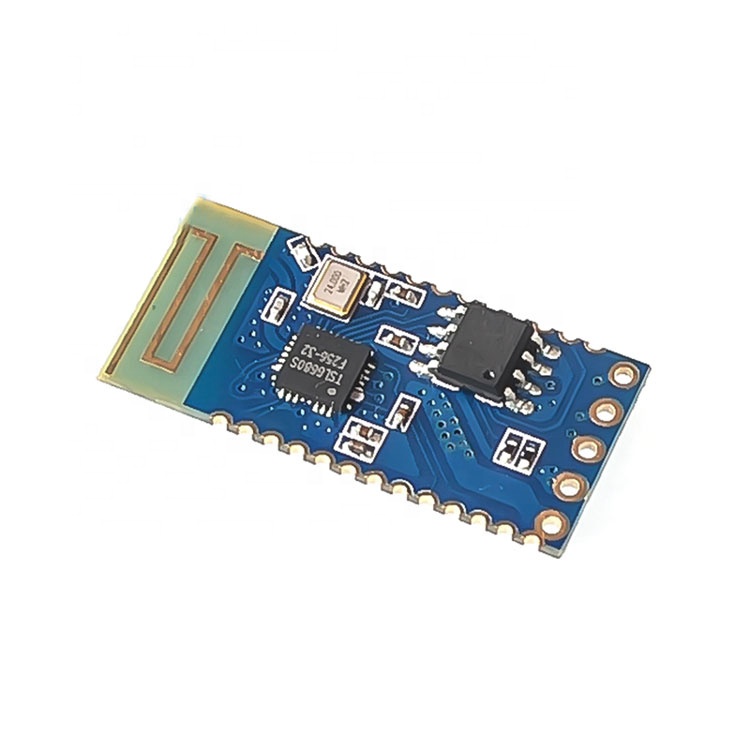

Product Description
| Working frequency band | 2.4ghz |
| Communication interface | UART |
| Operating voltage | 1.8-3.6v (recommended 3.3v) |
| Working temperature | 40 ℃ to 80 ℃ |
| antenna | built with PCB antenna |
| The transmission distance | 40 meters |
| Master slave support | slave machine |
| Module size | 19.6 * 14.94 * 1.8mm (length, width and height) |
| BT version | BT 4.2 BLE/BT 3.0 SPP |
| M STM welding temperature | < 260 ℃ |
| Broadcast current | 4.4ma |
| After E BLE is connected | 3.8ma |
| P the current after SPP connection | 12mA |
| Transmission power | 5db(maximum) |
| Receiving sensitivity | -97dbm |
| P SPP maximum throughput | 14.4k bytes/s(android) |
| E BLE maximum throughput | 5K bytes/s(ios) |
| E BLE service UUID | FFE0 |
| Transmission feature UUID | FFE1 |
- Needle arrangement application: the specification of needle arrangement is standard 2.54 spacing needle arrangement, only 5 pin holes on the welding module are needed.

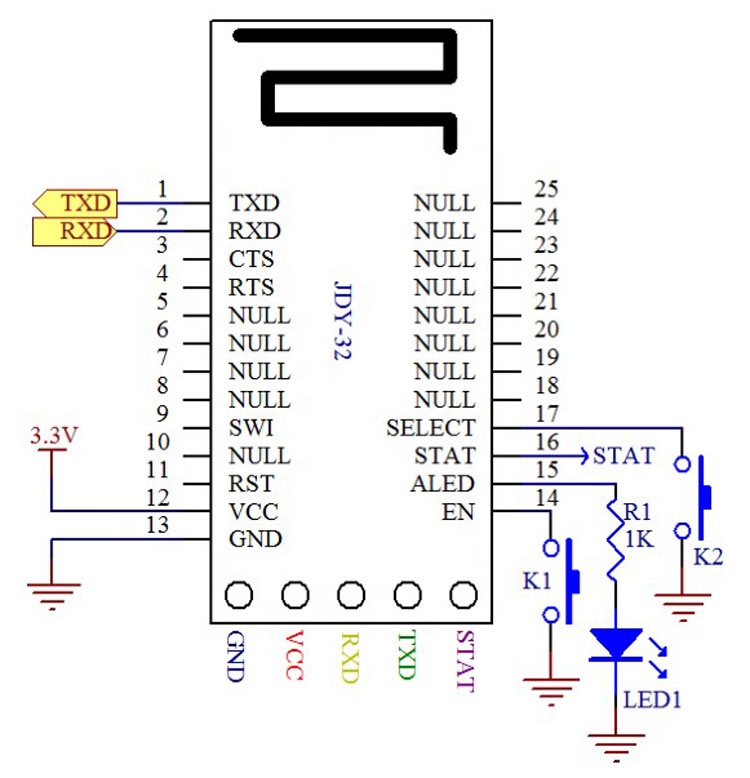

- Patch application: in general, only 4 pins including VCC, GND, RXD and TXD need to be connected for the application, if necessary State, need to send disconnect instruction after connection, need to connect SELECT pin, SELECT pin in connection state low level for AT instruction mode, high level for transmission.
