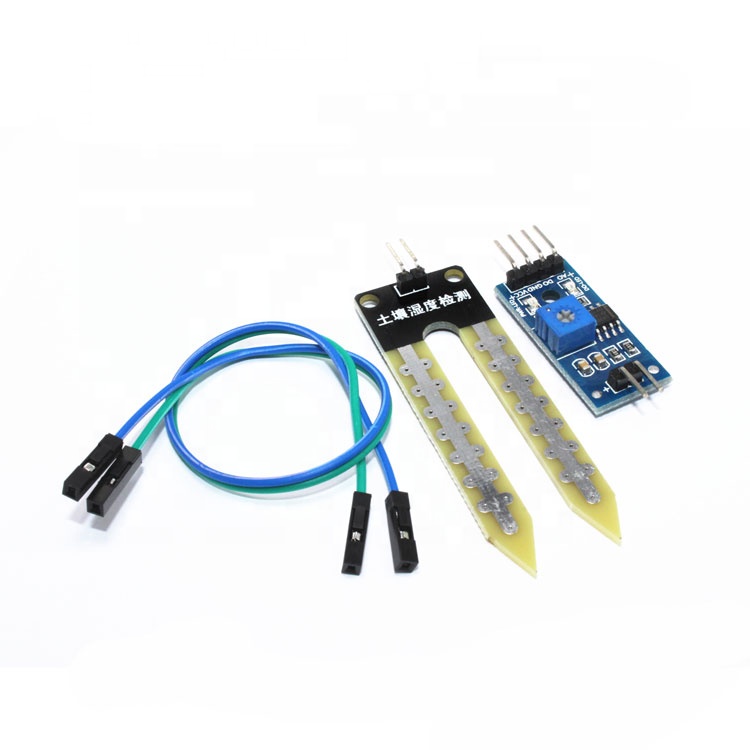

Click on the image to view the original image
- This is a simple moisture sensor that can be used to detect soil moisture. When the soil is short of water, the module outputs a high level and vice versa.Use this sensor to create an automatic flower watering device that lets your garden plants be managed by no one.
- Adjustable sensitivity (blue digital potentiometer in the figure)
- Working voltage 3.3v-5v
- module dual output mode, digital output simple, analog output more accurate.
- Fixed bolt hole is provided for easy installation
- small PCB size: 3cm * 1.6cm
- Power indicator (red) and digital switch quantity output indicator (green)
- The comparator USES LM393 chip and works stably
Working Instruction
- The soil moisture module is the most sensitive to environmental humidity and is generally used to detect soil moisture.
- When the soil humidity of the module fails to reach the set threshold, the DO port outputs a high level. When the soil humidity exceeds the set threshold, the module D0 outputs a low level.
- The digital output D0 of the small plate can be directly connected with the microcontroller, through which the high and low level can be detected to detect soil moisture.
- small plate digital output DO can directly drive the store relay module, buzzer module, etc., which can constitute a soil moisture alarm equipment;
- AO output of small plate simulation quantity can be connected with AD module, and through AD conversion, a more accurate value of soil moisture can be obtained;
