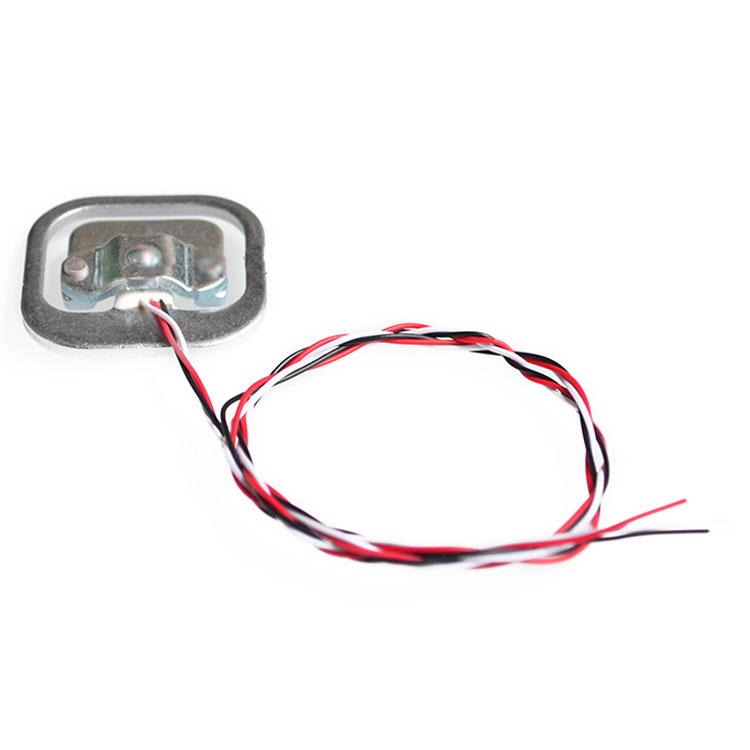

The internal strain gauge is 1000 euro half-bridge, the measuring range is 50kg weighing sensor, and the half-bridge structure.
Applying force measurement, the side outside right, E glyph strain beam part of the sensor (the middle of strain gauge, with white coated plastic beam arm) in the opposite direction from the outer side to form a shear force, the strain in the middle of the beam under the force necessary changes can be bent, strain beam bearing surface on the other side there shall be no obstacles.
Inside the sensor is a group of half-bridge strain gauges, which can be used in the following three ways:
- Use a sensor with external resistance to make a full bridge measurement. The measurement range is 50kg for one sensor.External resistance requirements are high.
- Two sensors are used to make the full bridge measurement, and the measurement range is the sum of the two sensors: 50kgx2=100kg
- Use four sensors to make the full bridge measurement, and the range is the sum of the range of the four sensors: 50kgx4=200kg
