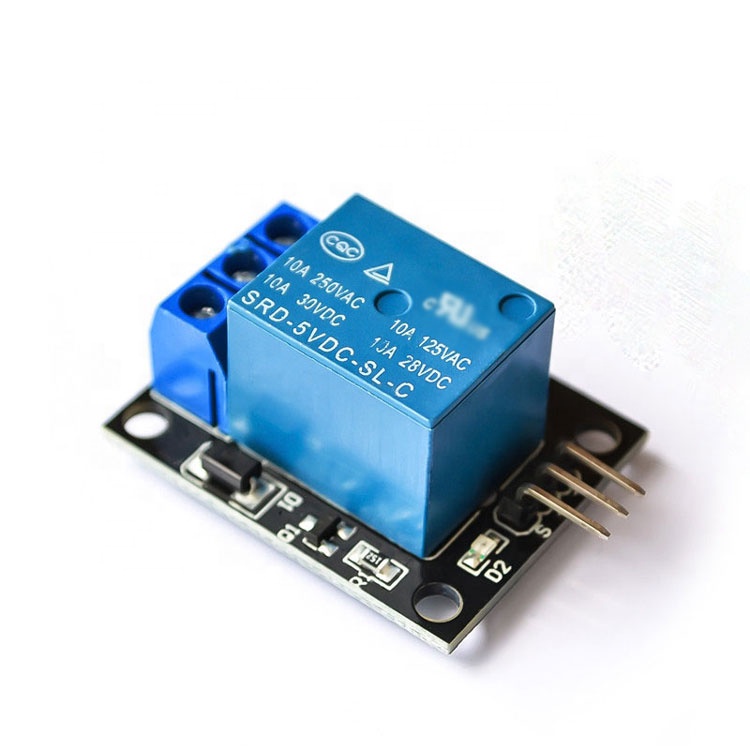

Click on the image to view the original image
- Output driving capacity: 250vac-10a, 125vac-10a, 30vdc-10a, 28vdc-10a;
- Easy to use, each group output simple 3 line structure, reserved 6 output terminals;The input is directly connected to the IO port or digital circuit of the single-chip microcomputer. The input high level relay is absorbed and the input low level relay is released.
- Working voltage: 5V, suction current: about 70mA per circuit, with relay status indicator;
- Full patch element, the most reasonable drive circuit design, using 8050 transistor drive relay action;

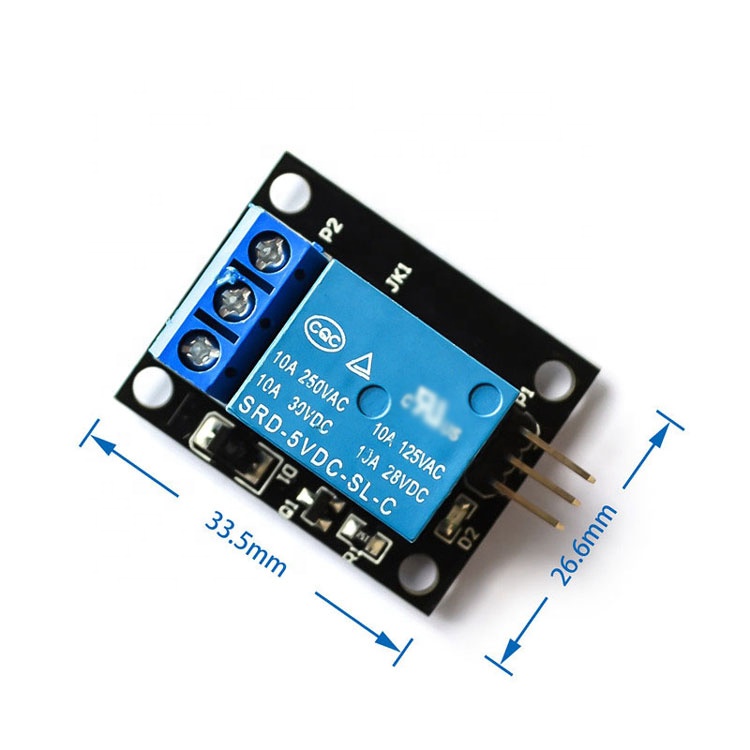

- Fixed screw holes are provided for easy installation. The size of the circuit board is 1.8cm*4.0cm*1.9cm, and the weight is 15g.
- Simple test instructions: after the module input and output electrical insulation are provided with the correct voltage, only high level (such as short circuit with VCC) is connected on the input pin to enable the relay to absorb, not connect or connect low level (such as short circuit with GND) relay does not operate.
