Shenzhen Ruize Technology Co., Ltd.

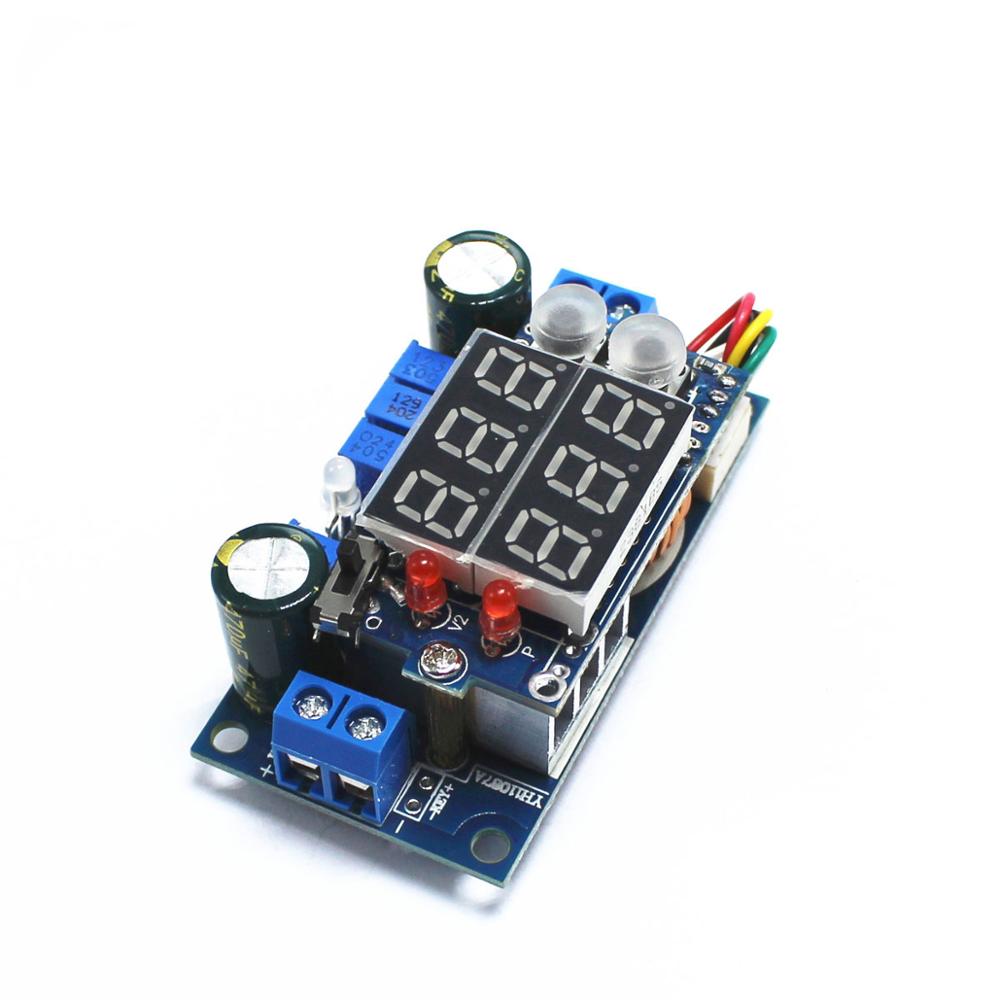

 5A step-down constant pressure constant current module with MPPT function. Charging the battery with solar panel can increase the charging current more than double, effectively shorten the charging time and reduce the volume of solar panel.It can charge battery, lithium battery and so on.Can be equipped with multifunction voltmeter, input voltage, output voltage, output current, output power can be directly displayed, completely off the use of multimeter.It can be used as high power LED drive module.

Parameter:

1. Input voltage: 6-36v
2. Output voltage: 1.25-32v continuously adjustable (default output is 5V).                                                                                 1.25-32v fixed delivery is adjustable output
3. MPPT voltage setting range: 6-36v

4. Output constant current range: 0.05-5a long working current recommended in 3A (output constant current is 3A)

5. Output turn lamp range: 0.01-5a (turn lamp current is 0.3a)
6. Working temperature: -40~+85 degrees
7. Working frequency: 180KHz
8. Conversion efficiency: up to 95% (efficiency is related to input, output voltage, current and pressure difference)
9. Short circuit protection: available (limit current to set constant current value)
10. Overtemperature protection: available (automatically shut off output after overtemperature)
11. Input reverse protection: none, (if necessary, diode in the input string)
12. Output protection against reverse irrigation: none, output to the battery must be added anti-diode, otherwise it will burn out the module!Remember that!(there are reserved anti - reverse diode positions, you can add them yourself.The method shown below) can also be selected for our ideal diode, with less loss and higher utilization of solar panels.
13. Charging indicator: red light on charging and green light on full charge.Turn - lamp detection is current.When solar panel power is used, the solar hour charging current is also very small, lower than the rotating lamp current, and the green light will be on, but it is not full at this time, please note the difference.A charge current can be seen more directly from a charged meter.
14. Installation: 4 3mm screws
15. Wiring method: the terminal (welding line output when the enclosure is provided) IN is the input and OUT is the output
16. Module size: 60mm long, 31mm wide, 22mm high (without meter head)

Note: the current detection of the module is low-end detection. Please do not connect the negative pole of the input and the negative pole of the output directly with the wire.

Application scope:

1. DIY a stabilized voltage power supply with constant current function. It is not afraid of short circuit during use, which can protect the load.
2. Power your electronic equipment.
3. Charge various batteries. Set charging voltage and charging current according to different voltage and capacity.
4. Use solar panels to charge all kinds of batteries, with MPPT function, which can double the charging current.With constant current function, can prevent the battery overcharged, effectively protect the battery.
5. Drive high-power LED, freely combined series and parallel,
6. As on-board power supply, power supply for your mobile phone or various digital products.
