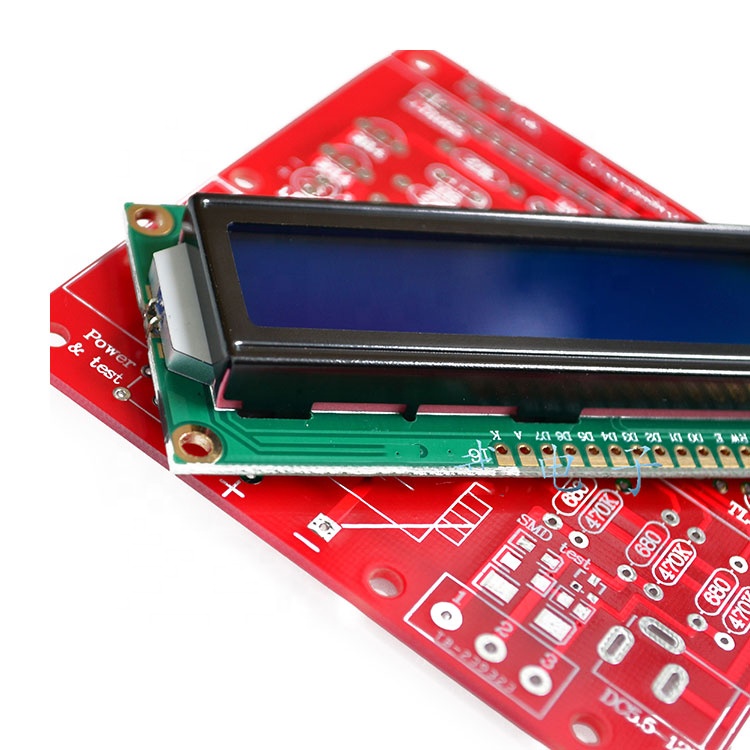

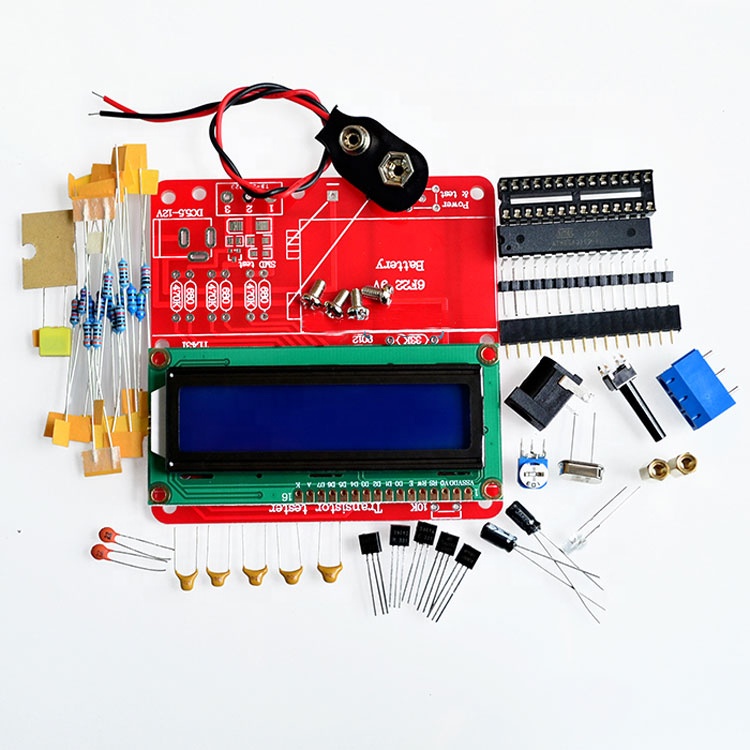

This is a more intelligent measuring instrument than a multimeter. It is a good helper for electronic enthusiasts. It has a powerful measuring function.With a battery-powered portable design, you can even take it to the store to pick out components!At the same time, it has the function of external power supply.
Founction Introduction
- one-button measurement operation, automatic power shutoff by delay.Turn off the current only 20nA, support battery operation.
- automatic detection of PNP and NPN bipolar transistors, N, P channel MOSFET, JFET field effect tubes, diodes, double diodes, SCR, resistance, capacitance, inductance.Automatic detection pin definition.
- measure the current amplification factor (B) and the conduction voltage (Uf) of the emitter junction of bipolar transistors.Darlington transistors can be identified by high threshold voltage and high current amplification factor.
- bipolar transistors and protective diodes inside MOSFET can be detected and displayed on the screen.
- measure threshold voltage and grid capacitance of MOSFET.
- supports the measurement of two resistances, and the potentiometer can also be measured.If the potentiometer is adjusted to one end of it, the tester cannot distinguish between the middle and end pins.
- the resolution of resistance measurement is 0.1 ohm, and the highest measured value is 50M ohm.
- capacitance measurement range from 25pf to 100mF (100,000 UF).Resolution up to 1 pF, inductance range 0.01MH-20H, below 0.01MH will be displayed as resistance.
- the equivalent series resistance (ESR) of capacitors above 2UF can be detected with a resolution of 0.01 ohm.This function is very important for measuring capacitance performance.
- it can display the symbol of the correct direction for two diodes, and show the forward pressure drop at the same time.
- the LED is tested as a diode, and the forward pressure drop is higher than the normal value.Double led detection is double diode.Detect at the same time the led will shine.
- each test will take about two seconds, and only large capacitance and inductance measurements will take longer
