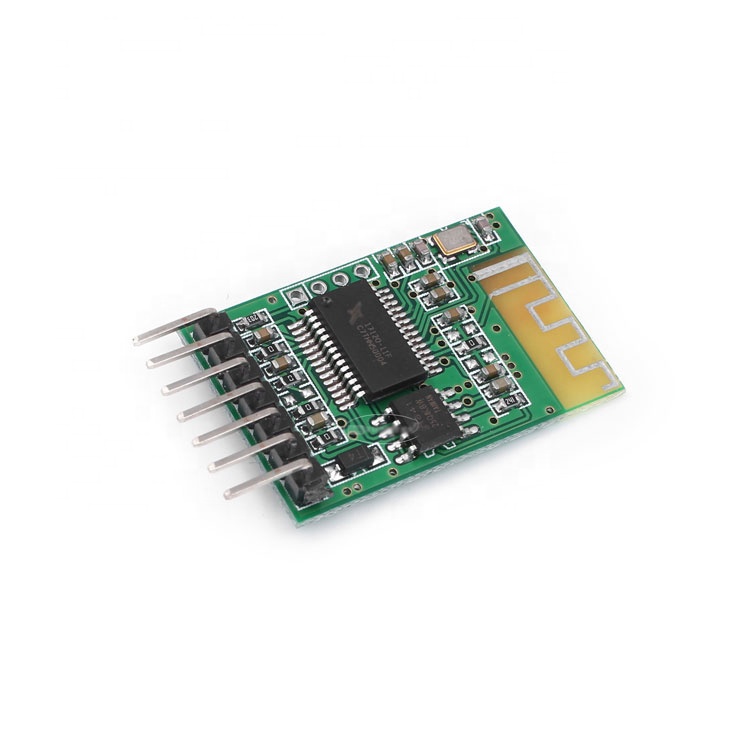

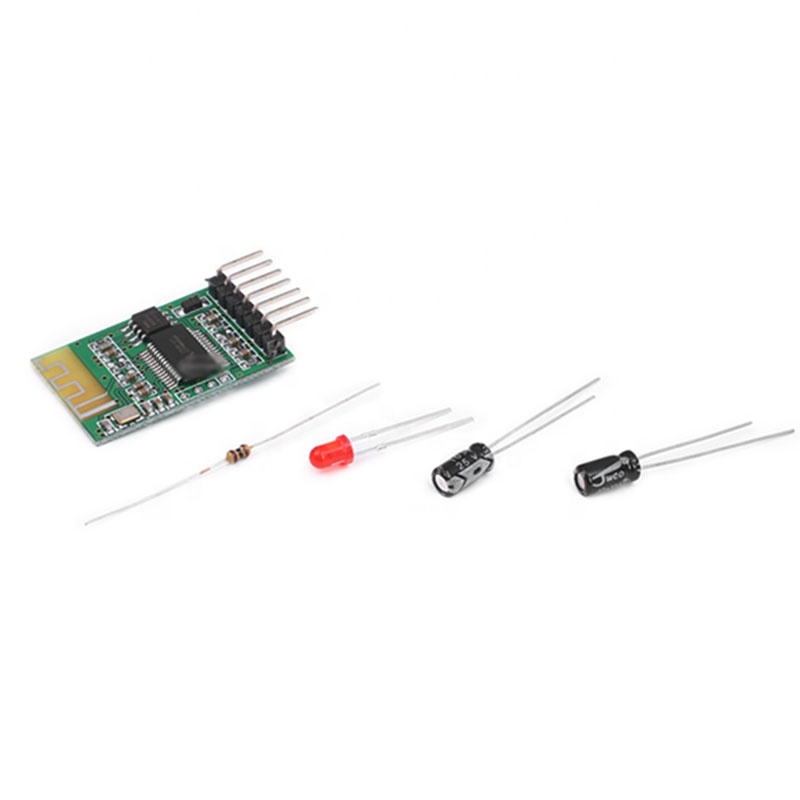

The stereo output of the module, the built-in bluetooth antenna is simple, the power supply voltage is 3.7v ~5V, and the active speaker adds bluetooth connection function.The 7PIN output interface is the spacing 2.54 through hole, and the 7PIN output interface is: + power supply, ground, left sound channel, right sound channel, mute, LED status indicator, reserved port.Where, the LED status port is connected to a 100-ohm resistance serial LED indicating that it is connected to the ground. When the bluetooth is not connected, it is a quick flash; when the bluetooth is connected successfully, it is a slow flash.The volume is: 30mm X 20mm X 3mm.
