| product specification | |

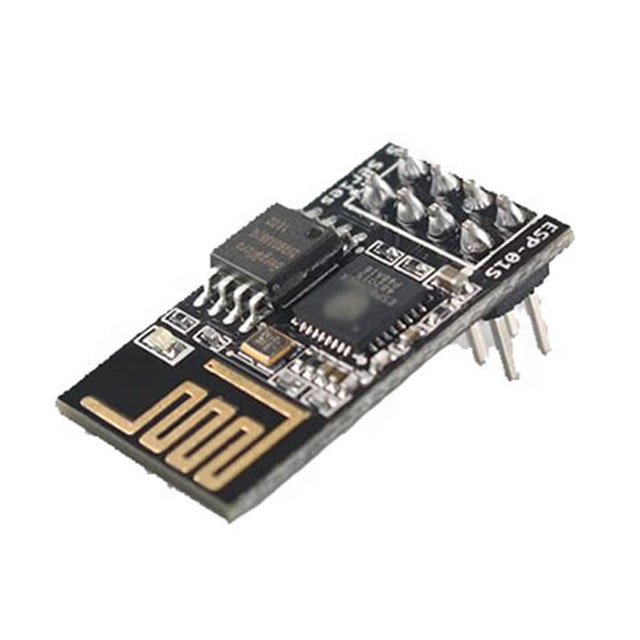

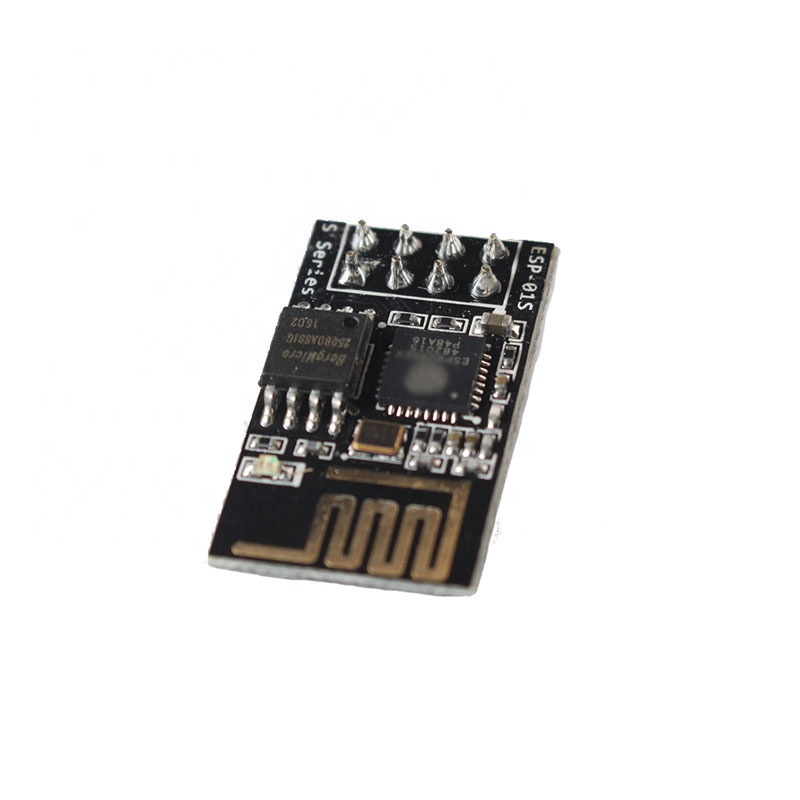

| Module | ESP-01S |
| Size | 14.5*24.5mm |
| SPI Flash | Built in 8MBit |
| Interface | UART/GPIO/ADC/PWM |
| IO Port | 9 |
| Serial Rate | Support 300~4608000bps,default 115200bps |
| Spectrum range | 2412~2484MHz |
| Antenna Type | Built-in:PCB antenna |
| Secondary development | Support |
| Transmit power | 802.11b:16±2dBm(@11Mbps) 802.11g:14±2dBm(@54Mbps) 802.11n:13±2dBm(@HT20,MCS7) |
| Receiver sensitivity | CCK,1Mbps:-90dBm CCK,11Mbps:-85dBm 6Mbps(1/2 BPSK):-88dBm 54Mbps(3/4 64-QAM):-70dBm HT20,MCS7(65Mbps,72.2Mbps):-67dBm |
| Security | WEP/WPA-PSK/WPA2-PSK |
| Power supply range | Voltage: 3.0~3.6V,Current: >300mA |
| Chip | Network protocols | Data transmission speed | Range of communication |
| ESP8266 | ESP_NOW | <10 kbps | <50m |
| ESP32 | Wi-Fi+ESP_NOW | <10 kbps | 100m |
| ESP32 | Wi-Fi+BTLE | <1 Mbps | <100m |
| ESP8266 | Wi-Fi +ESP_MESH + ESP_NOW | <1 Mbps | >100m |
| ESP8266 | Wi-Fi+ESP_MESH | ~1 Mbps | >100m |
| ESP8266+ESP32 | Wi-Fi+ESP_MESH +ESP_NOW+BTLE | ~1 Mbps | >300m |
| ESP8266 | Wi-Fi | <10 Mbps | 100m |
| ESP32 | Wi-Fi HT40 | ~100 Mbps | <30m |
| ESP32 | Wi-Fi HT40 + BTLE | ~100 Mbps | <30 |
