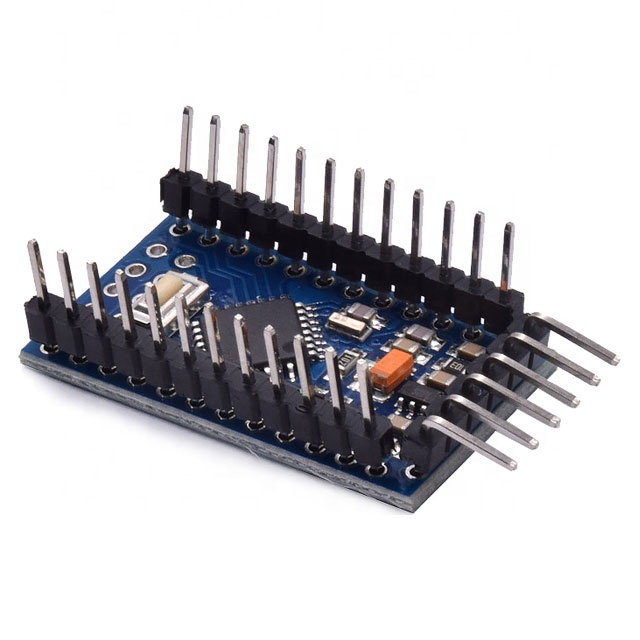

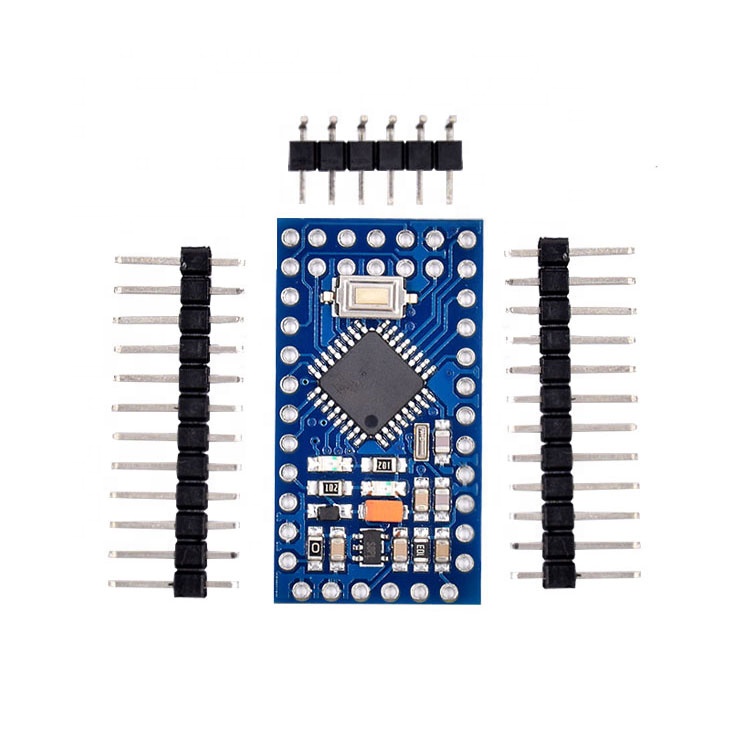

The professional Mini Pro is a microcontroller circuit board.It has 14 digital input/output pins (6 of which can be used as PWM output), eight analog inputs, a 16MHz resonator, a reset button, and mounting hole pins.
Technical parameters:
1. 14 digital input/output ports RX, TX, D2~D13,
2. 8 analog input ports A0~A7
3. 1 transceiver port RX/TX of TTL level serial port
4.6 PWM ports, D3, D5, D6, D9, D10, D11
5. atmega328p-au microcontroller is adopted
6. Support serial port download
7.Support external 3.3V~12V dc power supply power supply
8.Support 9V battery power supply
9. Clock frequency 16MHz
10. Size: 33.3*18.0 (mm)
