Click on the image to view the original image
- Brand Name:
- SANFORCE or OEM
- Bulb Type:
- LED
- Battery Type:
- Ni-Cd
- Material:
- ABS plastics or steel plate
- Usage:
- emergency lighting
- Certification:
- CE
- Specifications:
- 12W
- Color:
- Silver
- Input Voltage:
- 85V-265V 50/60HZ
- Charge time:
- 24hrs
- Warranty:
- 3 Years
- Emergency Time:
- 1.5Hrs
- Emergency Power:
- 12W
- Output Voltage:
- DC20~47V
- inverter Size:
- 155*40*30mm
- remote packs size:
- customized
- output current:
- 310mA
- Supply Ability:
- 20000 Set/Sets per Month
- Packaging Details
- Standard export carton or customized
- Port
- Shenzhen or Hongkong

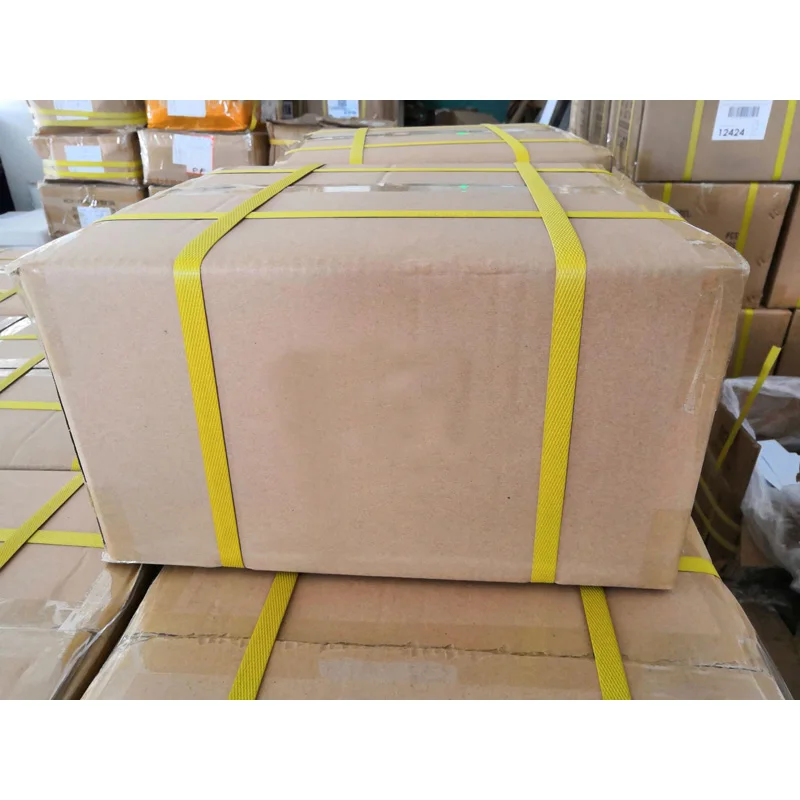

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 500 501 - 1000 1001 - 2000 >2000 Est. Time(days) 10 15 20 To be negotiated
LED emergency power supply is designed specifically to suit Constant Current type LEDs and ciruits.Utilizing DC/DC switcher circuitry.Product is compatible with wide range of LED fixture ideal for LED panel light light,LED down light and many others with extermal LED driver and low voltage(6~90),emergency output power 5%~100%.
Lighting Power | 30W |
Applicable for | LED Panel lights |
Inner package material | ABS enclosure |
Charging power | AC85V-AC265V,50HZ/60HZ; |
Emergency time | 90mins |
Emergency power | 12W |
Emergency Conversion time | 0.1sec |
Charging time | 24h |
Battery size | 12V/2000mAh |
Emergency output voltage | DC20~47V |
Inverter dimension | 155×40×30mm |
Description
Rechargeable battery pack inverter power is designed specifically to suit constant current type leds and circuits, utilizing dc/dc switcher circuitry.
LED panel/downlight emergency battery backup system is compatible with range of led fixture ideal for led panel light, led downlight and many other led lighting with external led driver and low voltage 6~90V, emergency power 5%-100% and 30~180 minutes duration.
Lamp is lit by driver in normal working conditions, when main is failure, lamp is lit by battery via inverter/module.
Features
- IC controlled Dual rate Charger for energy savings.
- Short circuit protection at battery terminals.
- Battery reverse protection functionality
- Charge indicator and test button. The light fittings guarantee safety of people in buildings open to the general public.
- Automatically actuated in the event of power cuts, these devices (kit + light fitting) offer a good luminous flux to facilitate the evacuation.
- Comply with European standards EN 61 347-2-7 and offer a high level of quality and safety meeting the various prevailing regulations.
- Dial the code to suitable voltage of luminiares.1 or 3 h rated duration.
- Constant current output,emergency power is vaired by lighting output voltage, automatically match with the lighting setting to provide best illuminations.
Emergeny Converter size
Installation Diagram
Sanforce is a manufacturer specializing in emergency conversion kits for LED and fluorescent lighting since 2008.
We cooperate with valuable supply chain, inspect all the incoming materials and set up strict product assurance system, such as SMT, Auto Aging test, Simulation test during our production process. We have very skillful and responsible workers, most of them have been working here over 6 years.
With strong technical support and customer- oriented service, you can be sure that Sanforce is ready to support you, whatever your needs.
1.What is your main product line is made?
We are dedicating to LED emergency power pack for commercial lighting, research,
manufacturing and sales, aiming to be a leading emergency lighting backup power producer.
Our main products include:1). Constant current output of Led conversion kit for LED panel
light, LED down lights and other LED light applications with external driver. Emergency
output power differed from 5-90% according to customer’s requirement.
2). 100% emergency output power of emergency kits for LED tube with AC220V or DC110-150V
output.
3). Emergency lighting battery packs for Fluorescent tube 14-98W.
4). High Temperature rechargeable NiCD and NiMH battery pack for emergency control gear
5). Emergency LED T8 tube and min LED T5 3W-4W
6) Constant power emergency kits.
2.Can inverter be commonly used for any type of light applications?
No. It must be confirmed with us case by case
3.Does battery have an end-of-charge detection/over voltage protection?
No, The battery is being charged all the time, The charging current will be decreased based
on the capacity status during the charging process. For NiCD and NiMH battery, it is
applicable for constantly charging without any risk even though no over voltage
protection. But under voltage protection is set up for discharging.
4.You have the ability to do independent research and development?
Our engineering department has 3-5 people, we have the research and development
capabilities. We also collect each customer’s feedback regularly, We have the ability on
product improvement and new product development.
