China manufacture lubrication oil ipl elight filters in stock
Feature:
IPL Filter is the key optical element for IPL (intense Pulsed Light) machine, which filter the UV wave and reserve the useful wave from 400nm to 1200nm for cosmetic laser, such as hair removal, vascular and acne treatment.
Technical parameter:
filter size | 72mm*33mm/72mm*40mm/72mm*35mm |
Wavelength option | 430/480/530/560/590/640/690/750-1200nm |
Material | Optical grade single crystal sapphire |
Dimension Tolerance | ·+/-0.1(General), +/-0.01(High Precision) |
Thickness Tolerance | +/-0.2 (General), +/-0.005(High Precision) |
Surface Quality | 60/40 |
Clear Aperture | :>90% |
Parallelism | 3 min |
Bevel(face width x45°) | 0.2~0.5mm |
Wavelength | Filter color | light spot | suit machine | Usage |
380nm | lucid | 15×50mm/15×35mm | IPL/Elight | Acne Removal |
430nm | lucid | 15×50mm/15×35mm | IPL/E-light | Pomple Removal |
480mm | lucid | 15×50mm/15×35mm | IPL/E-light | acne removal |
530mm | red | 15×50mm/15×35mm | IPL/E-light | Speckle Removal |
560mm | red | 15×50mm/15×35mm | IPL/E-light | Skin rejuvenation |
590mm | red | 15×50mm/15×35mm | IPL/E-light | Red blood Streak Removal |
640mm | yellow | 15×50mm/15×35mm | IPL/E-light | Hair removal |
690mm | yellow | 15×50mm/15×35mm | IPL/E-light | Hair removal |
750mm
| yellow | 15×50mm/15×35mm | IPL/E-light | Hair removal(white skin) |
Production process:
Raw Material(Ingredient)
The ingredients are the first step in the production process, the specific process includes: burning materials, ingredients, loading, binder, sintering.
Crystal Growth
Our company achieves mass production of yag crystal and sapphire crystal by latest crystal growing furnance.
Testing of Single Crystal Material
After crystal growth,we will test each single crystal,testing after passing will be next step
Crystal Roughing
Each crystal materila will need to be cut into the crystal, material selection, processing molding.
Crystal Finishing
Divided into: grinding and polishing. Grinding: Before polishing, grinding needs to stick into a crystal rods, grinding on the grinding disc. Polishing: After grinding, the crystals mounted on the end face polishing machine for polishing. Each base processing usually takes 6 hours.
Product Testing
For the finished product, Finished product testing:We need to check the following index: surface finish, flatness, parallelism. perpendicularity.
Coating
Coating is coated with layers ranging from film in the end face of the crystal to achieve transmition and reflection. (Coating or not according to the actual situation)
Finished product storage
The finished product will be packed in a warehouse and send you by express as soon as possible.

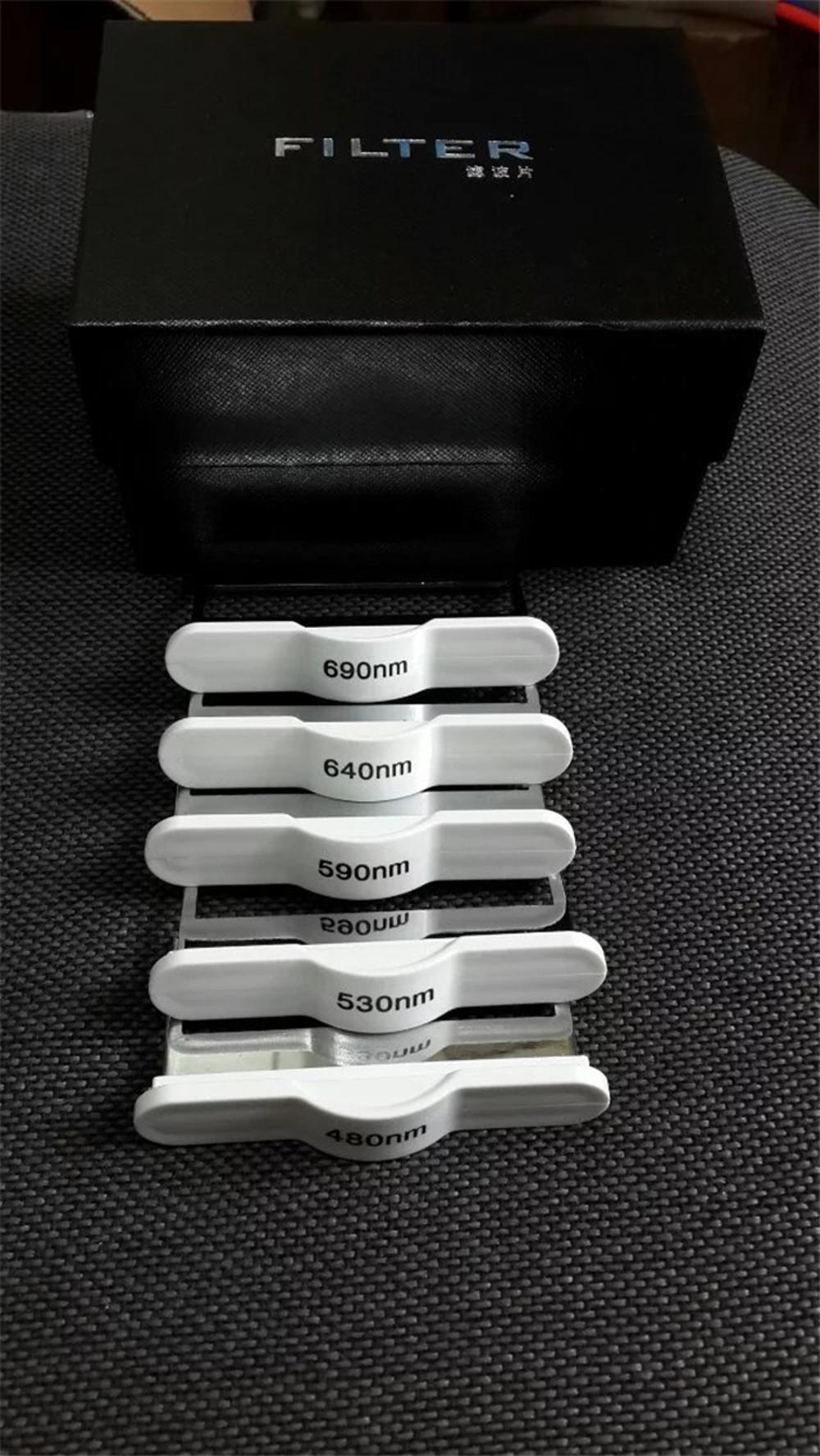

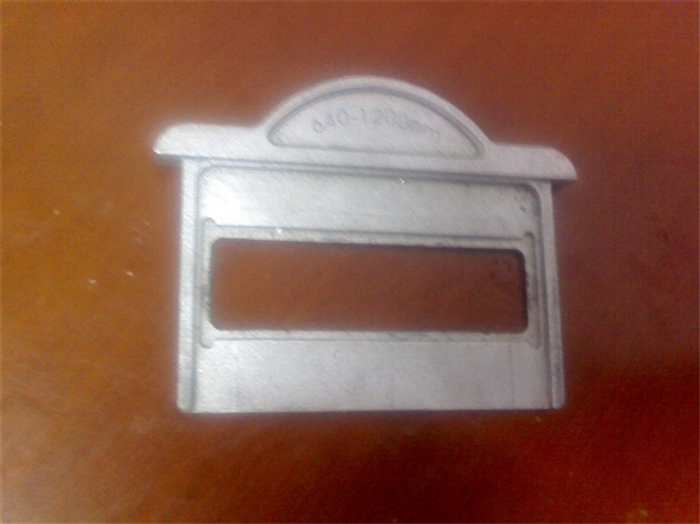

Product pictures:
1. Payment terms:
T/T, L/C, West Union which is negotiable.
Then 30% deposit, 70% balance payment before shipment.
2. Delivery method
By door to door service, say DHL,UPS,TNT,FEDEX,etc ,Or air cargo.
3. OEM service
Available
4. Guarantee
1 year since you get the products.
5. After sales service
24 hours online service in SKYPE,TRADEMANAGER,WHATSAPP type.
Whole lifetime technical support.
6. Advantage
A.Experienced Staff and R&D
B.Competitive Price with high quality
C.Delivery in time.
D.Superior Service and be at service at any time
E.Small orders welcome and hope to build long term business relationship
Shandong Langjun Precision Machinery Co.Ltd. was founded in 2004, integrating production, processing, distribution and wholesale. We specialized in manufacturing Beauty equipment accessories, such as IPL Xenon lamp,IPL handpiece,IPL filter,RF face lifting handles,IPL Plug parts,laser handle gun,laser probe,Water valve CPC,Picosecond handpiece and other sapre parts.
More than 10 years have witnessed the quality of our products. Our professionalism and concentration have been recognized by the beauty instrument industry.
Up to now, our products have exported to many countries and areas, we have enough stock for all the spare parts,customers always give highly speak of the quality and great after-sale service of our products.
Our company has many advanced equipments, senior engineers, professional technical workers and Design R&D personnel, we can design various products for your requirements.
We sincerely welcome partners (including OEM & ODM) all over the world!
