Shandong Langjun Precision Machinery Co., Ltd.

 Hot sale factory wholesale ipl filters for hair removal with factory price

Features:

IPL Filter is the key optical element for IPL (intense Pulsed Light) machine, which filter the UV wave and reserve the useful wave from 400nm to 1200nm for cosmetic laser, such as hair removal, vascular and acne treatment.

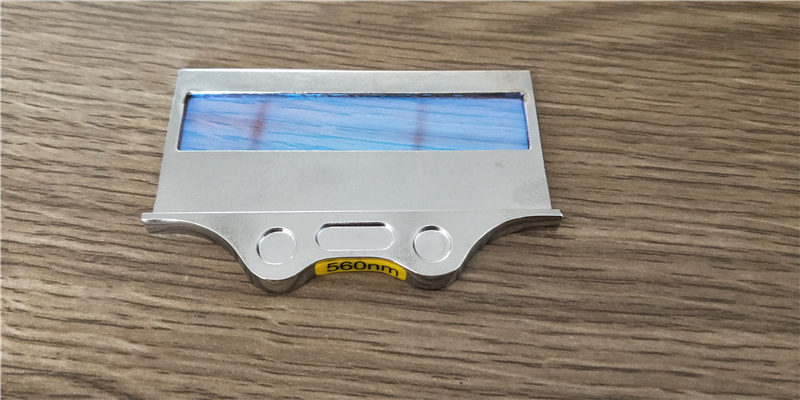

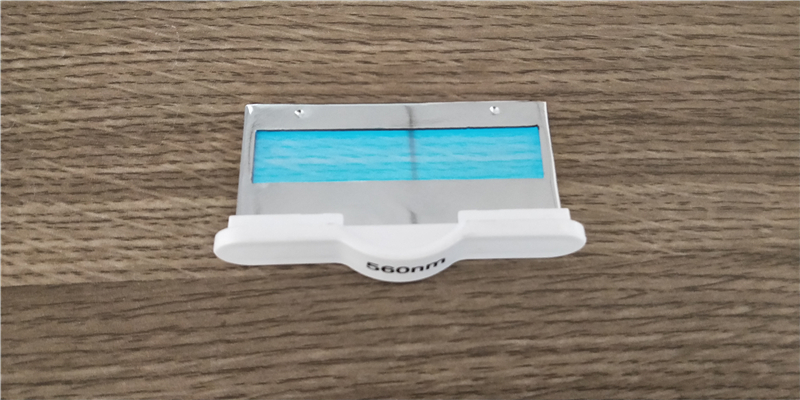

Product pictures:

Product dimensions:

Production process:

Raw Material(Ingredient)

The ingredients are the first step in the production process, the specific process includes: burning materials, ingredients, loading, binder, sintering.
Crystal Growth
Our company achieves mass production of yag crystal and sapphire crystal by latest crystal growing furnance.

Testing of Single Crystal Material

After crystal growth,we will test each single crystal,testing after passing will be next step
Crystal Roughing
Each crystal materila will need to be cut into the crystal, material selection, processing molding.
Crystal Finishing
Divided into: grinding and polishing. Grinding: Before polishing, grinding needs to stick into a crystal rods, grinding on the grinding disc. Polishing: After grinding, the crystals mounted on the end face polishing machine for polishing. Each base processing usually takes 6 hours.
Product Testing
For the finished product, Finished product testing:We need to check the following index: surface finish, flatness, parallelism. perpendicularity.
Coating
Coating is coated with layers ranging from film in the end face of the crystal to achieve transmition and reflection. (Coating or not according to the actual situation)
Finished product storage

The finished product will be packed in a warehouse and send you by express as soon as possible.
