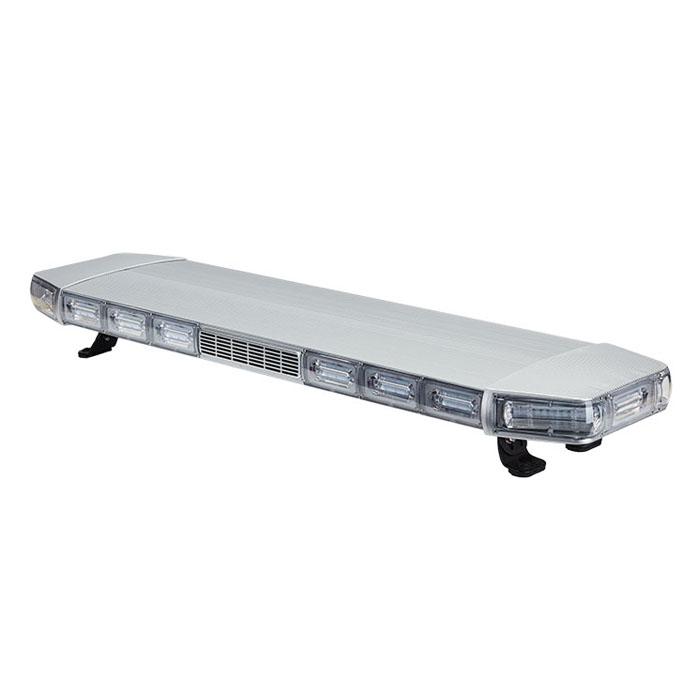

TBD330000 Series Lightbar
Product Description
Feature
- Generation III LED light heads with extreme light brightness;
- Unique self-contained reflectors with excellent light condensation at wide effective view angles;
- Weather-proof individual LED lightheads (lp67 compliance) with standard mounting, reliable and easy for maintenance;
- Low profile aluminum body with compact structure and excellent heat dissipation;
- 13 regular flash patterns and 4 traffic advisor patterns are selectable by different wirings at the terminal blocks;
- Colors are optional within red, blue, amber and white;
- Different lengths customizable.
Technical Parameters
| Model | L | W | H | WorKing voltage | Color Options | Speaker in the middle | Working current | Major light sources |
| (mm) | (mm) | (mm) | LED | |||||
| TBD335103 | 1000 | 310 | 155 | DC12V | Red,Blue, | Applicable | 10A(Max) | 16 |
| Amber,White | ||||||||
| TBD335121 | 1200 | 310 | 155 | DC12V | Red,Blue, | Applicable | 10A(Max) | 20 |
| Amber,White | ||||||||
| TBD335123 | 1200 | 310 | 155 | DC12V | Red,Blue, | Applicable | 10A(Max) | 22 |
| Amber,White | ||||||||
| TBD335124 | 1200 | 310 | 155 | DC12V | Red,Blue, | Applicable | 10A(Max) | 22 |
| Amber,White |
