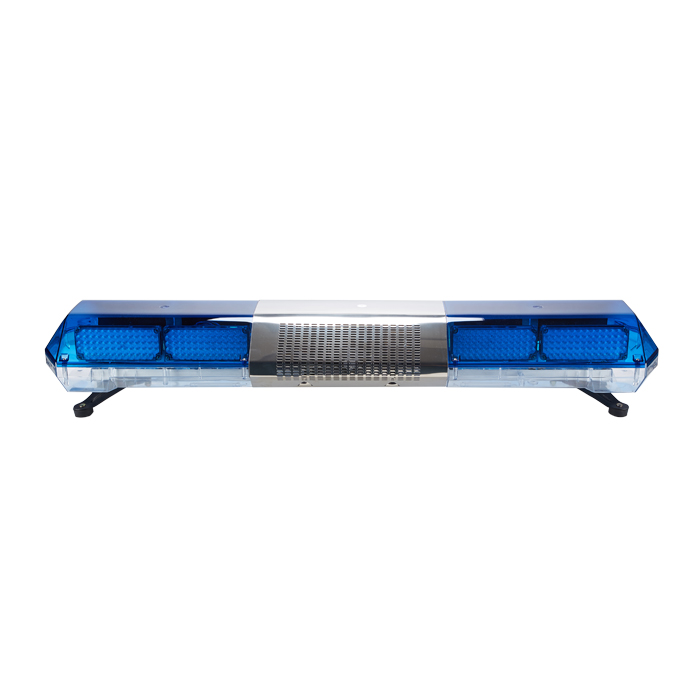

TBD080000 Series Lightbar
Features:
Beautiful looking and angular shape, suitable for various vehicles.
Halogen,LEDs are optional for light sources.
Polycarbonate lens cove,red, blue, amber or clear are available for lens color.
There are choices for this lightbar with built in speaker and without speaker.
Adjustable bracket is suitable for fixing on various vehicle roof.
Length is optional within 1200mm,1600mm,1800mm.
Product
Techenical Parameters:
Model | TBD 081121 | TBD 081131 | TBD 081161 | TBD 081181 | TBD 085121G | TBD 085131G | TBD 085161G | TBD 085181G | |
Length | 1.2M | 1.3M | 1.6M | 1.8M | 1.2M | 1.3M | 1.6M | 1.8M | |
Major light sources | halogen | halogen | halogen | halogen | LED | LED | LED | LED | |
light structure | main light | 4 | 4 | 5 | 5 | 8 LED modules | 8 LED modules | 10 LED modules | 10 LED modules |
Auxiliary light source | 6 | 6 | 6 | 6 | 2 LED modules | 2 LED modules | |||
Lighting source | 2 | 2 | 4 | 4 | |||||
Working Voltage | DC12V/24V | ||||||||
Light Power | 180W | 180W | 230W | 230W | 60W | 60W | 70W | 80W | |
Controller | DKQ-A03 or matched siren | ||||||||
Color option | red,amber,blue,clear | ||||||||
Net weight | 12KG | 12KG | 15KG | 17KG | 13KG | 13KG | 15.5KG | 16KG | |
Matched siren power | 40W,80W,100W,150W,200W | ||||||||
