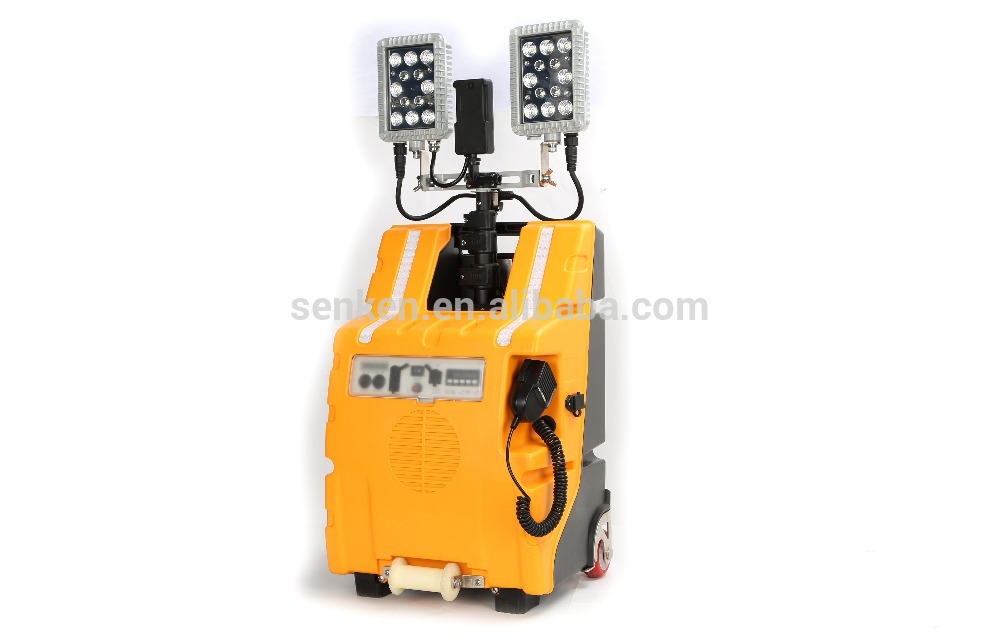

WJ892 Multi-function mobile lighting system
Waterproof level: IP65 (light head)
Windproof level : IP54 (Box body)
Application:
Mainly used in railway construction, electricity, power supply, traffic segment, flood control command, rescue of natural disasters, Interpol, traffic police and other types of crime scene, traffic accident investigation, highway checkpoints, public security emergency reserves and other Large-scale construction operations, accident repair, disaster relief and other on-site for mobile lighting.
Feature:
- Small size, light weight, It can be towed, portable, back three ways to carry. When used on a rail system, its bottom mounted rail wheel which can be used to facilitate long distance movement on the rail.
- Integrated lamp design, simple operation can be quickly applied to improve work efficiency.
- Lamp with high luminous efficiency LED light source, with spotlight / floodlight Mode. It can be used alone or at the same time. In order to meet the long-range searchlight and close working light all-round lighting needs. High lighting, wide coverage, long service life.
- Lamps using telescopic rod as a lifting adjustment method, according to the requirements of the lighting height manual lifting lamp, the maximum height of 1.8 meters. Each lamp head can do 360-degree horizontal rotation in the horizontal direction; can also do vertical flip 360 degrees in the vertical direction to provide multi-angle lighting needs.
- Lamps using a variety of high quality materials, compact structure, stable quality, reliable performance, can work in harsh environments and climatic conditions.
- High-capacity high-performance lithium battery, large capacity, low self-discharge rate. After a full charge can meet the flood light at the same time open 8 hours of work needs. And have anti-battery over-discharge and short-circuit protection. Safe and reliable
- Lamp features a variety of more humane. In addition to lighting functions, but also with camera, video, signal warning, recording, amplification, player function to meet the needs of different users.
- Compatibility, using a standard USB charging interface for mobile phones and other digital products to charge, to solve the user in the outdoor operation of mobile phones or other digital products exhausted cannot use the short board, long hours for the protection of the outdoors.
- Lighting can be charged directly to the lamp by AC220V charger to meet the lighting needs for a long time.
Technical Parameters:
No. | Parameter | Unit | Value | ||
1 | Battery rated voltage | V | DC25.9 | ||
2 | Battery rated capacity | Ah | 22 | ||
3 | light source (LED) | rated power | W | 2X30 | |
Average life | h | 100000 | |||
4 | Illumination | 50 meters at the center of illumination | lx | >30 | |
5 meters at the center of illumination | lx | >200 | |||
5 | Irradiation angle Degree | horizontal direction | Degree | ≥360 | |
Vertical direction | Degree | ≥180 | |||
6 | Lighting method |
| Spotlight / Floodlight | ||
7 | Continuous lighting time | Floodlight lighting time | h | ≥12 | |
Spotlight lighting time | h | ≥22 | |||
Spotlight / Floodlight lighting time | h | ≥8 | |||
8 | Charger input voltage | V | AC220V | ||
9 | Camera Pixel | M | 800 | ||
10 | Camera / Picture Format | / | MP4/JPFG | ||
11 | Camera storage capacity | G | 32 | ||
12 | Warning light color | / | Red (yellow / blue optional) | ||
13 | Power amplifier board (speaker) power | W | 30 | ||
14 | Battery life (cycle) |
| About 500 times | ||
15 | Charging time | h | ≤6 | ||

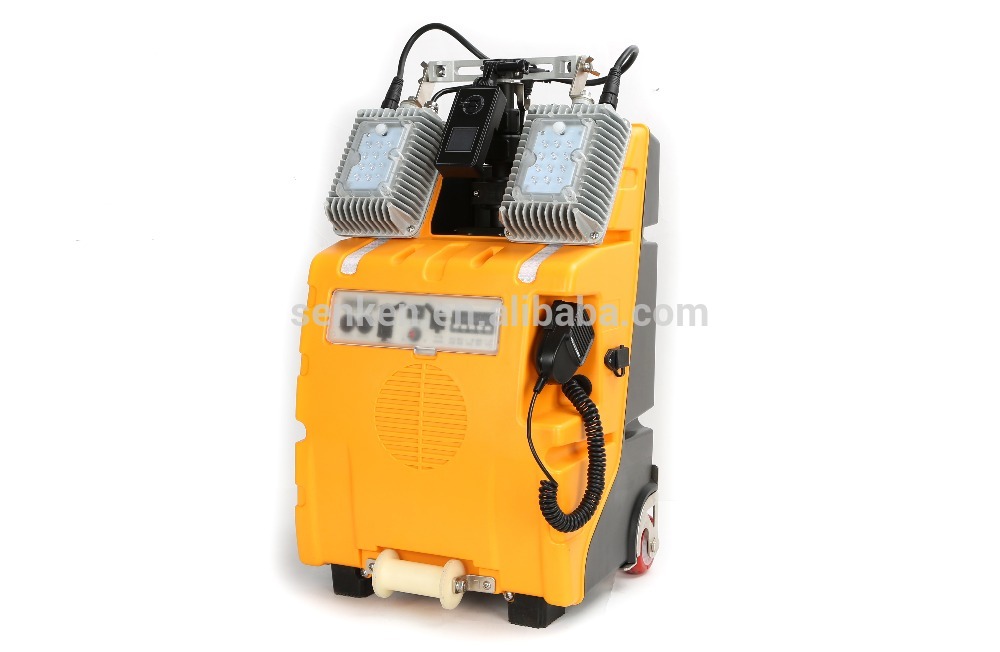

16 | Dimensions (L * W * H) | Shrinking state | mm | 620 | |
Rise state | mm | 1845 | |||
17 | Weight | Kgs | 16 | ||
18 | Use the ambient temperature | ℃ | -20~40 | ||
19 | Protection level | waterproof (light head ) | / | IP65 | |
Windproof (Box body) | / | IP64 | |||
