Product Description

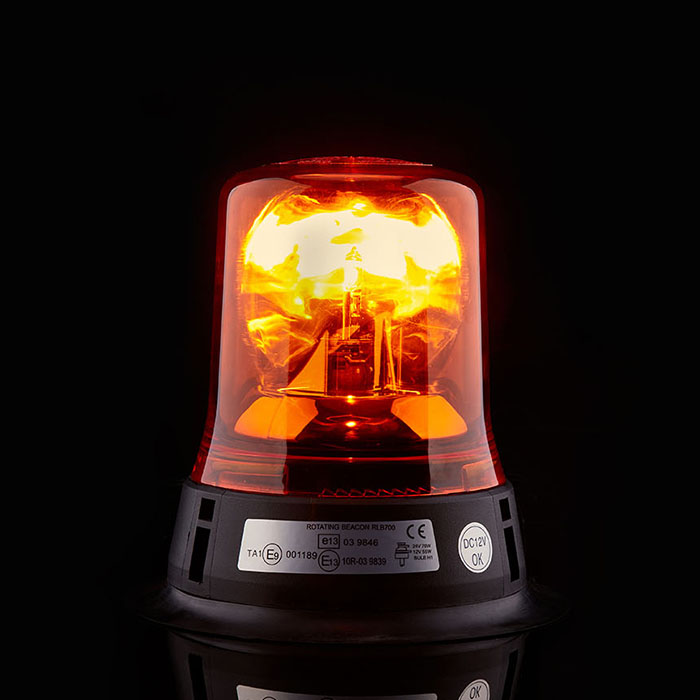

RLB708 Series senken mini rotating warning light rotary beacon for various vehicles
Features:
- Single-bolt, three-bolt, magnetic and pole mount options are available to meet needs of different mounting applications. The pole mount type features a DIN A mount specification which provides a standard mounting socket for all type of vehicle internationally.

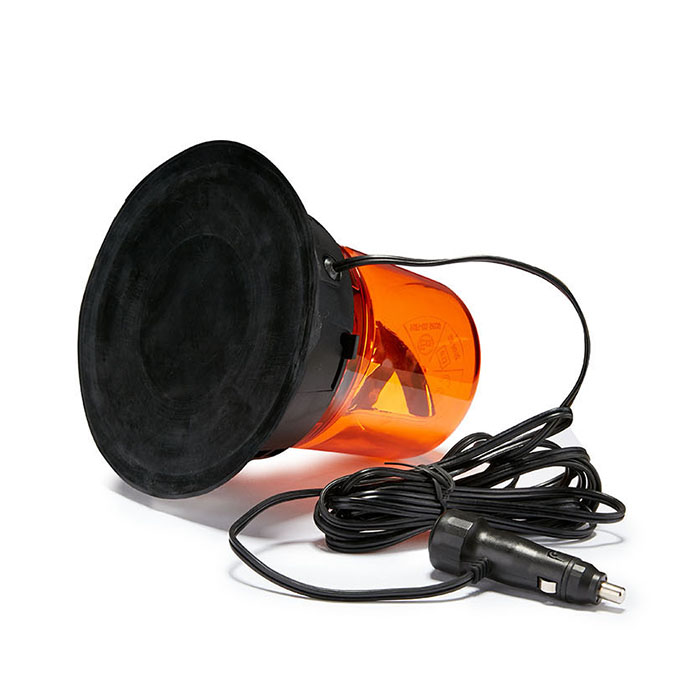

- With standard cigarette plug for magnetic version and easy wirings for all other types.
- Power rate is available in both DC12V 55W and DC24V 70W on each beacon by changing the bulb and drive belt track easily. The H1 bulb provides reliable and high brightness warning signals as well as an easy maintenance.
- Superior driven system enable a reliable and low-noise working of the beacon.
- Optimized reflector design gives an excellent light efficiency in a wide area.
- Beautiful appearance.
- Compliant to ECER65 and E-mark regulations.
Technical data:
| Model | RLB708 |
| D,H (mm) | D142, H 150 |
| Working voltage | 12V or 24V |
| Rotational speed | 180+-20 RPM nominal |
| Bulb type | Halogen H1 type, 12V or 24V |
| Operating temperature | -30F -30C to 122F 50C |
| Recommended tightening torque | Single bolt:7 Nm, Three bolt:3Nm, DIN A:3Nm |
Mounting information:
1. Magnetic mounting
2. Single-bolt mounting
3. Three-bolt mounting
4. DIN A mounting
