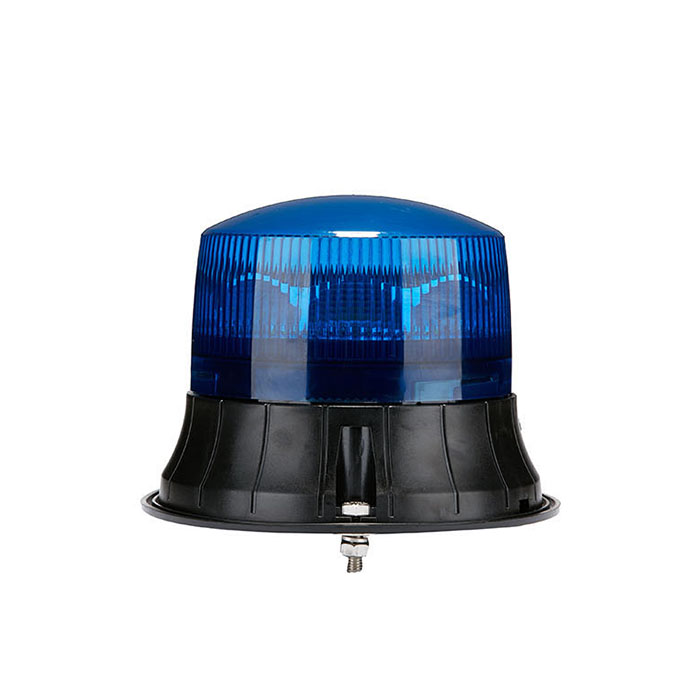

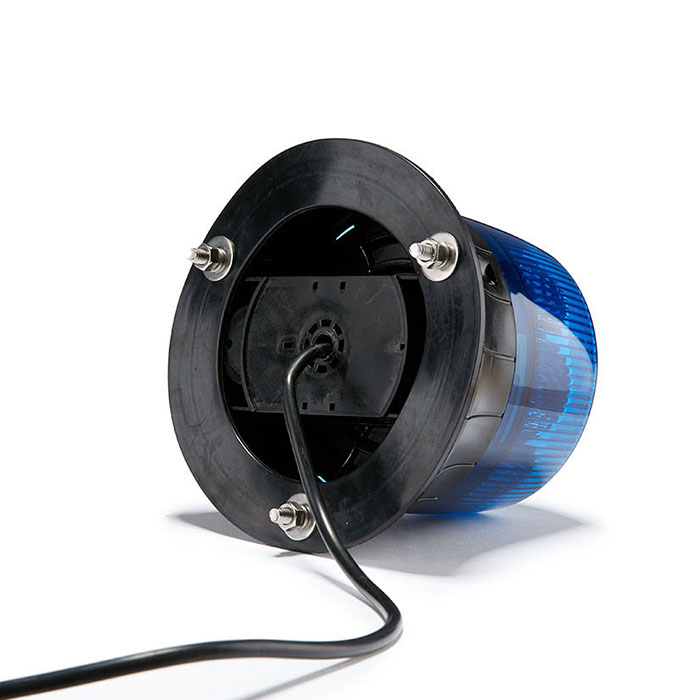

LED Rotating Beacon LTD1535/LTE1535
Product Description
Features
Colors are optional within red, blue, amber and white.
Single bolt and DINA versions are available to meet the various application demands.
The unique optical design of LED deflector to provide a focused signal for superior brightness. Potted circuit board.
Waterproof IP65.
Customized flash patterns including rotating and flashing.
ECER65, R10 approved.
Widely applied to the scope of any emergency vehicles, roadsides or other special areas.
Technical parameter
| Model | LTD1535 | LTE1535 |
| LED power | 9pcs 3W led, 27W Total | 9pcs 3W led, 27W Total |
| Voltage | DC10-30V | DC10-30V |
| Temperature | -40℃~+75℃ | -40℃~+75℃ |
| Waterproof | IP65 | IP65 |
| Flash pattern | Flash / rotating(Can be designed) | Flash / rotating (Can be designed) |
| Mounting | Magnetic | DINA/one bolt/three bolt |
| Dimension | 4.29 inches high* 5.6 inches base dimension*4.4inches lens dimension | 4.29 inches high* 5.6 inches base dimension*4.4inches lens dimension |
| Wire/cable | 2.8 meters long with cigar plug | 400mm long 3 core wire |
| Standard | ECE R65 , EMC R10 | ECE R65 , EMC R10 |
