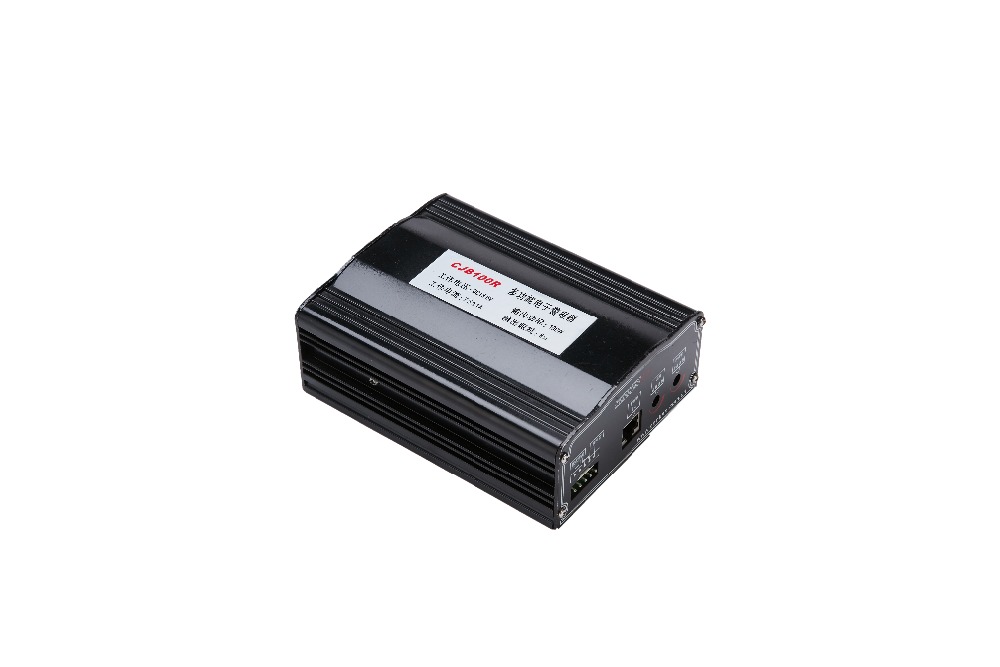

CJB-R Series Electronic Sirens
Product Description
Feature
- The design of controller separated from the mainframe significantly saves the instaIlation space.
- 7 warning tones Wail1,Wail2,Hi-Lo Yelp,Siren horn,tool,with auto memory function,function of record and radio rebroadcast.

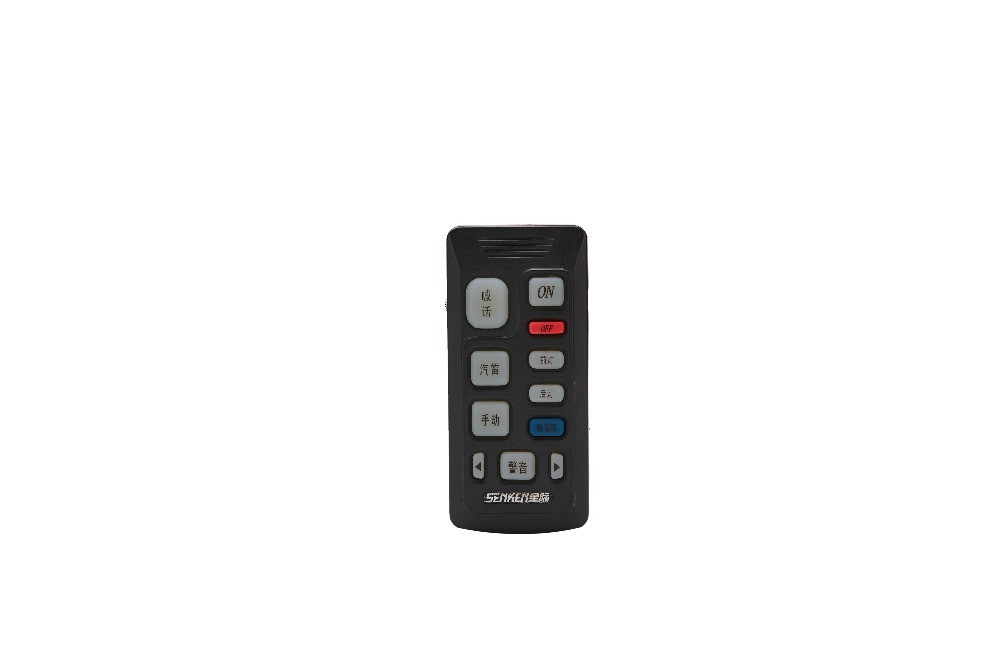

- Both KZQ01 and KZQ02 controllers are selectable to match wlth the mainframeMany power from 100Watts 150Watts,200watts,300Watts,to 400Watts are available to meet differant market demand.
- The siren with power of l50watts 200watts 300watts and400Watts has the ability to broadcast two tones at the same time when connecting with two speakers in two channels.
- With light control function to match any version of lightbar supplied from Senken
- Three outputs of Wail 2,lampl and lamp2 could be programmed to be one output.one button controls 3 functions then be realized to enable operation more conveniently
- Hom output could be independently connected to vehicle steer,conveniently for driver to operate the hom tone when needed.
Technical parameter
| Model | L (mm) | W (mm) | H (mm) | Rated Voltage | Rated Power | Rated Impedance | Main Functions | Main Functions |
| CJB80R | 149 | 115 | 55.5 | DC12V/ 24V | 80W | 8Ω | Phase, Tool, Yelp, Hi-Lo, Wail-1, Wail-2, Manual, Radio, Horn, | 107-117dB |
| CJB100R | 100W | 8Ω/11Ω | 115-120dB | |||||
| CJB150R | 150W | 6Ω | 117-121dB | |||||
| CJB200R | 200W | 6Ω | 118-124dB | |||||
| CJB150R1 | 245 | 150W | 8Ω+8Ω | 117-122dB | ||||
| CJB200R1 | 200W | 8Ω+8Ω | 111-124dB | |||||
| CJB300R1 | 300W | 6Ω+6Ω | 110-120dB | |||||
| CJB400R1 | 400W | 6Ω+6Ω | 112-124dB |
