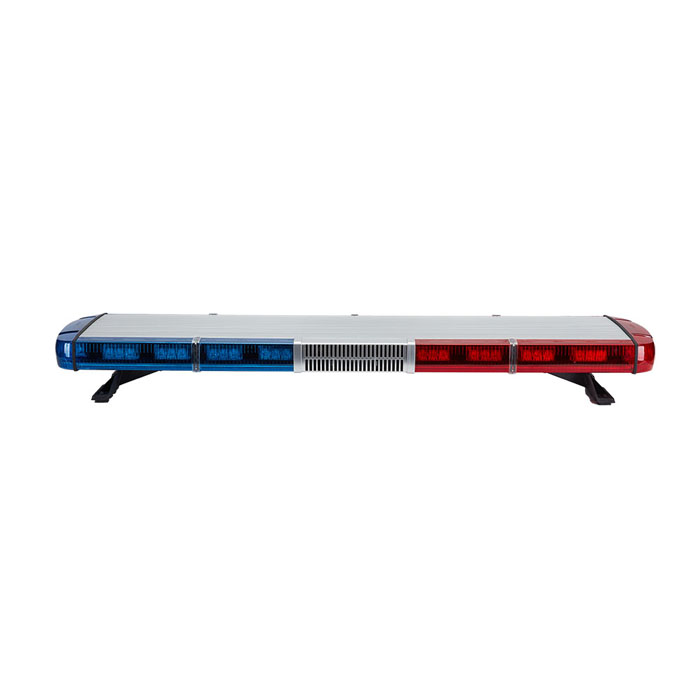

TBD290000 Series Lightbar
Product Description
Feature
- Low profile aluminium extrusion structur gives the lightbar a light weight as well as high intensity .
- The excellent vibration resistance , low wind obstruction and high anti-impact performance enables a smooth passing through of the vehicle in complicated driving conditions .
- Both Gen3 or 5mm LED modules are available for lightbar configurat
- Light sources within high powered LEDs (alternate light source:GEN1 LEDs).
- ion to satisfy different consumers.
- Flash pattern can be customized based on different warning demand.
- Choices with speraker or without spearker wiht the lightbars.
- With newest led technology and optical system ,360 degree visibility is available by applying fresnel lenses all round the lightbars.

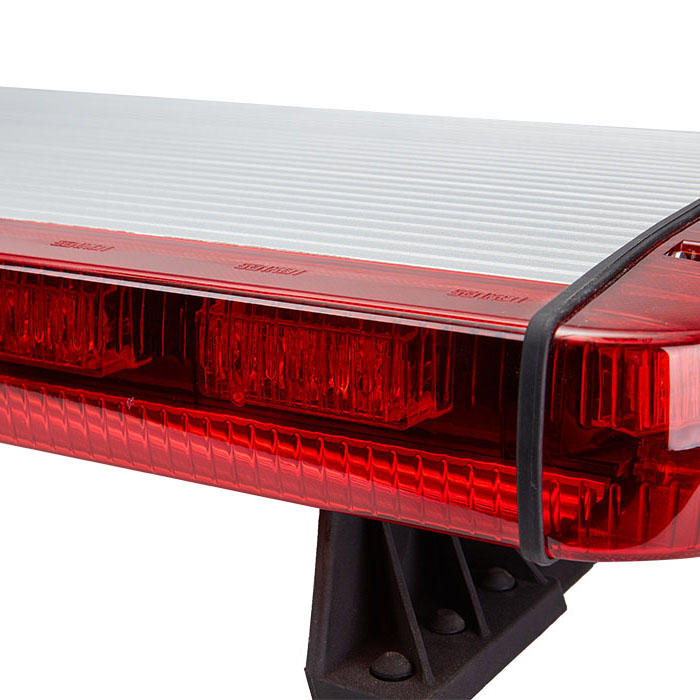

- Excellent repairable structure,the individual light head can be replaced without taking apart whole body which will significantly save the maintenance cost.
- Customizable lightbar size could be realized by adding/cutting standard sections of 20cm each.
- Optional color for LED or lens cover from red ,blue ,amber or clear.
Technical Parameter
| Model | L,W,H(mm) | Net weight | Power | Speaker in the middle | Major light sources |
| TBD295074 | 700,309,137 | 7.2KG | 50W | Not applicable | 14Leds |
| TBD295103 | 1000,309,137 | 11KG | 60W | Not applicable | 16Leds, 2Halogens |
| TBD295104 | 1000,309,137 | 11KG | 60W | Not applicable | 16Leds, 2Halogens |
| TBD295113 | 1050,309,137 | 11.5KG | 65W | Not applicable | 20Leds, 2 Halogens |
| TBD295121 | 1200,309,137 | 15.5KG | 70W | 100W,150W | 24Leds |
| TBD295122 | 1200,309,137 | 15.5KG | 70W | 100W,150W | 24Leds |
| TBD295123 | 1200,309,137 | 12KG | 70W | Not applicable | 26Leds |
| TBD295124 | 1200,309,137 | 12KG | 70W | Not applicable | 26Leds |
