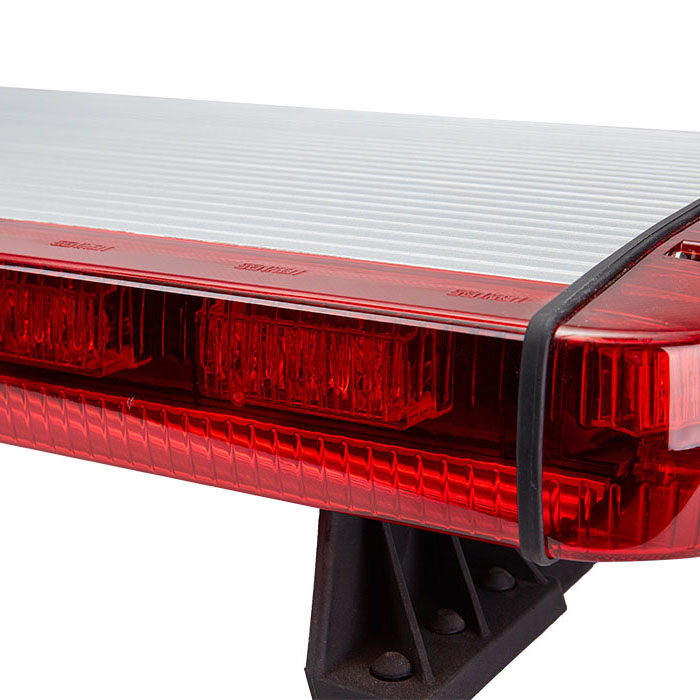

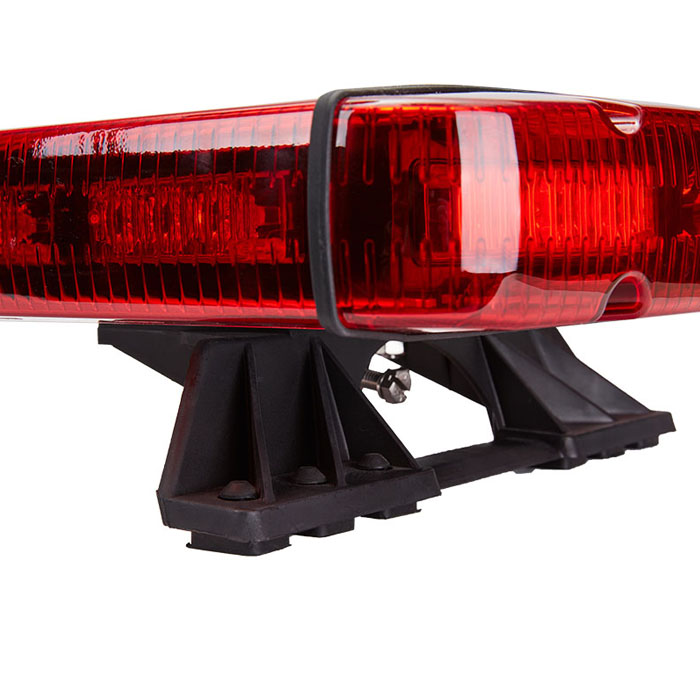

SENKEN TBD290000 Series Lightbar
Features
·Low profile aluminum extrusion structsure gives the lightbar a light weight as well as high intensity;
·The excellent vibration resistance, low wind obstruction and high anti-impact performance enables a smooth passing through of the vehicle in complicated driving conditions;
·Both Gen3 or 5mm LED modules are available for lightbar configuration to satisfy different consumers for luxury or economical demand on LED lightbars;
·Flash pattern can be customized based on different warning demands;
·There are choices for this lightbar with built in speaker and without speaker;
·With newest LED technology and optical system, 360 degree visibility is available by applying fresnel lenses all round the lightbar.
·Excellent repairable structure, the individual light head can be replaced without taking apart whole body which will significantly save the maintenance cost;
·Customizable lightbar size could be realized by adding/cutting standard sections of 20cm each;
·Optional color for LED or lens cover from red, blue, amber or clear white.
Technical Parameter:
| Model | L(mm) | W(mm) | H(mm) | Net weight | Working voltage | Power | Controller | Matched siren options | Speaker in the middle | Color Options | Major light sources | |
| LED | Halogen | |||||||||||
| TBD295074 | 700 | 309 | 137 | 7.2KG | DC12V | 80W | DKQ-H01 | 100W | Not applicable | Red,Blue, Amber,Clear | 14 | |
| TBD295103 | 1000 | 11KG | 100W | 16 | 2 | |||||||
| TBD295104 | 1000 | 11KG | 100W | 16 | 2 | |||||||
| TBD295121 | 1200 | 15.5KG | 130W | 100W/150W | 24 | |||||||
| TBD295122 | 1200 | 15.5KG | 130W | Not applicable | 24 | |||||||
| TBD295123 | 1200 | 12KG | 140W | 26 | ||||||||
| TBD295124 | 1200 | 12KG | 140W | 26 | ||||||||
