Product Description

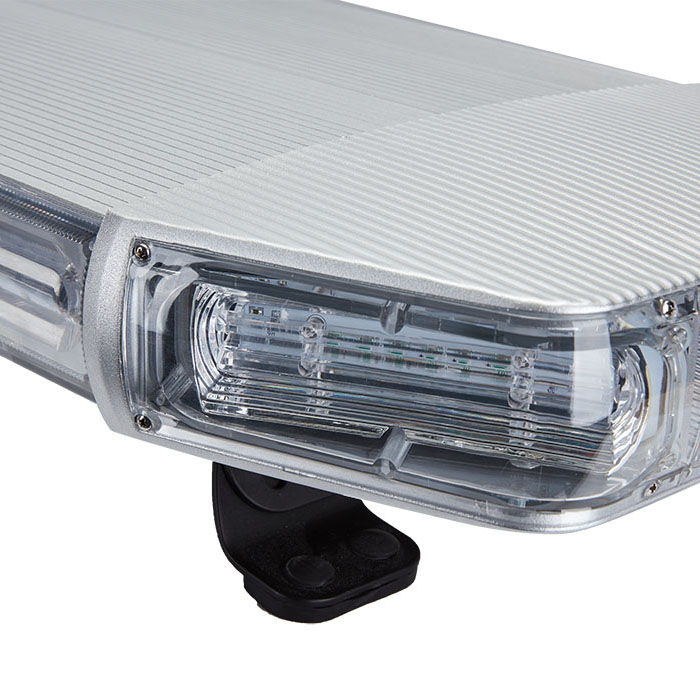

Senken high power 12v LED lightbar
TBD335124 is the lastest emergency warning lightbar, adopting high power Gen 3 LEDs as light sources with unique appearance, compact structure, convenient operation and diversified flash patterns. With superior circuit design, its characteristics are high brightness, low working current, easy installation and long service time. it is specially designed to assist all typed of emergency vehicles. Users can easily find out and confirm the flashing mode needed by special indication.
Features;
- Low-profile aluminum body with compact structure and excellent heat dissipation.
- 22 Generation 3 LED light heads with extreme light brightness.
- Unique self-contained reflectors with excellent light condensation at wide effective view angles.
- 13 regular flash patterns and 4 traffic advisor patterns selectable by various wirings at terminal blocks.
- Colors: red, blue, amber and white (optional).
- Available in various lengths according to customer requirements.
Parameters:
Working voltage:DC10V-DC16V
Lighting max power:72W
Flash pattern: 15
Light Bar weight:9.05Kg
The operating temperature:-40°C~+55°C
Colour options: Red-Blue-White-Amber
Mounting:Magnet
| Model | L(mm) | W(mm) | H(mm) | working voltage | speaker in the middle | color options | working current | major light sources |
| TBD335124 | 1200 | 310 | 155 | DC12V | Not applicable | Red,Blue,Amber,White | 10A(Max) | Led(22) |
