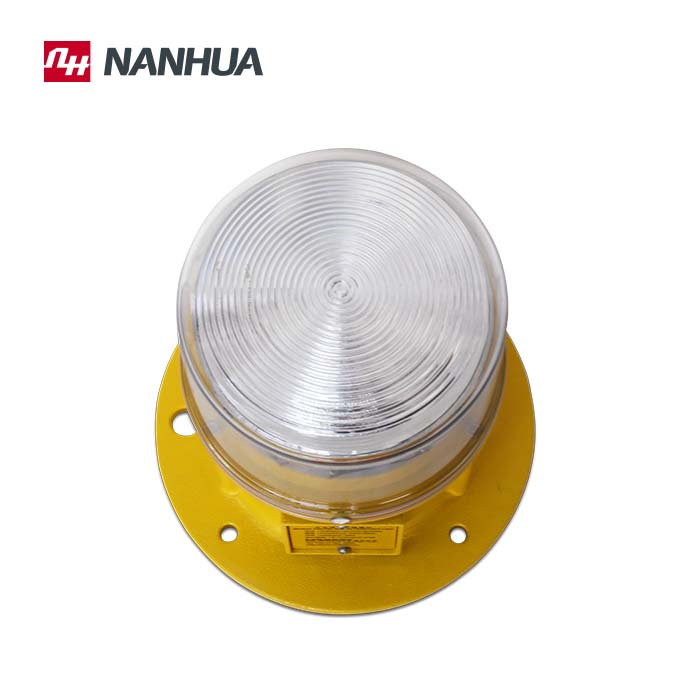

NANHUA LM101 led obstruction warning lights/light aircraft for sale
LM101 Medium intensity obstruction light for marking Towers (Telecom, GSM), Smokestacks, Buildings and any other potentially hazardous obstructions to air traffic with a steady burning red safety light.
This product is developed based on ABC-7M medium light, and the mounting style for this product has been changed to flange type, and compared with ABC-7M, this product has more functions, which improves the product performances.
The enclosure of ABC-7M is made of die casting aluminum with powder coated finish, with the advantages of light weight, waterproof, shockproof and corrosion resistant. Self-contained wiring compartment, ease of mount. Light source consists of external long life LEDs, to ensure maximum life of the product.
| Description | Parameter |
|---|---|
| International standard | ICAO(Annex 14)medium intensity aviation obstruction light standard and FAA-L864 |
| Supply voltage | DC48V/AC200-240V(other voltage can be customized) |
| Frequency | 50Hz ~ 60Hz |
| Power consumption | 30W(Steady) |
| Light source power | 30W |
| Flashing rate | Adjustable(20~60times/min,30times/min in default) |
| Flashing duration | 150±20ms |
| Intensity | 2000±25%cd |
| Ambient temperature | -40°C ~ +70°C |
| Horizontal degree | 360° |
| Vertical degree | 3°Min |
| LED lifetime | ≥80,000 hrs |
| IP Protection | IP65 |
| Visual distance | >14.5Km (AT=0.85) |
| Weight | 4.5Kg |
| Dimension | 250mm(D) *273mm(H) |
| Material | Base:Aluminum alloy,Housing:PC,Reflector:ABS,vacuum plating |
Functions & Features-- NANHUA LM101 led obstruction warning lights/light aircraft for sale
- Modular design and meets optics standard, compact size and high efficiency.
- Based on LED technology
- Extremely reliable - major maintenance cost saving
- Resistant to shock and vibrations
- Corrosion resistant lamp& housing
- Self-contained wiring compartment - eliminates additional boxes.
- Base material-- die casting aluminum LM6
- Lamp housing –Polycarbonate, with good anti-impact strength, thermal stability, high transmittance
- Reflector - ABS
- Outer sealing material—waterproof seal gasket
- Combustibility rating : UL94V0
- Aviation red type
Wiring-- NANHUA LM101 led obstruction warning lights/light aircraft for sale
- Verify whether the power cables are well connected before power on
- Unfasten two screws fixed on the nameplate and then remove the nameplate panel
- Insert the power cable from the gland box and then connect them to the corresponding terminals inside the lamp body
Installation and operation
- Secure the light on a smooth surface which has enough strength, if there is no mounting surface, we can customize special mounting bracket as request.
- When installation, please leave the photoelectric sensoring top away the nearby light source, at the same time, ensure the photocell will not be covered by the near object.
- Make sure the power supply can match with the rated power of light before connecting.
- Unfasten two screws fixed on the nameplate and then remove the nameplate panel.
- Insert the power cable from the gland box and then connect them to the corresponding terminals inside the lamp body.
- Check whether the power cables are connected correctly before power on.
Notice-- NANHUA LM101 led obstruction warning lights/light aircraft for sale
- Check whether the power cables are connected correctly before power on
- Temperature rise inside the control box is normal phenomenon
- Please do not open any components inside by yourself
- This product is a sealed structure; Should not be tampered with by anyone other than registered installer
Product File-- NANHUA LM101 led obstruction warning lights/light aircraft for sale
- Model: LM101
- On Stream Date: Sept. , 2010
- Applications: High building, tower, crane, high chimney, lighthouse, high voltage cable tower, oil well, etc.
- Standard: MH-T 6012-1999; ICAO Annex 14; FAA-L864
- Certificate: CE certification
- Improve Records:
- Fault Records:
- Quantity/Delivery Day:
Order details-- NANHUA LM101 led obstruction warning lights/light aircraft for sale
| Model | Voltage | Work Model | Photocell | Others |
| LM101 | AC or DC | Flashing or Steady burning | With photocell or not |
Please advise us your favor details of the product,we will offer for you ASAP
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
