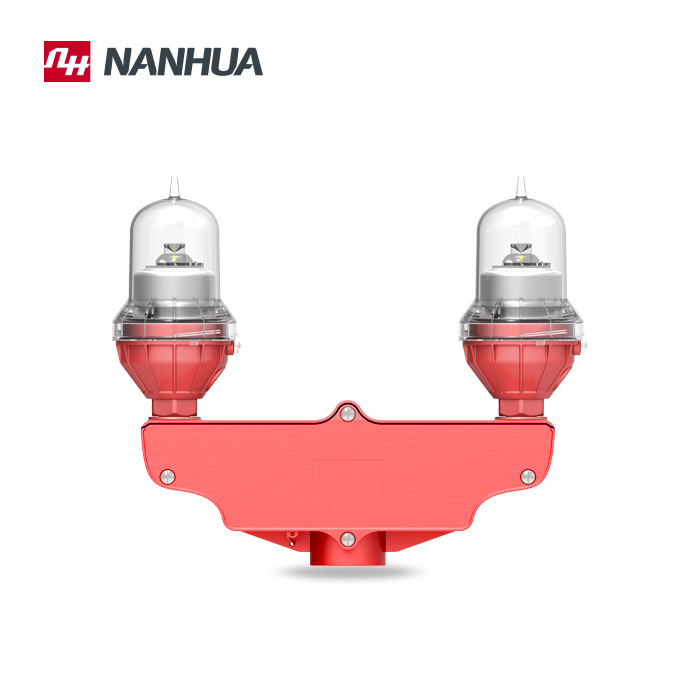

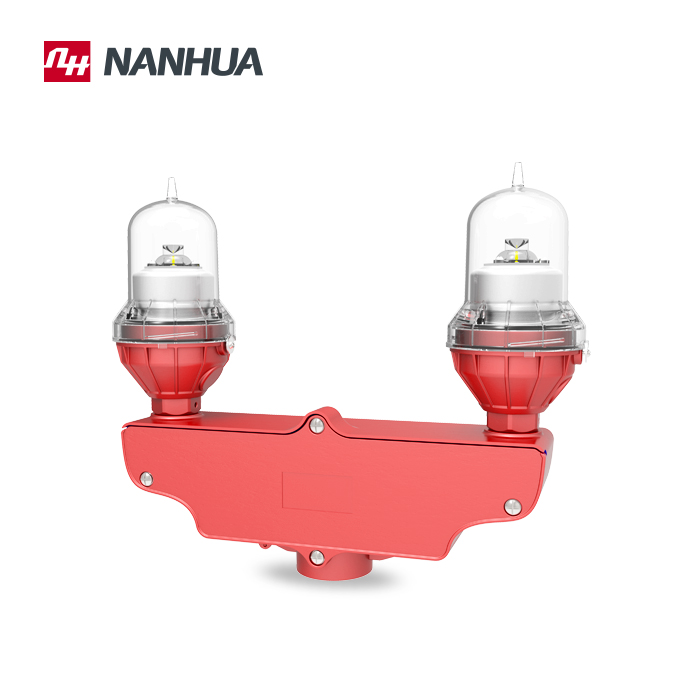

Low intensity obstruction lamp
- ICAO Low intensity Type A&B&E obstacle lights
- FAA L-810& L-810(F) Steady-burning red obstruction light & Flashing red obstruction light
- Application: Telecom tower, Chimneys, Tall buildings, Large bridges, Port machineries and Wind turbines
Main fuctions and features
- Professional photometric lens design, valid keeping light beam in the scope as required.
- Based on latest LED technology,extremely low power consumption, and high efficiency.
- Outdoor use with water proof, wind and corrosion resistance.
- No electromagnetic or audio interference.
- G3/4” screw thread pipe installation, ease of mount.
- EMC compliance. Use constant current driver to extend LED lifespan.
- Built-in photocell (can be customized) and fault alarm signal output.
- Equipped with anti-falling device.
- Steady burning or flashing type optional, flashing rate adjustable.
- External two M20X1.5 Waterproof gland can be customized.
Specification
Standard | Compliant to the ICAO(Aerodromes Annex 14) and FAA-L810 | Vertical degree | ≥10° |
Light source | High luminance LED | Horizontal degree | 360° |
Light color | red(other color can be customized) | Flashing rate | 30FPM/40FPM/60FPM/ steady burning can be adjusted |
Operating voltage | AC110240V/DC48V/DC12V | Flashing duration | 150±20ms |
Power consumption | 4W | LED lifetime | ≥100,000h |
Intensity | ≥32.5cd | Photocell on/off level | 500±50Lux |
| |||
Operating temperature | -40°C ~ +70°C | IP protection | IP65 |
Relative humidity | 10% ~ 95% (no condensing) | Weight | 2.2kg |
Material | Body:aluminum alloy Housing:PC |
|
|
Installation and operation
- Please check the supply voltage does comply with rated voltage of the lamp.
- Screw the lamp on G3/4’pipe of mounting bracket, which should be fixed on a smooth surface with enough mechanical strength. Or you can select our mounting bracket: PJ024, PJ005. Note that installation is fixed and reliable, so as not to fall.
- If the lamp is with photocell, please do not put photocell direct to nearby light. Meanwhile ensure that the photocell is not obstructed by nearby object.
- Open the connection box and connect the power wire, signal wire according to marking. Then remount the connection box.
- Switch on the power after check up. The light begins to work.
Notice
- When the lamp works, temperature rising is normal phenomenon.
- Please do not open any components except professional serviceman.
- The product is a sealed structure. Do not be tampered by anyone other than registered
installer.
