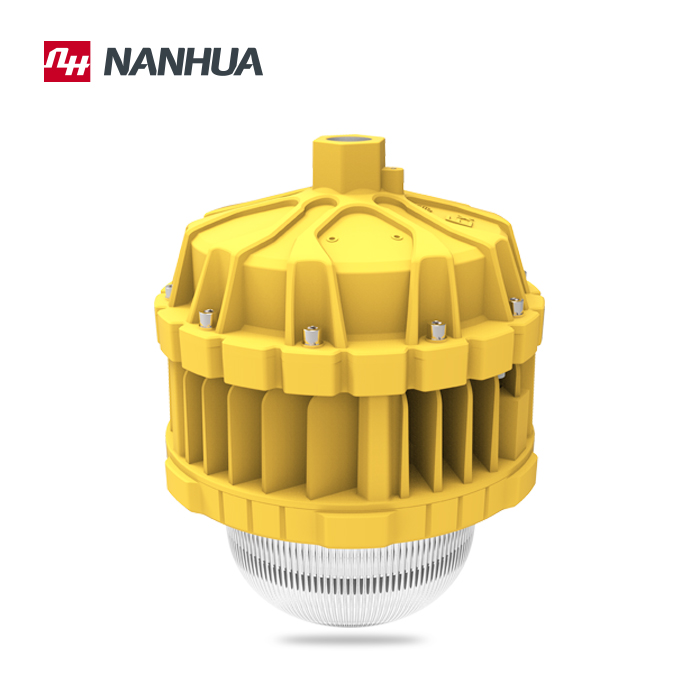

NANHUA LP2X explosion proof flood light
Specification
Standard | IEC60079-0:2011, IEC60079-1:2007-04, IEC60079-31:2008, EN 60079-1:2007, EN 60079-1:2007, EN 60079-31:2009 | ||
Ex-mark | Ex d ⅡC T6 Gb/ Ex tb ⅢC T85℃ Db IP66 II 2 G Ex d IIC T6 Gb/ II 2 D Ex IIIC T85℃ Db IP66 | ||
Light source | LED | ||
Power consumption | 20W/30W/45W/55W | ||
Operating voltage | AC 110-240V (50-60Hz) | ||
Anti-corrosion | C4/WF2 | ||
Cable entry | M25*1.5 cable entry, suitable for ø10 ~ ø14mm² cable ≤2.5mm² conductor | ||
Installation | Bracket mount(A), ceiling mount(X), 30° wall mount(B), 90° wall mount(D), jib mount(G), guardrail mount(H), flange mount(F) | ||
Beam Angle | 260°/180°/120° | Color Temperature | 2700K/6000K |
Operating temperature | 20W, 30W, 45W: -40℃~+60℃ 55W: -40℃~+55℃ | IP Rating | IP66 |
operating humidity | 10%~95% | Weight | 8Kg |
Application
LP2X explosion proof flood light was designed specially to offer the lighting system in a variety of hazardous area applications like oil & gas industry, chemical industry, marine and offshore platform, both indoor and outdoor.,
Applied to gas zon 1 and 2, gas zone IIA and IIB
Applied to dust zone 21 and 22, temperature class T1-T6.
Major functions and features
• Aluminum alloy body.
• PC lens processed by the professional optics design
• Tempered glass lamp housing with the features of 4J energy impact resistance and thermal shock resistance.
• Exd structure design to offer more reliable explosion proof quality.
• Specialized corrosion resistance, vibration resistance and water & dust proof design, both indoor and outdoor application in the harsh conditions
• High duty LED light source to ensure long life operation(100,000hrs) and superb energy saving.
• Constant current design to guarantee the operation stability.
Classification rules
| Explosive air condition | Explosive dust condition | Ex-mark | Zone |
0 | ⅡC |
| Ex d ⅡB T6 Gb | 1,2 |
1 |
| ⅢC | Ex tb ⅢC T85°C Db | 20,21,22 |
e.g.: LP205XL explosion proof flood light ⅡC explosive gas zone light,45W, ceiling mount,Ex-marking:ExdⅡC T6 Gb,Applied zone 1, 2
Installation
Order instruction
Please choose the right model based on the model definition
e.g.: 45W Ex LED Area light(Flood light), bracket mount,
ⅢC (explosive dust condition zone 20), the model is LP215AL
Ex-mark:Ex tb ⅢC T85℃Db IP66.
No lead wire is offered; please order it according on the specifications.
Please refer to the right table to select mount accessories
| No | Name | Remark |
| 1 | LP2X explosion proof flood light | |
| 2 | Bracket | |
| 3 | Stainless bolt | |
| 4 | Flexible connector G¾"(Out)/G¾"(inner) | |
| 5 | Flexible connector G¾"(Out)/M25(inner) | |
| 6 | Junction box G¾"(Out)/G¾" | |
| 7 | Straight pole G¾" | 300mm |
| 8 | 90°bend pole G¾" | 400mm |
| 9 | CC gear turnbuckle | |
| 10 | Chain | 450mm |
| 11 | Expansion screw | |
| 12 | 30°bend pole G¾" | 300mm |
| 13 | Guardrail pole G1 ¼" | |
| 14 | U Clip | Offered by |
| 15 | Junction box G¾"(out)/G¾" | |
| 16 | Flange pole G1 ¼" | Offered by |
