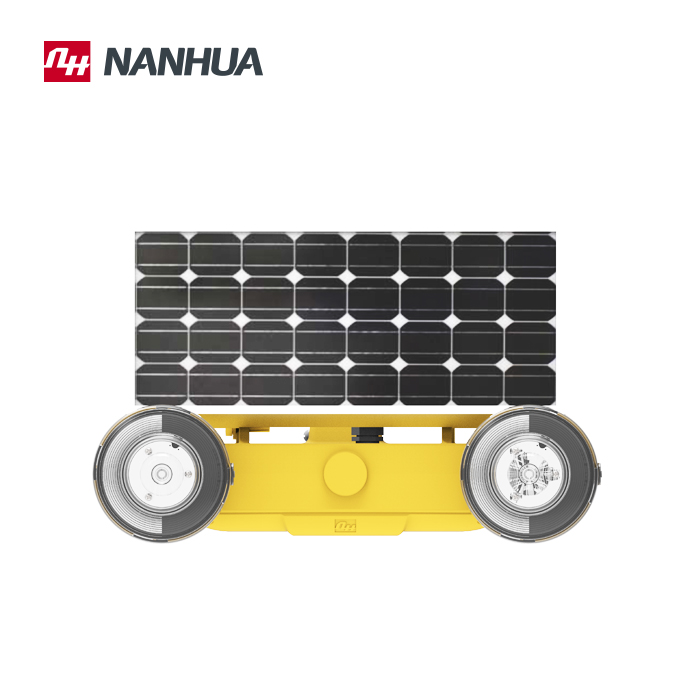

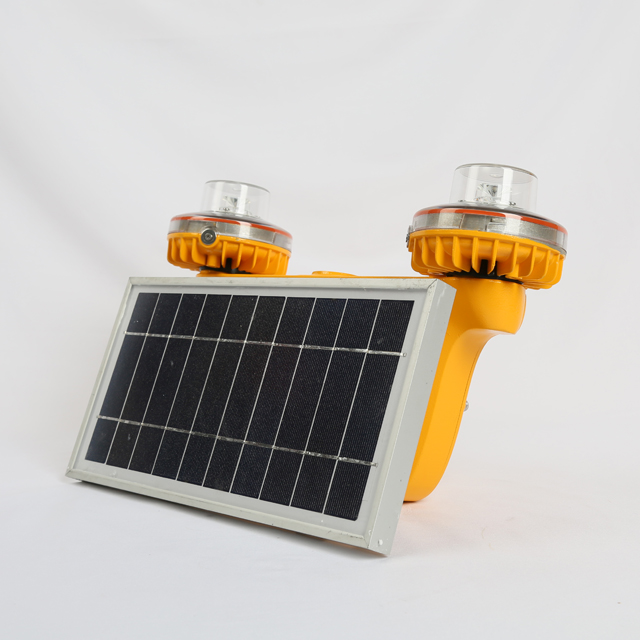

Solar power obstruction lights
Specifications----Solar power obstruction lights
| Description | Parameter |
|---|---|
| Reference Standard | ICAO(Annex 14) Type B low intensity aviation light and FAA-L810 |
| Light source | LED |
| Vertical degree | ≥10° |
| Light color | Red(others can be customized) |
| Horizontal degree | 360° |
| Intensity | ≥32.5cd |
| Flashing rate | 30times/min(Others can be customized) |
| LED lifetime | ≥100,000h |
| On/off level | 500Lux |
| Battery | 3.6V/8AH NiMH |
| Solar panel | 6W/5V or 6W/10V |
| Autonomy | >7 days (at 25°C, if the ambient temperature is lower than 0°C or above 40°C, it will affect the battery discharge) |
| Operating temperature | -40°C~+55°C |
| IP Code | IP65 |
| Humidity | 10%~95% |
| Weight | 3.3Kg |
| Material | Base:Aluminium alloy Housing:PC |
Functions & Features-- NANHUA LT602U Dual solar powered aviation obstruction lights
- Basing on LED and solar charging technology, extremely reliable and low maintenance cost
- Standby light will switch on automatically in case lead light fails.
- Shock-proof and corrosion resistant
- Using normal NiMH battery, easy for replacement
- Lamp housing-Polycarbonate, with bird spike, with good anti-impact strength, thermal stability, high transmittance.
- Combustibility rating:UL94-V0
Mounting dimension(unit: mm)
Installation and Operation-- NANHUA LT602U Dual solar powered aviation obstruction lights
- Mount the solar light in the most suitable place such as under direct sunlight, to ensure its continuous operation.
- Installation:G3/4"pipe mounting.
- For first usage, open the battery switch at the bottom. If store for a long time, close the switch.
- The angle of solar panel is adjustable from 15°~60°. End user can obtain suitable angle by adjusting the installation holes.
- The light is with optically control function. When ambient illumination is below 500lux, it starts to work
Product File-- NANHUA LT602U Dual solar powered aviation obstruction lights
- Model: NANHUA LT602U solar power emergency light
- On Stream Date: MAY, 2013
- Applications: Applying to masts & tower obstacles(Telecommunication, GSM, Radio & TV), tall cranes, chimney, tall buildings, sport stadiums, Light pylons, high voltage towers, wind generation and any other potentially hazardous obstructions to air traffic.
- Standard: ICAO(Annex 14) Type B low intensity aviation light and FAA-L810
- Applying to masts & tower obstacles(Telecommunication, GSM, Radio & TV), tall cranes, chimney, tall buildings, sport stadiums, Light pylons, high voltage towers, wind generation and any other potentially hazardous obstructions to air traffic.
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA"s products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Our Philosophy
NANHUA believes in a simple philosophy. We focus on providing the best products and service to clients and which is the reason for NANHUA’s existence. We believe that successful enterprise and employee fulfillment can only be realized by long-term hard working.
NANHUA pursues broad perspective and believes that imaginative work can change the world. We expect NANHUA to become an internationally competitive firm. Through constant hard work we anticipate a prosperous future.
NANHUA dedicates herself to creating an equal, free and open working environment. We respect each employee’s uniqueness and hope that all of them will work happily in NANHUA.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
