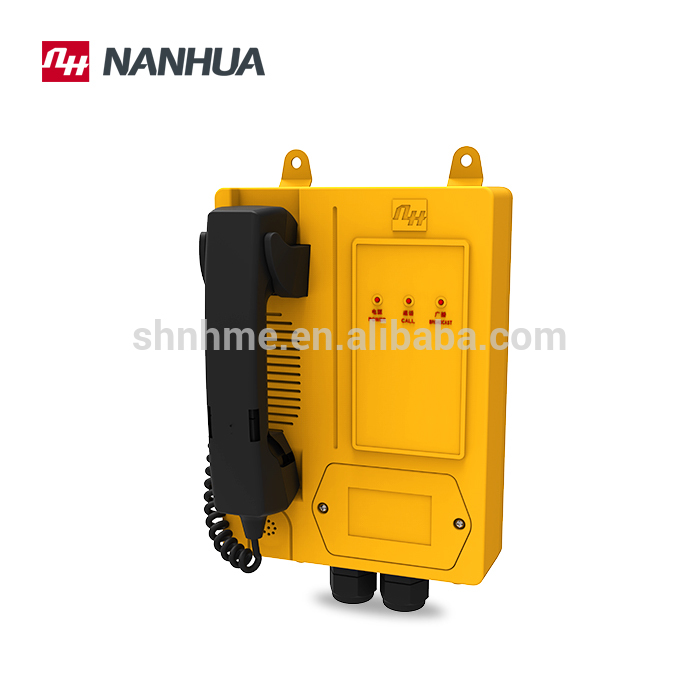

NANHUA DT20Series Dial Digital Intercom & Paging System
Nanhua Electronics" new generation DT Digital intercom with dial panel is the version upgrade based on the DT Digital Intercom, add the dialing function. For environments that need independent communication networks, or have heavy EMI, such as ports, ships, power and chemical plants, steel mills, offshore platforms, cranes, tunnels and coalmines.
DSP high speed data processing and voice compressing coding techniques help solve voice quality problems caused electro-magnetic interference, environment noise, cable distance and multiple phone stations.
DT digital broadcasting intercom & paging’s power supply and communication share the same 2-wire cable. Non-polarity cable connection type, uses central power supply, plug and play, commissioning free, no expertise needed on installation & after-service. All those features can significantly reduce cabling material and installation cost.
Specifications
| Description | Parameter |
|---|---|
| Operating voltage | DC24V |
| Power supply | Central power supply from power supply box |
| Main Power | AC110V±10% / AC220V±10% |
| Communication distance | Set the system power as circle centre, the MAX semi diameter is 400m |
| System netting numbers | Standard for 8 stations MAX:20 stations |
| Running mode | Long-term without stop |
| Working temperature | -30C ~ +70C |
| IP rate | IP65(Outdoor stationDT002) |
| Humidity | 10% ~ 95% (No coagulation) |
| Material/weight | DT201:ABS;1.9kg |
| - | DT202:PC/ABS;3.9kg |
| - | DT203:Cold rolled steel/powder coating;4.9kg |
| - | DT004:Cold rolled steel/powder coating;3.8kg |
Functions & Features
- System uses two-wire non-shielded cable, each core diameter not less than 1.5mm ^ 2, easy and convenient netting.
- Using advanced OFDM jamming technology, electromagnetic compatibility and anti-jamming capability.
- PCM digital processing technology, using lossless data compression, and no sound quality loss, clear coax bright,maintaining original characteristics of the sound quality.
- Any phone can broadcast calls for the entire region, while supporting three-way calling / broadcasting, fast and convenient, multipurpose of one station.
- Supports point-to-point, cascade, distributed network connection.
- The radio volume can be adjusted according to circumstances at the scene and the actual needs.
- Operating voltage DC24V, centralized power supply system power system power supply AC110V ± 10% or AC220V ± 10%.System power supply equipped with a dedicated backup power supply (DC24V battery) terminals, it can automatically switch between main power and backup power.
- Indoor station integrates telephones and speaker, new appearance, simple structure, easy installation and use.
- Outdoor station comes with lock, can work under harsh enviroment.
Product File
- Model: DT201 / DT202 / DT203 / DT004
- Applications: Update to the new version, button board,reliability of buttons improves, easy mounting and ajustment
- Standard: GB/T 15279-2002
- Certificate:Improve Records: None
- CE certified
- Design patent
- Fault Records: Button is easily broken, the buttons are changed to dual buttons to ensure the reliability
- Quantity/Delivery Day: 5pcs/10Days
