Home > Products > CE LW221A 48W led warehouse lighting

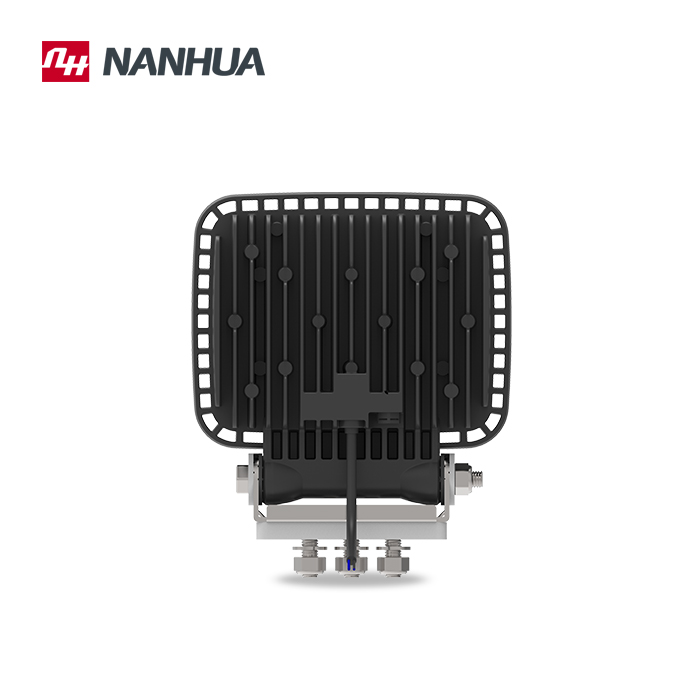

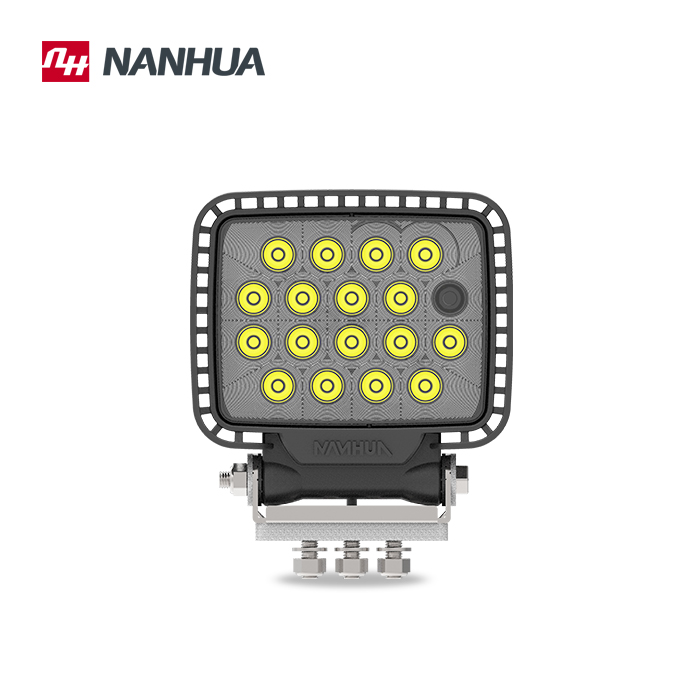

CE LW221A 48W led warehouse lighting
Click on the image to view the original image
Product: views:6CE LW221A 48W led warehouse lighting
Branch: NANHUA
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 19:53
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
DC12V~DC32V
CRI (Ra>):
70
Beam Angle(°):
30
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
CE
Place of Origin:
Shanghai, China
Brand Name:
NANHUA
Model Number:
LW221A
Light Source:
LED
Lamp Luminous Flux(lm):
600
Working Temperature(℃):
-30 - +60
Item Type:
Flood Lights
Color Temperature(CCT):
Cool White
Lamp Power(W):
48
Lamp Luminous Efficiency(lm/w):
100
Supply Ability
Supply Ability:
200 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standardcartons
Port
shanghai
Lead Time:
7 working days



Product Description











Application



LED high bay light is applied for the lighting system of various lifting machinery(tyred gantry crane, crawler crane, travelling crane, etc), port machinery (gantry crane, bridge crane, reachstaker, etc), metallurge, chemical industries, mine and marine vessel, etc.





Major functions and feature



 •  Based on engineering vehicle lighting technology, high power LED light source, it features high luminance, low power consumption and long lifetime.

• Aluminum body features excellent heat emission, anti oxidation ability for long term stable operation.

•  Sealed structure, excellent waterproof and vibration resistance capacity

•  180° mounting angle, come with cable, convenient for the cable connection between lamps





Specifications



Operating voltage

AC100V-220V

Lifetime

≥50,000 hrs

Power consumption

48W

Color temperature

5500K-6000K(Cold White)

<2700K (Warm White)

Operating temperature

-30 ~ +60

IP rate

IP65

Humidity

10% ~ 95% (no coagulation)

Weight

1.8kg

Material

Len: PC  Body:aluminum





Installation



•To check the power supply voltage is same as the nominal voltage, connect the lead wire to L,N,

•Fix the lamps to the mounting surface which has enough mechnical strengthen with M10 screws. The mounting angle of the bracket is adjustable within 180°

• Comes with one lead wire to seperately connect the positive and negative of the power supply

• The lamp is lit once powered on.

Note

 • Do not reversely connect the power supply

• Do not use it until the bracket and lamps are screwed tightly

• It is normal that the lamp has the temperature rise.









Company Information







Nanhua (Shanghai) Electronics located in Shanghai, China was founded in 1990, with its registered capital RMB 5,000,000, a factory of 5000 square meters. Up to September 2012, 239 staff , there are 38 research personnel and covers 16.6% of the staff. Nanhua always keep the strict attitude on researching and controlling quality. Nanhua got the ISO9001 and CSQA quality authentication.


In 2011, annual sales is RMB 60.1 Million, we introduced the external audit to supervise our internal finance, and products expanded to Industrial Light. LED lighting as one of the pronoun for energy saving and environment protection and got the approval by customers. At the same year, the annual sales for Industrial Light is up to 13.3 Million. We have cooperated with the global famous wind power manufactures, and LED series lights become the preferred product for wind tunnel lighting.



We researched the LED high-power flood light in 2012,and promote steady performance LF20 Series flood light. Products used in ports, docks , mines, squares, andlarge workshops. Contrast with the same products, it has the advantage on quality and energy saving.



In 2014,NANHUA with a factory of 6000 square meters, 283 staffs till JAN of 2014 including 37 in R&D center, which is ISO9001 quality authentication certified.
