LP1X IECEx led lighting ATEX Application
LP1X ATEX gas station led lights was designed specially to offer the lighting system in a variety of hazardous area applications like oil & gas industry, chemical industry, marine and offshore platform, both indoor and outdoor.,
Applied to gas zon 1 and 2, gas zone IIA and IIB
Applied to dust zone 21 and 22, temperature class T1-T6.
LP1X IECEx led lighting ATEX Major functions and features
- Aluminum alloy body.
- PC lens processed by the professional optics design
- Tempered glass lamp housing with the features of 4J energy impact resistance and thermal shock resistance.
- Exd structure design to offer more reliable explosion proof quality.
- Specialized corrosion resistance, vibration resistance and water & dust proof design, both indoor and outdoor application in the harsh conditions
- High duty LED light source to ensure long life operation(100,000hrs) and superb energy saving.
- Constant current design to guarantee the operation stability.
Specifications
Standard | IEC60079-0, IEC60079-1, IEC60079-31, EN 60079-0:2009, EN 60079-1:2007, EN 60079-31:2009 | ||
Ex-marking | Ex d IIBT6 Gb / ExtbⅢC T85℃ Db IP66 II 2 G Ex d IIB T6 Gb / II 2 D Ex tb IIIC T85℃ Db IP66 | ||
Light source | LED | ||
Power consumption | 43W/55W/70W/ 85W/ 100W | ||
Operating voltage | AC 110-240V (50-60Hz) | ||
Anti-corrosion | C4/WF1/WF2 | ||
Cable entry | M25*1.5/NPT 3/4”cable entry, suitable for ø10~ ø14mm² cable ≤2.5mm² conductor | ||
Installation | Bracket mount, ceiling mount, 30° wall mount, 90° wall mount, jib mount, guardrail mount, flange mount | ||
|
| ||
Operating temperature | -30℃~+60℃ | IP rating | IP66 |
Humidity | 10%~95% | Weight | 8Kg |
LP1X IECEx led lighting ATEX Model Selection
| Explosive air condition | Explosive dust condition | Ex marking | Zone |
0 | ⅡB |
| ExdⅡBT6 Gb | 1, 2 |
1 |
| ⅢC | ExtbⅢC T85℃ Db IP66 | 21, 22 |
e.g.:LP101X IECEx led ATEX light ,ⅡB explosive dust condition,ceiling mount,ATEX mark:Ext ⅢCT6 Db,Applied zone 1,2
LP1X IECEx led lighting ATEX Product File

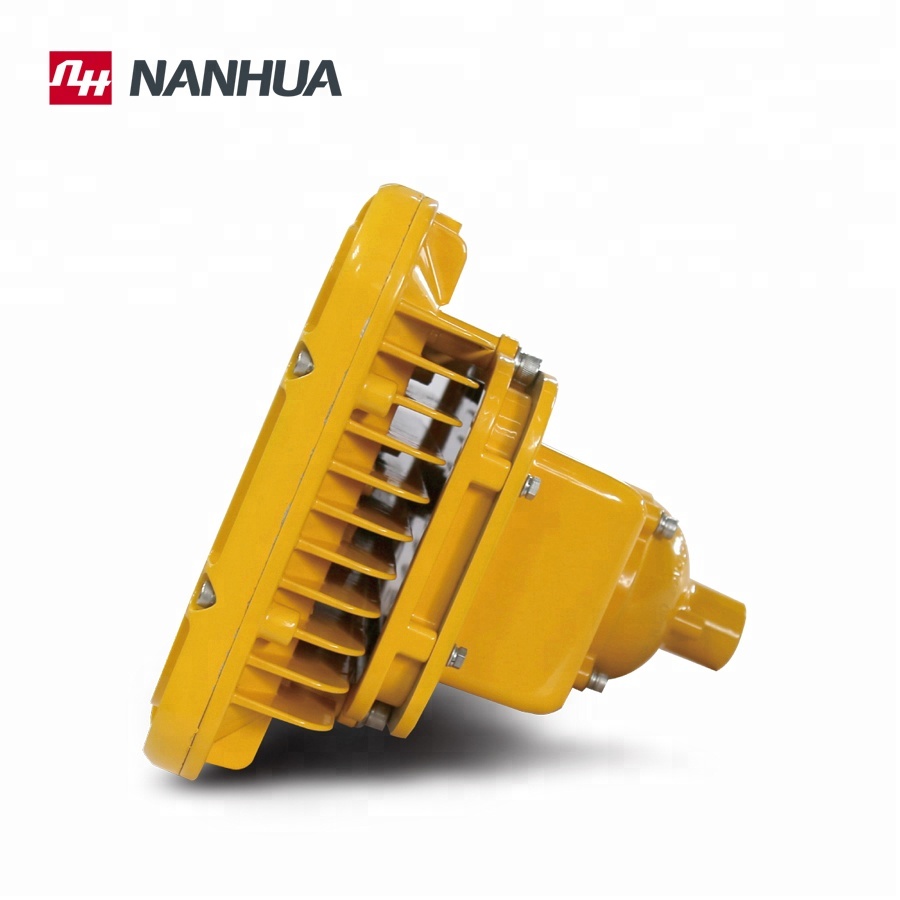

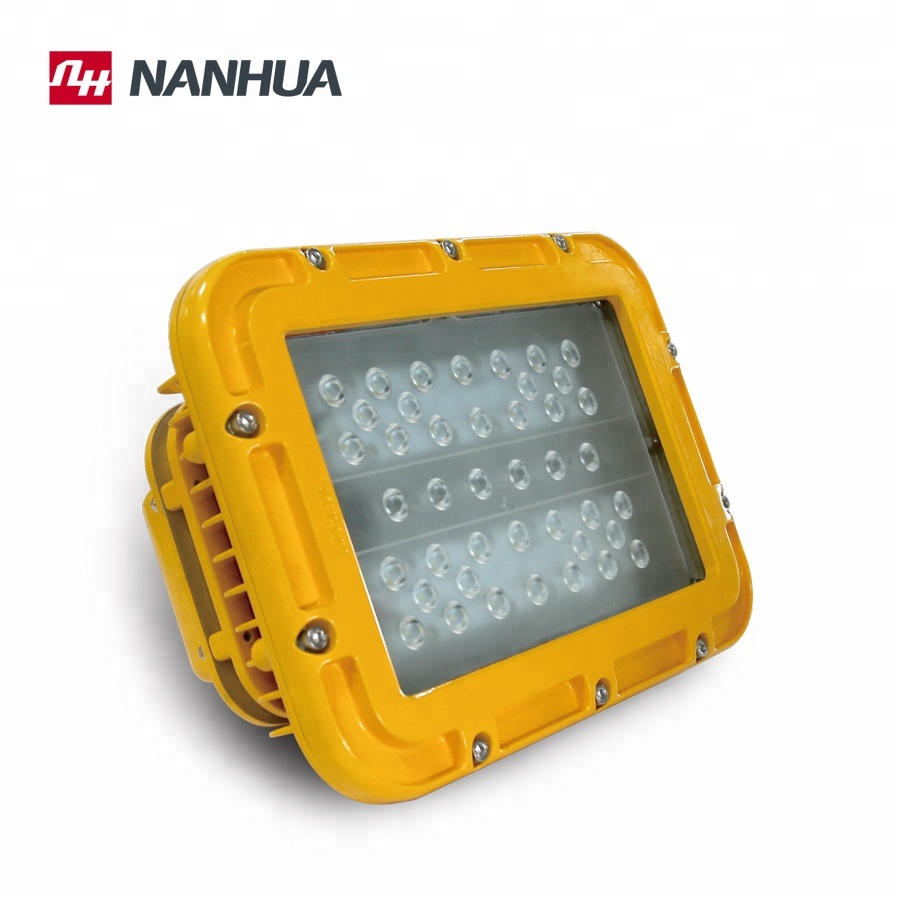

Model: : LP1X ATEX gas station led lights
Applications: Ex LED Area light was designed specially to offer the lighting system in a variety of Hazardous Area applications like oil & gas industry, chemical industry, marine and offshore platform, both indoor and outdoor., Also applied to the hazardous areas, ATEX Zones 1 & 21 and 2 & 22. Ex ⅡA and Ex ⅡB, T1-T6.
Standard:
Certificate:Explosion-proof
LP1X IECEx led lighting ATEX Order instruction
1.Please choose the right model based on the model definition
e.g.: 70W, jib mount, IIIC (explosive dust condition zone 21), the
model number is LP113G Mark: Ex tbⅢC T85℃ Db IP66
2.No lead wire is offered, please order it according to the specifications
3.Please refer to the right table to select mount accessories
No | Name | Remark |
1 | LP1X IECEx led lighting ATEX |
|
2 | Bracket |
|
3 | Stainless bolt |
|
4 | Flexible connector G¾(Out)/G¾(inner) |
|
5 | Flexible connector G¾(Out)/G¾(inner) |
|
6 | Junction box G¾(Out)/G¾ |
|
7 | Straight pole G¾ | 300mm |
8 | 90°bend pole G¾ | 400mm |
9 | CC gear turnbuckle |
|
10 | Chain | 450mm |
11 | Expansion screw |
|
12 | 30°bend pole G¾ | 300mm |
13 | Guardrail pole G1 ¼ |
|
14 | U Clip | Offered by user |
15 | Junction box G¾(out)/G¾ |
|
16 | Flange pole G1 ¼ | Offered by user |
LP1X IECEx led lighting ATEX Mounting Dimension(Unit:mm)& Model definition
