- Input Voltage(V):
- AC 110-240V
- CRI (Ra>):
- 80
- IP Rating:
- IP66
- Working Lifetime(Hour):
- 100000
- Working Temperature(℃):
- -30 - +60
- Emitting Color:
- Red
- Certification:
- CE, EMC, LVD
- Place of Origin:
- Shanghai, China
- Brand Name:
- NANHUA
- Model Number:
- LP102
- Light Source:
- LED
- Products name:
- Explosion proof LED warning light
- Standard:
- MH/T 6012-1999, FAA1505345-43G, MH5001-2013
- Light source:
- LED
- Power consumption:
- 9W
- Operating voltage:
- AC 110-240V
- IP Class:
- IP66
- Anti-corrosion:
- C4/WF1/WF2
- Operating temperature:
- -30°C~+60°C
- Humidity:
- 10%~95%
- Weight:
- 8Kg
- Item Type:
- Explosion-proof Lights
- Color Temperature(CCT):
- Cool White
- Supply Ability:
- 500 Piece/Pieces per Month
- Packaging Details
- standard export package
- Port
- Shanghai
- Lead Time:
- 10 days

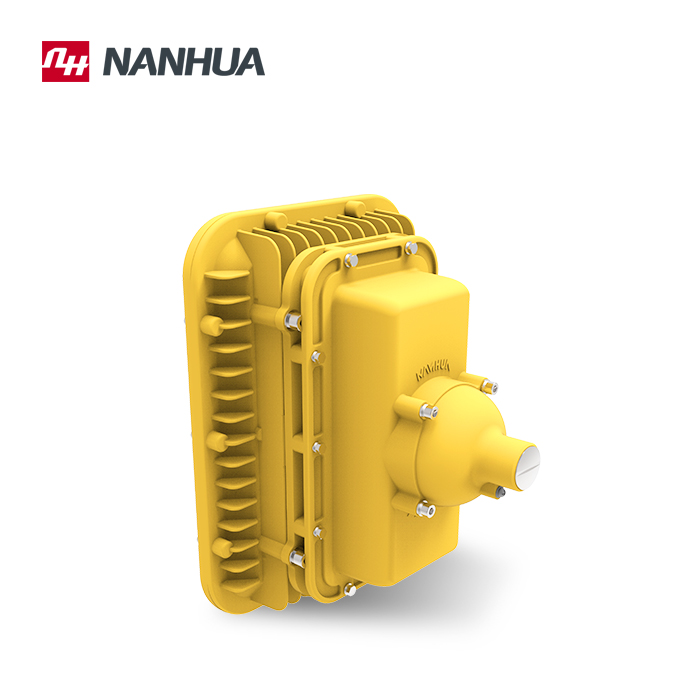

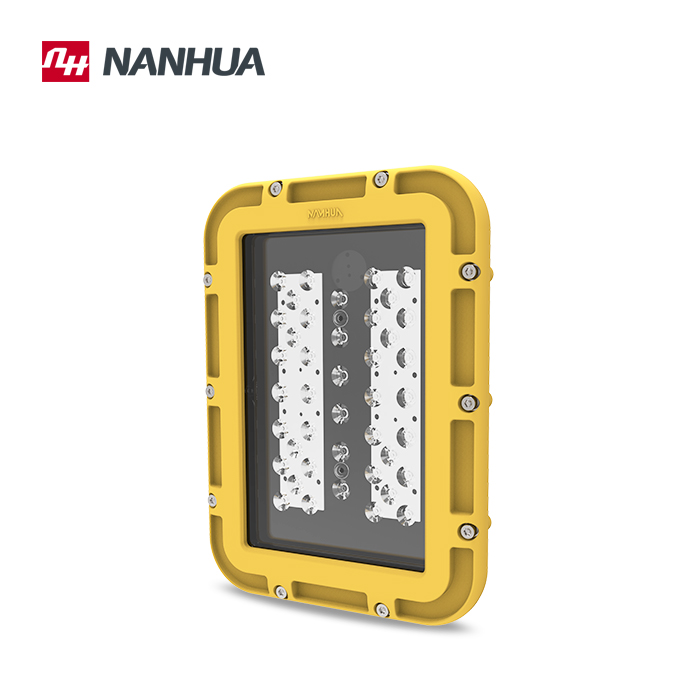

Ex-proof medium intensity aviation obstruction light
Application
Ex LED Area light was designed specially to offer the lighting system in a variety of hazardous area applications like oil & gas industry, chemical industry, marine and offshore platform, both indoor and outdoor.,
Applied to gas zon 1 and 2, gas zone IIA, IIB and IIC
Applied to dust zone 21 and 22, temperature class T1-T6.
Major functions and features
• Aluminum alloy body.
• PC lens processed by the professional optics design
• Tempered glass lamp housing with the features of 4J energy impact resistance and thermal shock resistance.
• Ex d structure design to offer more reliable explosion proof quality.
• Specialized corrosion resistance, vibration resistance and water & dust proof design, both indoor and outdoor application in the harsh conditions
• High duty LED light source to ensure long life operation(100,000hrs) and superb energy saving.
• Constant current design to guarantee the operation stability.
Specifications
Standard | GB3836.1, GB3836.2, GB12476.1, IEC60079-0, IEC60079-1, IEC60079-31 | ||
Marking | Ex d ⅡC T6 Gb/ Ex tb ⅢC T85℃ Db IP66 | ||
Light source | LED | ||
Power consumption | 9W | ||
Operating voltage | AC 110-240V (50-60Hz) | ||
Anti-corrosion | C4/WF2 | ||
Cable entry | M25*1.5 cable entry, suitable for ø10~ ø14mm² cable ≤2.5mm² conductor | ||
Installation | flange mount (F),bracket mount(A), ceiling mount(X), 180° wall mount(B) | ||
Working condition | Flashing (frequency adjustable) | color | red/yellow/white (optional) |
Operating temperature | -40℃~+60℃ | IP Class | IP66 |
operating humidity | 10%~95% | Weight | 8Kg |
Classification rules
| Explosive air condition | Explosive dust condition | Ex-mark | Zone |
0 | ⅡC |
| Ex d ⅡC T6 Gb | 1,2 |
1 |
| ⅢC | Ex tb ⅢC T85°C Db | 20,21,22 |
